Secure the stationary rail bracket using the provided small screw. Hold the bracket in
■ ■
place and screw through either of the two holes on the bracket.
NOTE: Two #8 x ⁄ " pan head screws are provided; one is a spare.
3
8
Position the Cords and Set Cord Tension
Unwrap the cord from the orange cord organizer.
■ ■
Remove any twists by running a finger between the two cords.
➤ ■
Note that both ends of the cords have a washer to prevent the cords from slipping into the vertical rail.
➤ ■

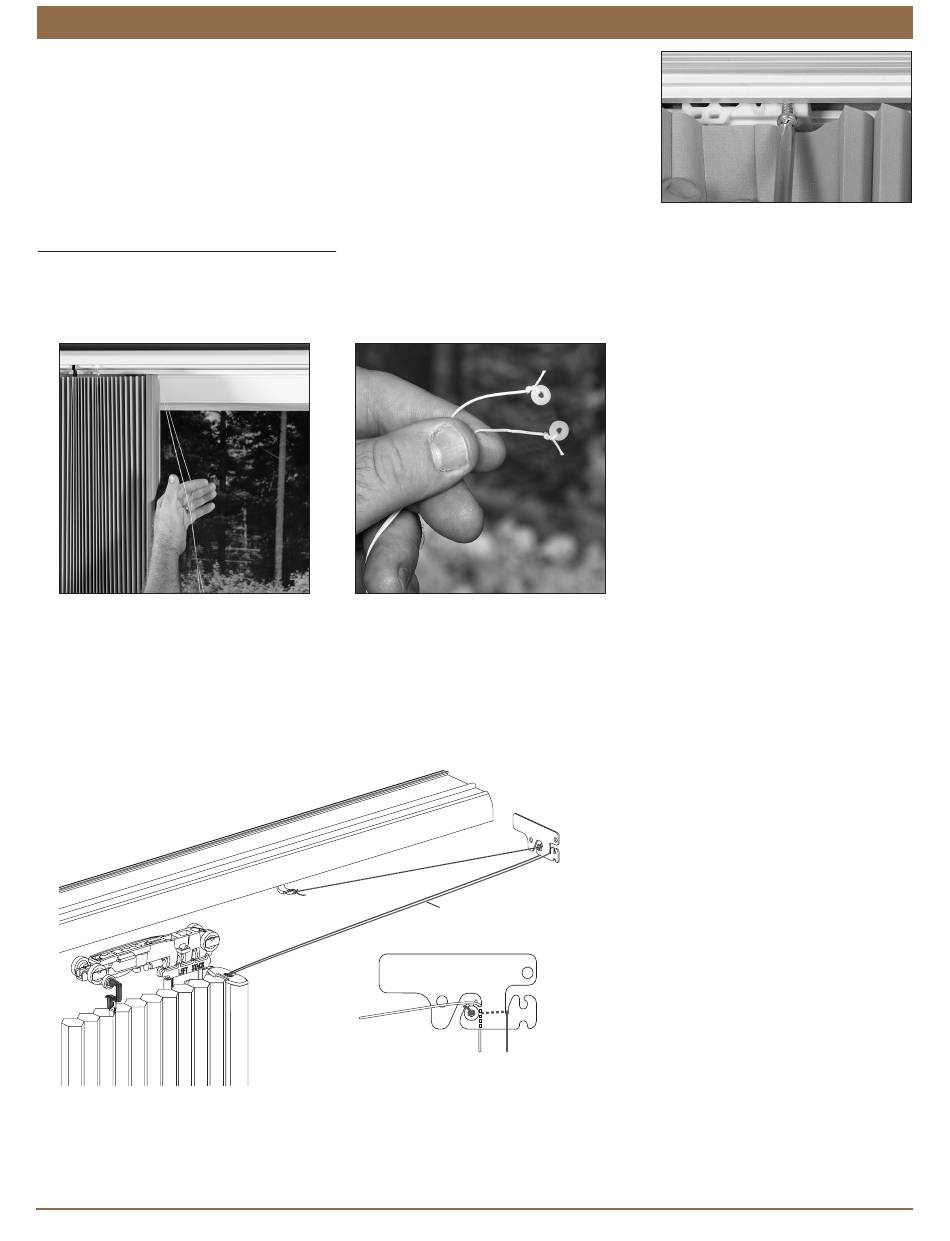

Study the cording diagram below. The cords are connected to the end plate that is opposite the fabric stack. (In the illustration,
■ ■
the two cords are shaded differently to make the routing easier to follow.)
One of the ends with washer is anchored to the end plate at the first slot from the rear.
➤ ■
The washer on the other cord is trimmed off and the end is tied to the cord tensioner. Then that cord is looped around the
➤ ■
second slot from the rear.
IMPORTANT: The top of the looped cord must be the portion of the cord coming from the cord tensioner.
INSTALLATION
INSTALLATION
Cord
Tensioner
End Plate
Rear
Moving
To Cord
Rail
Tensioner
End
Plate
Cord with
Washer
Front
Cord with
Washer
