Summary of Contents for Kirsch Woven Wood Automation III

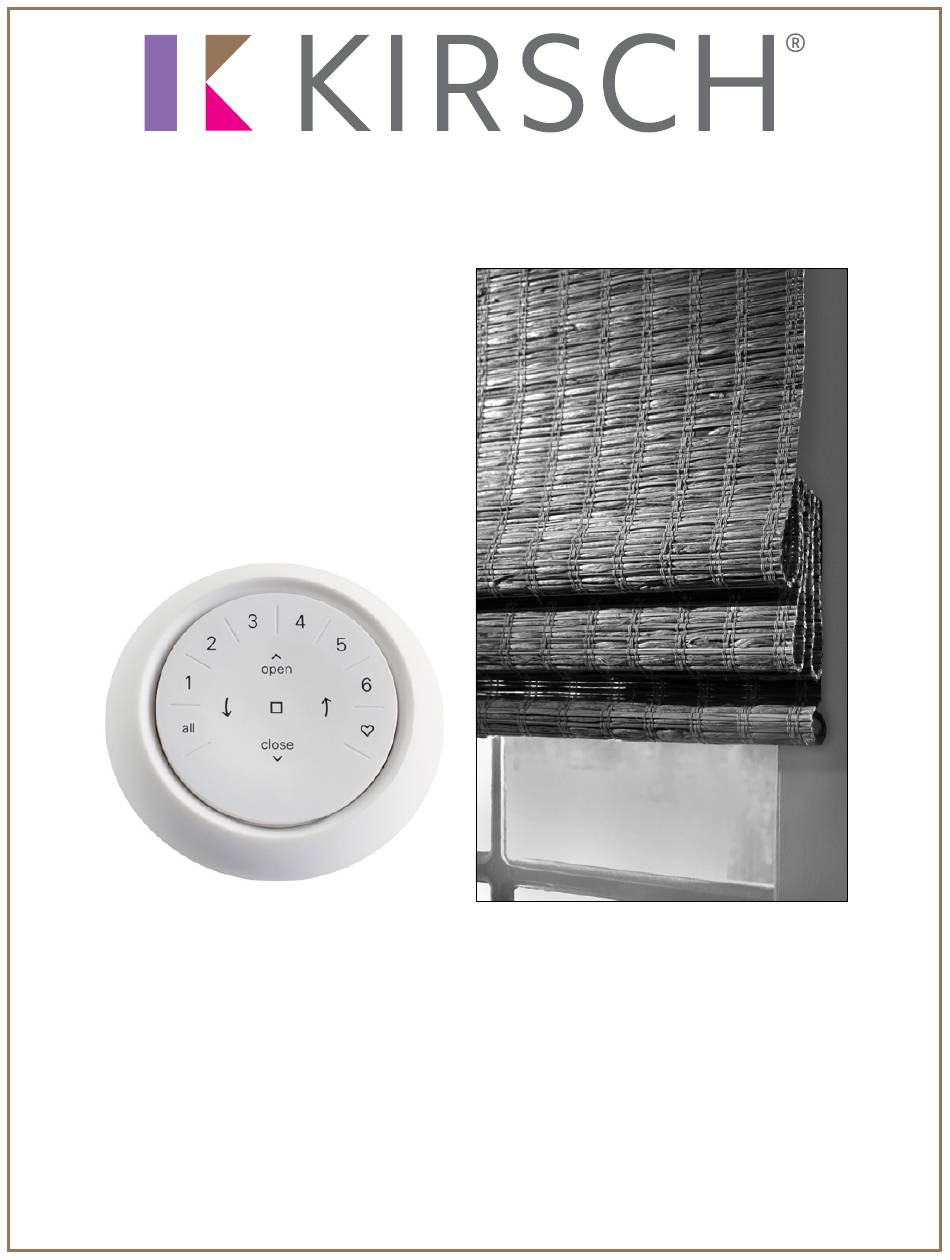

  • Page 1 Woven Wood Collection Automation III Installation Instructions Rev. D 5/3/22...
  • Page 2: Table Of Contents

    CONTENTS GETTING STARTED ..............................3 Product View – Bottom-Up ............................... 3 Tools and Fasteners Needed ............................. 4 Installation Overview ................................ 4 INSTALLATION ................................5 STEP 1 — Install the Brackets ............................5 Mount the Shade Installation Brackets — Inside Mount ....................6 Mount the Shade Installation Brackets —...
  • Page 3: Getting Started

    GETTING STARTED Product View – Bottom-Up NOTE: Top-Down/Bottom-Up shades are not shown (not available in CA). Installation Brackets Not shown: Top-Down/Bottom-Up shades...
  • Page 4: Tools And Fasteners Needed

    GETTING STARTED Thank you for purchasing Kirsch Woven Wood Shades with Automation III. With proper installation, operation, and care, your new ® shades will provide years of beauty and performance. Please thoroughly review this instruction booklet and the enclosed packing list before beginning the installation.
  • Page 5: Installation

    INSTALLATION INSTALLATION STEP 1 — Install the Brackets The number of shade installation brackets required varies with headrail width, as shown in the table. ■ IMPORTANT: A ⁄ " spacer block (provided) is required for outside mount shades using the battery wand clip. A 1" (provided) spacer block is required for outside mount shades using the rechargeable battery wand.
  • Page 6: Mount The Shade Installation Brackets - Inside Mount

    INSTALLATION INSTALLATION Mount the Shade Installation Brackets — Inside Mount Mark 2" in from each jamb. ■ With shades using one or two battery wands, there must be 16" between the edges of the two brackets on the motor end. If ➤...
  • Page 7 INSTALLATION INSTALLATION With Attached Battery Wand — ⁄ " Needed for Rear Clearance ⁄ " Minimum Inside Mount ⁄ " Fully Recessed Mount Bracket Bracket Battery Wand Battery Wand ⁄ " ⁄ " ⁄ " Satellite Battery Pack or 18V DC Power Supply (Optional) ⁄...
  • Page 8: Mount The Shade Installation Brackets - Outside Mount

    INSTALLATION INSTALLATION Mount the Shade Installation Brackets — Outside Mount The standard shade has an attached battery wand requiring spacer blocks to be used with the shade installation brackets. If using an 18V DC Power Supply or satellite battery pack, spacer blocks are not required. Center the headrail over the window opening at the desired height.
  • Page 9: Mount The Brackets - Optional Cornice Valance

    INSTALLATION INSTALLATION Mount the Brackets — Optional Cornice Valance With the optional cornice valance, first the valance headboard is mounted and then the shade installation brackets are mounted to the wall under the headboard. Center the headboard above the window opening at the height to allow enough room for the Valance Valance ■...
  • Page 10 INSTALLATION INSTALLATION Mark the screw holes for the shade installation brackets on the wall underneath the valance headboard. ■ The top of the shade installation brackets must be ¼" below the bottom of the ➤ valance headboard. Mount the end shade installation brackets on the inside of the valance L-brackets. ➤...
  • Page 11: Step 2 - Mount The Battery Wand (If Applicable)

    INSTALLATION INSTALLATION STEP 2 — Mount the Battery Wand (If Applicable) For the headrail-mounted battery wand, battery wand clips and battery wand mount are installed before the shade is installed. Any other power options, the power source will be connected after the shade is installed. Battery Wand Clips Battery Wand Clip Install the Battery Wand Clips...
  • Page 12: Step 3 - Install The Shade

    INSTALLATION INSTALLATION Install the Battery Mount into the Clips From the back of the shade headrail, connect the power cable from the motor side into the socket on the rechargeable battery ■ mount. Align the slots in the battery mount with the battery wand clips. ■...
  • Page 13 INSTALLATION INSTALLATION Cornice Valance (If Applicable) With the bottom of the valance angled away from the valance headboard, align the top of the valance with the top of the ■ valance headboard and press into place. Spread the returns. ■ Rotate the valance into place.
  • Page 14: Step 4 - Connect The Power Source

    INSTALLATION INSTALLATION STEP 4 — Connect the Power Source NOTE: When power is applied to the shade, a blue LED inside the control button housing will flash several times to indicate the shade is ready. Refer to the appropriate page based on your order. ■...
  • Page 15 INSTALLATION INSTALLATION Plug the power cable from the shade into the extension cable. ■ Plug the other end of the extension cableinto the socket in the battery wand. ■ Battery Wand Cover Extension Cable Power Cable from Shade Secure the power supply cable using wire retainers (not supplied). If hiding the cable behind the shade, make sure it does not ■...
  • Page 16: 18V Dc Power Supply

    INSTALLATION INSTALLATION Connect the power cable from the motor side into the power socket on the rechargeable battery mount. ■ NOTE: With longer extension cables, wire retainers (not supplied) are recommended to secure the cable. Battery Mount Extension Power Cable Cable from Shade (If Needed)
  • Page 17: Testing The Shade

    INSTALLATION INSTALLATION Double Connector Power Cable (If Applicable) NOTE: Refer to this section only if you have a double connector power cable. Mount the Battery Wand or Satellite Battery Pack Refer to “Mount the Battery Wand into the Battery Wand Clip” on page 14. ■...
  • Page 18: Operation

    INSTALLATION OPERATION Operating the Automation App and Automation III Remote Syncing and Programming Your Remote Activate the remote by pulling both plastic tabs from the back battery compartment. ■ Download the Automation App for your smartphone or tablet at getshadeapp.com. ■...
  • Page 19 The Automation App is required to program Automation III shades, remotes, and gateways. The App is compatible with Apple® and Android™ smartphones and tablets. For more information regarding setup and operation using the Automation App, refer to https://www.kirsch.com/window-coverings-product-manuals. Automation III Gateway The Automation III Gateway is used to control shades in larger projects as well as integrate Automation III shades with third- party integration systems.
  • Page 20: Resetting The Shade (If Necessary)

    INSTALLATION OPERATION Resetting the Shade (If Necessary) Calibration Reset The calibration reset is used to recalibrate the shade’s travel limits. This action is performed in the Automation App. Select Calibrate Shade in the Advanced Options section of the Shade Settings menu in the Automation App. ■...
  • Page 21: Troubleshooting

    Review the digital support guide for your control device. ■ Refer to the following troubleshooting procedures for specific solutions for your shade. ■ If questions remain, please contact Kirsch Consumer Support at 844-KIRSCH2 (844-547-7242). ® Problem The shade will not fit into the shade installation brackets.
  • Page 22 Battery Wand Press the cap on until it latches. ■ NOTE: Kirsch recommends AA alkaline batteries for use with our ® battery-powered shadings. These will provide more than one year of operation, depending on usage. Lithium and rechargeable batteries are not...
  • Page 23 Solution There are two methods for charging the rechargeable battery wand — the dual charging station or the single charger. CAUTION: The rechargeable battery wand can only be charged with these Kirsch provided charging options. ® Attempting to charge battery wands with an alternative charger may result in permanent damage.
  • Page 24 INSTALLATION TROUBLESHOOTING Problem Rechargeable battery needs recharging (continued) Solution Recharging Via the Single Charger Remove the rechargeable battery wand from the mount, or insert the single charger cable without removing from the shading. Attach the plug adapter to the charger. ■...
  • Page 25: Care

    Vacuuming Use a low suction, hand-held vacuum for more thorough dust removal. ■ Spot-Cleaning Only the following Kirsch Woven Woods fabrics can be spot-cleaned: Campbell ➤ Mason ➤ Mystic ➤...
  • Page 26: Declarations

    Kirsh®, One Duette Way, Broomfield, CO 80020, USA Kirsch hereby declares that the PV34 is in compliance with the essential requirements and other relevant provisions of Electromagnetic Compat- ibility (EMC) Directive 2014/30/EU and Radio Equipment Directive (RED) 2014/53/EU. A copy of the DoC can be obtained online:...
  • Page 27: Child Safety

    INSTALLATION CHILD SAFETY...
  • Page 28: Warranty

    This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. © 2019 Kirsch Custom Window Coverings. All rights reserved. All trademarks used herein are the property of Kirsch or their respective owners. 09/19...
