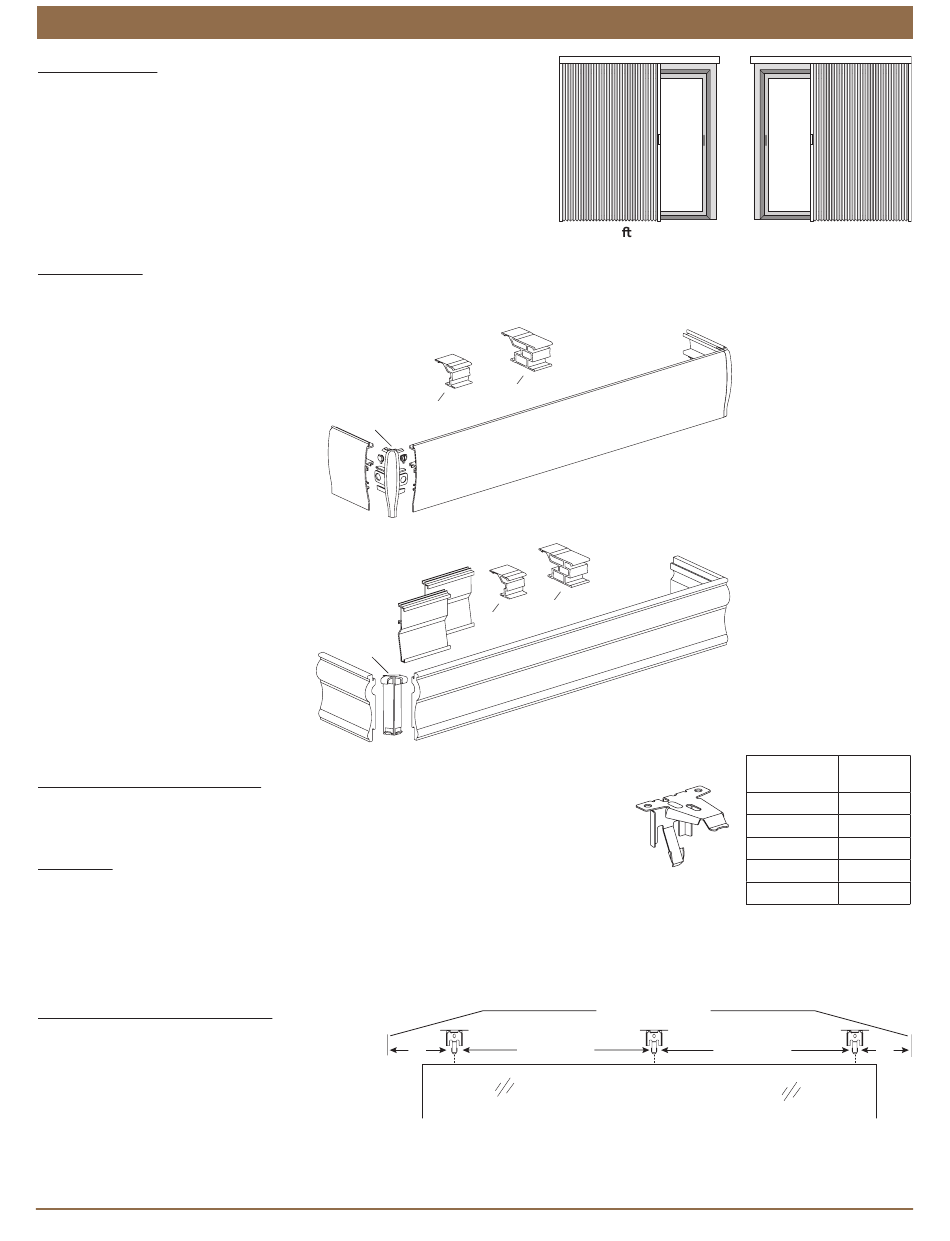

Outside Mount Installation - Kirsch Cellular Shade Collection Installation Instructions Manual

Stacking Design
Determine which vertical cellular stacking design you are installing: left
■ ■
stack or right stack.
If a sliding glass door opens from the right side, a left stack design is best. If
■ ■
the door opens from the left side, a right stack design is best.
Valance Types
Determine the type of valance you are installing with your shade: aluminum or traditional.
■ ■
Installation Brackets Required
The number of installation brackets required varies with headrail width, as shown
■ ■
in the table.
Next Step
Refer to the page below based on your shade mounting type:
■ ■
Outside Mount — Below
➤ ■
Inside/Ceiling Mount — Page 12
➤ ■
Outside Mounts
Mount the Installation Brackets
Center the headrail over the window opening at
■ ■
the desired height. Use a pencil to lightly mark
each end of the headrail.
Alternatively, measure the width of the
➤ ■
headrail and use that width to mark the
headrail end points.
Mark end bracket locations 8" in from each end of the headrail.
■ ■
Mark the locations of any additional brackets, spaced evenly between the two end brackets. Mount into wood whenever possible.
➤ ■
