Installing Discharge Shield (No Conditioner) - MacDon R113 SP Operator's Manual

3. Lift the shield (A) until pins (B) disengage from slots in
support (C).

Installing Discharge Shield (No Conditioner)

Follow these steps to install the shielding on a disc header configured without a conditioner:
1. Position shield (A) until pins (B) engage the slots in
support (C) and bolt holes in shield align with holes (D) in
header.
2. Secure shield (B) to the header with four M16 hex head
bolts (A), nuts, and flat washers.
3. Ensure bolt heads face inboard and torque nuts to
224–298 Nm (165–220 lbf·ft).
215009
MAINTENANCE AND SERVICING

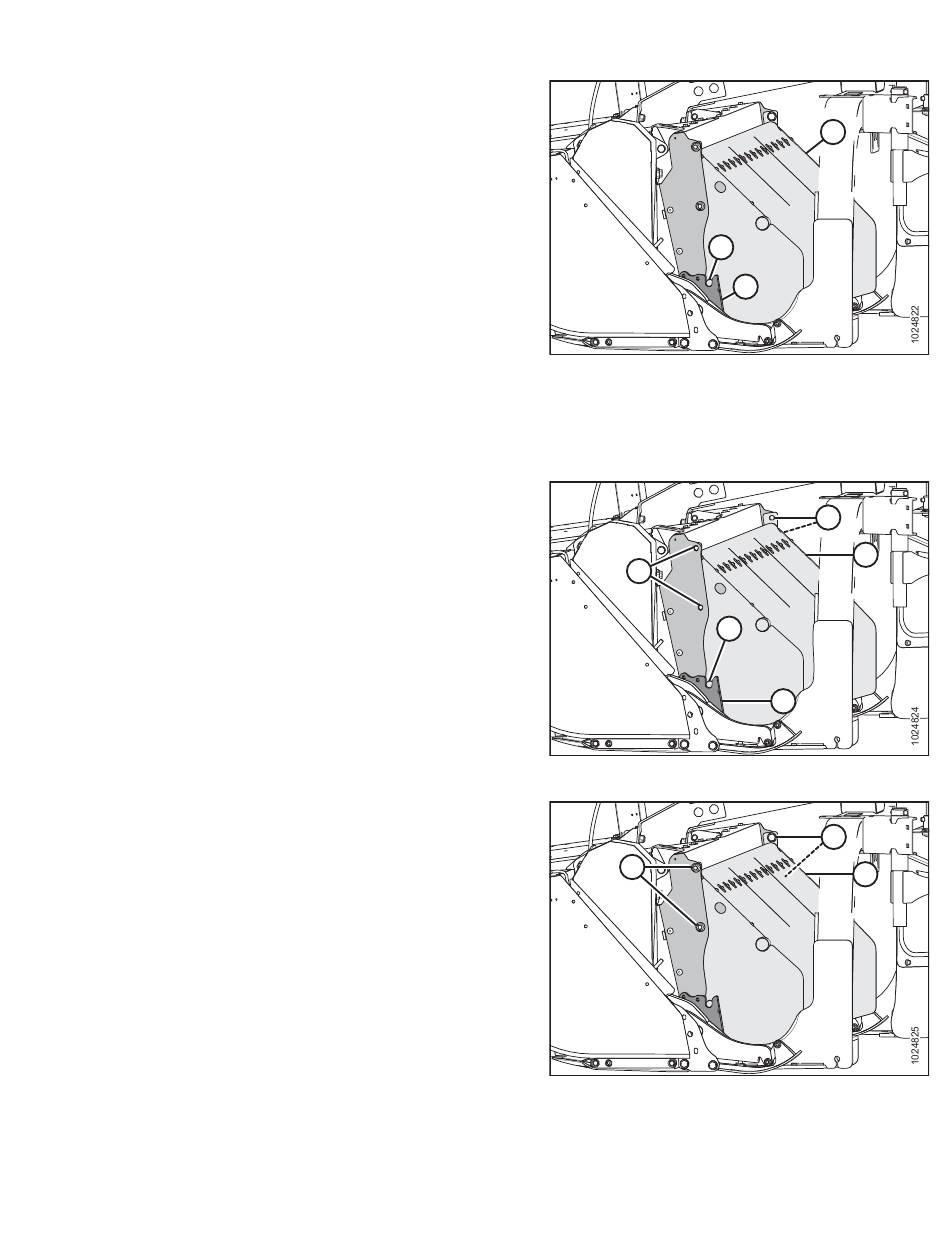

Figure 4.186: Left Side of Header – Right Opposite
Figure 4.187: Left Side of Header – Right Opposite
Figure 4.188: Left Side of Header – Right Opposite
187
B
C
D
B
C
A
A
D
A
A
B
Revision A
