Removing Outboard Rock Guards

DANGER
To avoid bodily injury or death from unexpected start-up or fall of a raised machine, stop engine, remove key, and
engage windrower lift cylinder safety props before going under machine for any reason.
WARNING
Exercise caution when working around the blades. Blades are sharp and can cause serious injury. Wear gloves when
handling blades.
1. Raise the header fully.
2. Shut down the engine, and remove the key from the ignition.
3. Engage the header safety props. For instructions, refer to
4. Locate rock guard (B) on the bottom outboard end of the
cutterbar. There is one guard on each end of the cutterbar.
5. Remove the two hex head screws (A), washers, and lock
nuts (C) securing rock guard (B) to the cutterbar assembly.
6. Remove bolt and washers (A).
7. Loosen bolt (B).
8. Remove rock guard (C) by sliding it forward.
9. Repeat Steps 4, page 132
side of the cutterbar.
215009
MAINTENANCE AND SERVICING
to 8, page 132 at the opposite
3.3 Engaging and Disengaging Header Safety Props, page
B

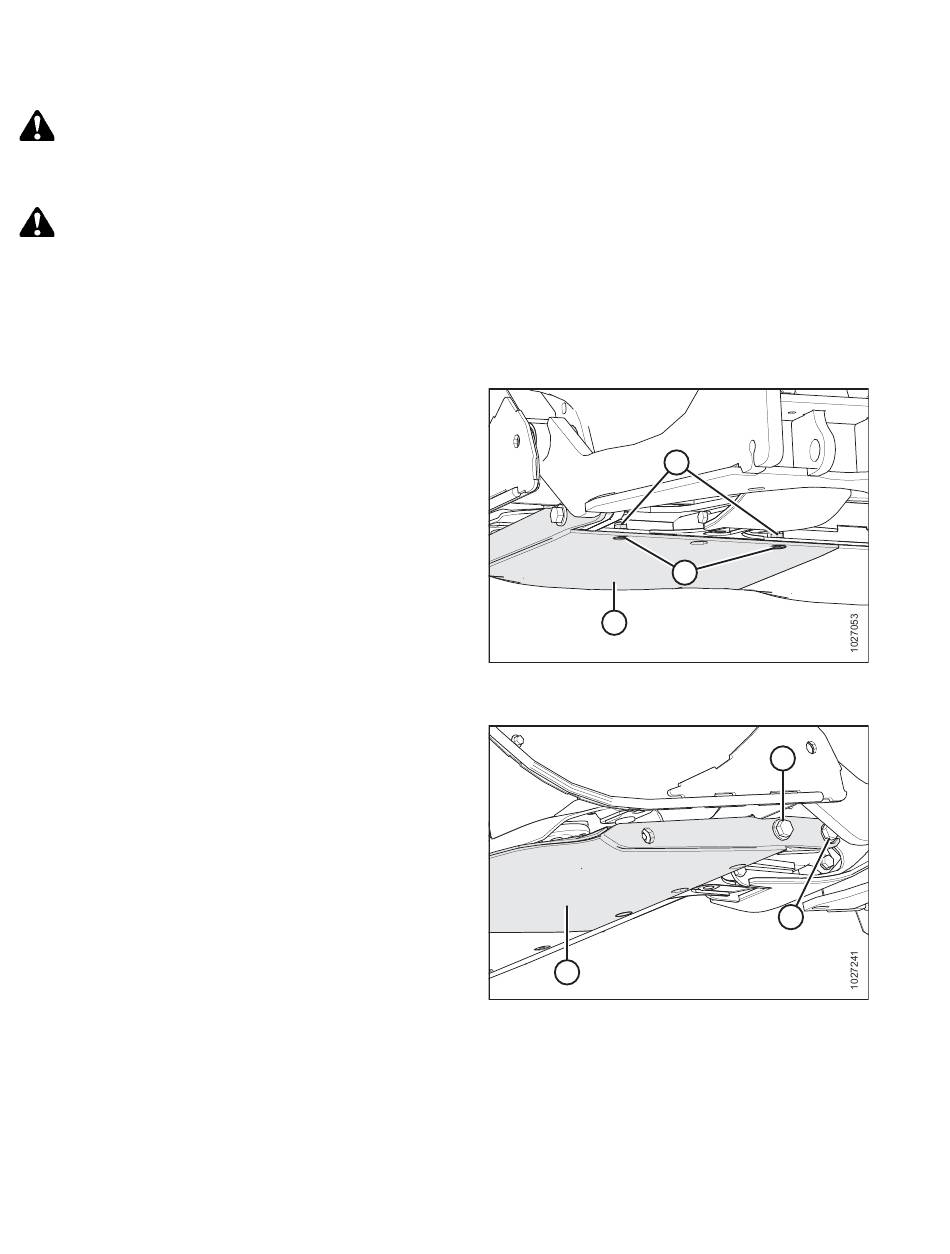

Figure 4.67: Left Outboard Rock Guard – View
from Rear
C
Figure 4.68: Left Outboard Rock Guard – Side View
132
24.
C
A
A
B
Revision A
