Removing Inboard Rock Guards - MacDon R113 SP Operator's Manual

Rotary disc header
Hide thumbs Also See for R113 SP:
Table of Contents

Advertisement

Removing Inboard Rock Guards

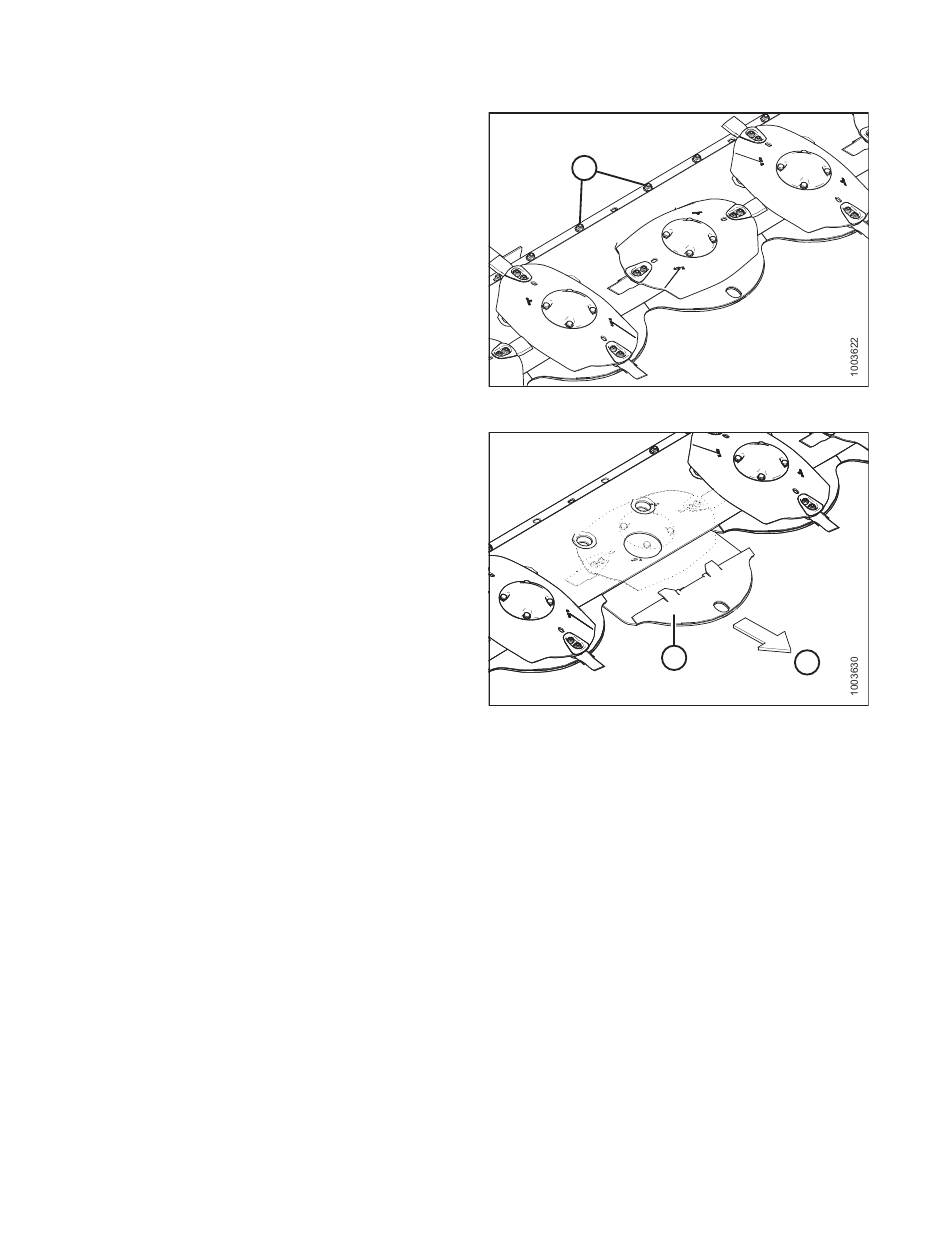

1. Remove two hex head screws, washers, and lock nuts (A).
2. Slide inboard rock guard (A) forward (in the direction of
arrow [B]) and remove.
215009
MAINTENANCE AND SERVICING
Figure 4.63: Inboard Rock Guards
Figure 4.64: Inboard Rock Guards
130
A
A
B
Revision A
