5. Install nut (A).
6. Attach safecut spindle-nut wrench (B) 90 degrees (D) to the
torque wrench (A).
IMPORTANT:
If this is not done, the proper torque will NOT be applied to
the nut.
7. Position safecut spindle-nut wrench (B) on spindle nut (C).
Torque nut to 300 Nm (221 lbf·ft).
8. Return safecut spindle-nut wrench (B) to the left
shield plate.
9. Inspect the threads of two M10 bolts (A) and replace if
damaged.
10. Install two M10 bolts (A) and washers. Torque hardware to
55 Nm (40 lbf·ft).
215009
MAINTENANCE AND SERVICING

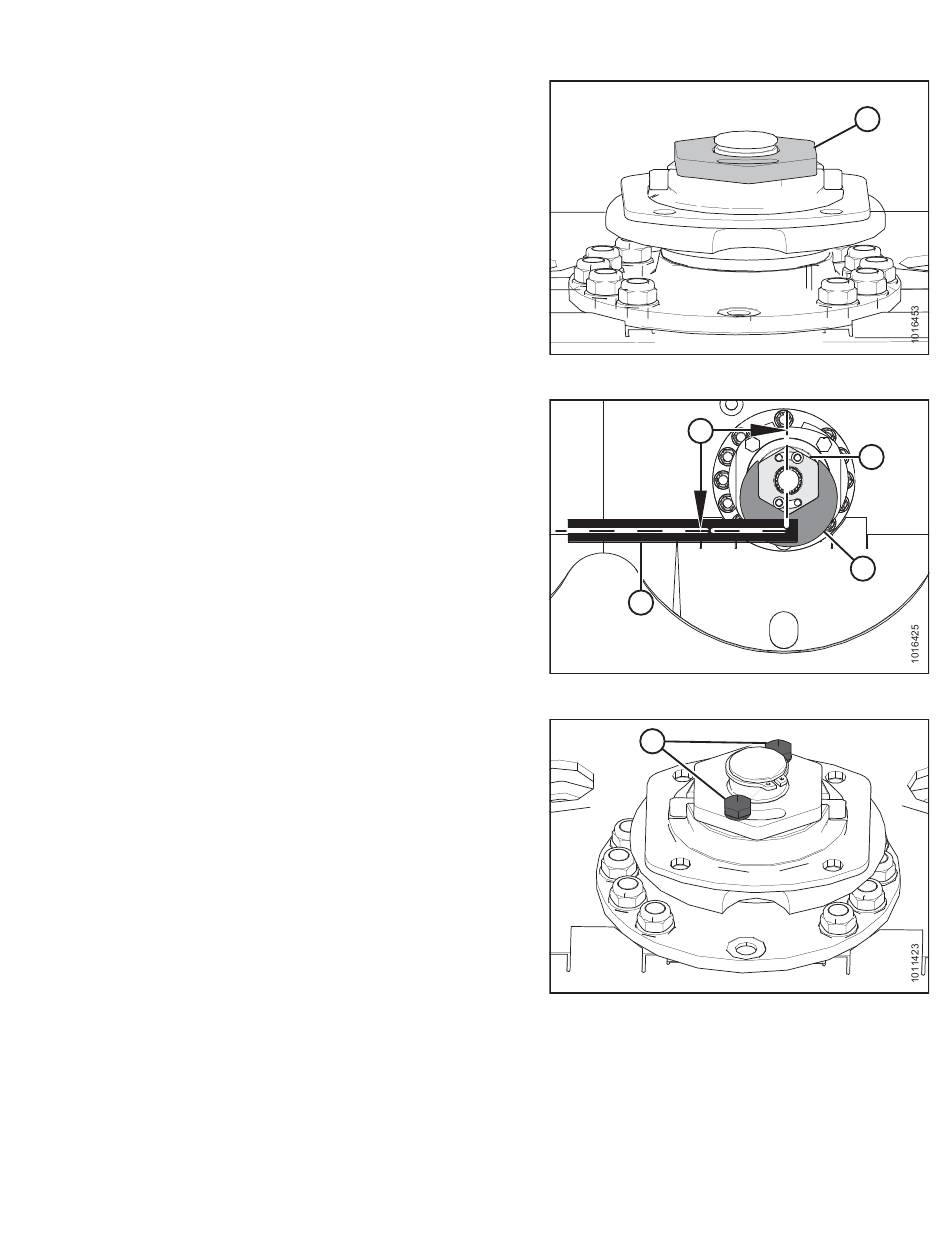

Figure 4.114: Cutterbar Spindle
Figure 4.115: Spindle Nut
Figure 4.116: Cutterbar Spindle
155
