4. Install eight M8 bolts (A) and washers to secure cover (B) to
non-driven drum, and torque to 28 Nm (20 lbf·ft).
WARNING
Ensure the cutterbar is completely clear of foreign objects.
Foreign objects can be ejected with considerable force when
the machine is started and may result in serious injury or
machine damage.
5. Close cutterbar doors (A). For instructions, refer to
Closing Cutterbar Doors, page
215009
MAINTENANCE AND SERVICING
3.7.3
66.
148
A
B

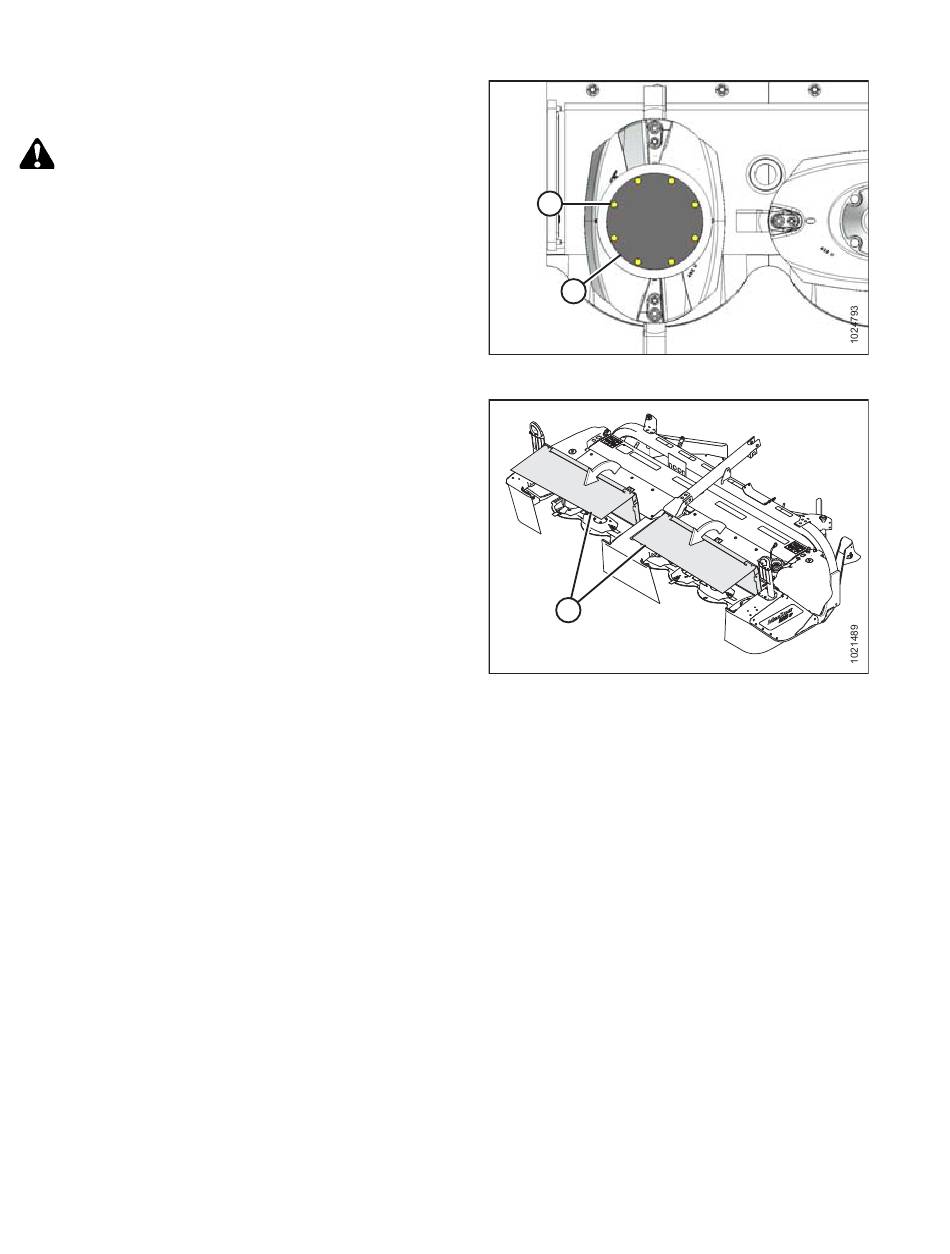

Figure 4.101: Non-Driven Drum
A
Figure 4.102: Cutterbar Doors
Revision A
