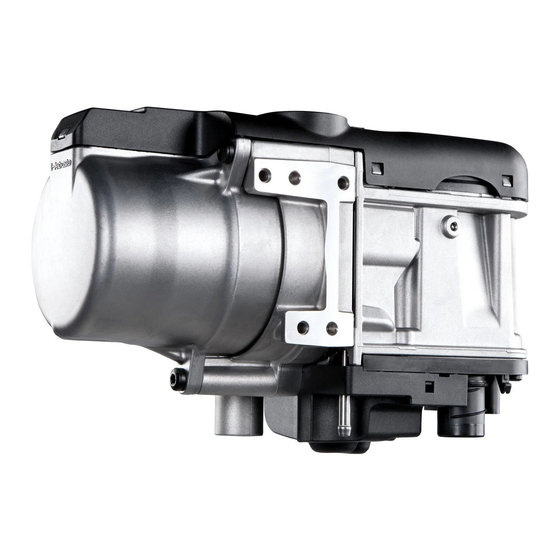

Water Heater
Thermo Top Evo Parking Heater
Installation Documentation
Ford B-Max

Validity

Manufacturer
Ford
Motorisation
Fuel
1.0 EcoBoost
Petrol
1.0 EcoBoost
Petrol
1.4 Duratec
Petrol
1.6 Duratorq
Diesel
SG = manual transmission
From Model Year 2013
Left-hand drive vehicle
Verified equipment variants: Automatic air-conditioning
Not verified:
Total installation time:
Ident. No.: 1319092A_EN
00 0258
Model
B-Max
Transmission type Output in kW
SG
SG
SG
SG
Front fog light
Alarm system with passenger compartment monitoring
Manual air conditioning
approx. 6.5 hours
Status: 02.01.2013
E
1
Type
EG-BE-No. / ABE
JK8
e9 * 2007 / 46 * 0092 * ...
Displacement in cm³ Engine code
74
998
88
998
66
1388
70
1560
SFJA / SFJB
MIJA
SPJD
T3JB
© Webasto Thermo & Comfort SE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Thermo Top Evo and is the answer not in the manual?

Questions and answers

Related Manuals for Webasto Thermo Top Evo

Summary of Contents for Webasto Thermo Top Evo

  • Page 1: Validity

    Water Heater Thermo Top Evo Parking Heater 00 0258 Installation Documentation Ford B-Max Validity Manufacturer Model Type EG-BE-No. / ABE Ford B-Max e9 * 2007 / 46 * 0092 * ... Motorisation Fuel Transmission type Output in kW Displacement in cm³ Engine code 1.0 EcoBoost...

  • Page 2: Table Of Contents

    Remote Option (Telestart) Necessary Components • Basic delivery scope Thermo Top Evo in accordance with price list • Installation kit for Ford B-Max 2013 Petrol and diesel: 1319091A • Heater control in accordance with price list and upon consultation with end customer •...

  • Page 3: Information On Operating And Installation Instructions

    Installation and repair may ONLY be carried out by persons trained and VEHICLE INSTALLATION REQUIREMENTS certified in a Webasto training course. NEVER try to install or repair We- 2.1. Scope basto heating or cooling systems if you have not completed a Webasto training course, you do not have the necessary technical skills and you 2.1.1.

  • Page 4: Information On Validity

    • Crimping pliers for cable lug / tab connector 0.5 - 6mm² • Torque wrench for 2.0 - 10 Nm • Hose clamping pliers • Metric thread-setter kit • Webasto Thermo Test diagnosis with current software Dimensions • All dimensions are in mm. Tightening torque values •...

  • Page 5: Preliminary Work

    • Remove years that do not apply from the type and duplicate label. • Attach the duplicate label (type label) at the appropriate place in the engine compartment. Heater Installation Location 1 Heater Installation location Ident. No.: 1319092A_EN Status: 02.01.2013 © Webasto Thermo & Comfort SE...

  • Page 6: Preparing Electrical System

    Lock socket of IPCU 1 and fuse holder of passenger compartment 2 in place. Pull wires into supplied protective sleeving. Preparing fuse holder of passen- ger com- partment Ident. No.: 1319092A_EN Status: 02.01.2013 © Webasto Thermo & Comfort SE...
  • Page 7 2 Lock 3 Blue/brown (bl / br) wires Disman- 4 Coding tling con- 5 Timer lock nector 1 Battery trim 2 5.5 mm dia. hole Hole in bat- tery trim Ident. No.: 1319092A_EN Status: 02.01.2013 © Webasto Thermo & Comfort SE...

  • Page 8: Electrical System

    Wiring har- ness rout- diagram Earth wire Wiring harness pass through 1 Earth wire on original vehicle earth support 1 Protective rubber plug point Ident. No.: 1319092A_EN Status: 02.01.2013 © Webasto Thermo & Comfort SE...

  • Page 9: Fan Control

    20A fuse brown 30A fuse 1A fuse 25A fuse IPCU Pulse width modulator IPCU settings: Duty cycle: 70% Frequency: 400Hz Voltage: Cutting point Function: Low side Wiring colours may vary. Ident. No.: 1319092A_EN Status: 02.01.2013 © Webasto Thermo & Comfort SE...
  • Page 10 2 Yellow/green (ge/gn) wire of fan relay 3 Yellow/green (ge/gn) wire of fan control- Connect- ler connector, Pin 4 ing fan con- Red (rt) wire of K1/87a troller Black (sw) wire of K1/30 Ident. No.: 1319092A_EN Status: 02.01.2013 © Webasto Thermo & Comfort SE...

  • Page 11: Digital Timer

    Remote Option (Telestart) Fasten receiver 1 with adhesive tape. Mounting receiver 1 Antenna Mounting antenna Temperature sensor T100 HTM Fasten temperature sensor 1 with adhesive tape. Installing tempera- ture sensor Ident. No.: 1319092A_EN Status: 02.01.2013 © Webasto Thermo & Comfort SE...

  • Page 12: Preparing Installation Location

    Preparing Heater 1 Water connection piece, sealing ring [2x each] 2 5x15 self-tapping bolt, retaining plate of water connection pieces Mounting water con- nection pieces Ident. No.: 1319092A_EN Status: 02.01.2013 © Webasto Thermo & Comfort SE...
  • Page 13 1 50 mm long heat shrink plastic tubing [4x] Preparing hoses All spring clips = 25 mm dia. Premount- ing hoses 1 90° moulded hose 2 10 mm dia. clamp Installing moulded hose Ident. No.: 1319092A_EN Status: 02.01.2013 © Webasto Thermo & Comfort SE...

  • Page 14: Mounting Bracket

    3 M6x20 bolt, 8mm shim, flanged nut Mounting bracket Installing Heater 1 5x13 self-tapping bolt [3x] Mounting heater 1 Circulating pump wiring harness 2 Wiring harness of heater [2x] Attaching wiring har- nesses Ident. No.: 1319092A_EN Status: 02.01.2013 © Webasto Thermo & Comfort SE...

  • Page 15: Combustion Air

    3 M6x20 bolt, large diameter washer, Mounting flanged nut silencer 4 M5x16 bolt, large diameter washer [2x], flanged nut 1 Combustion air pipe 2 Silencer Connect- ing com- bustion air pipe Ident. No.: 1319092A_EN Status: 02.01.2013 © Webasto Thermo & Comfort SE...

  • Page 16: Fuel

    Route wiring harness of metering pump and fuel line in 10mm dia. corrugated tube 1 to the installation location of the metering pump along original vehicle fuel lines. Routing lines Ident. No.: 1319092A_EN Status: 02.01.2013 © Webasto Thermo & Comfort SE...
  • Page 17 1 Original vehicle bolt Mounting perforated bracket 1 Support angle, M6 flanged nut 2 Perforated bracket 3 Mounting of metering pump Installing mount 1 Metering pump Inserting metering pump Ident. No.: 1319092A_EN Status: 02.01.2013 © Webasto Thermo & Comfort SE...
  • Page 18 90°. Preparing fuel stand- pipe Align standpipe of fuel standpipe with tank bottom. 1 25mm dia. clamp [2x] 2 Fuel standpipe 3 Fuel-tank vent line Installing fuel stand- pipe Ident. No.: 1319092A_EN Status: 02.01.2013 © Webasto Thermo & Comfort SE...
  • Page 19 Check that they have freedom of movement. 1 Fuel line of fuel standpipe 2 180° moulded hose, 10 mm dia. clamp [2x] Connect- ing meter- ing pump Ident. No.: 1319092A_EN Status: 02.01.2013 © Webasto Thermo & Comfort SE...

  • Page 20: Exhaust Gas

    1 Silencer 2 M6x16 bolt, spring lockwasher 3 Perforated bracket Premount- ing silencer 1 Copy hole pattern [2x] 2 Perforated bracket of silencer 3 Perforated bracket Copying hole pat- tern Ident. No.: 1319092A_EN Status: 02.01.2013 © Webasto Thermo & Comfort SE...
  • Page 21 1 Hose clamp [2x] 2 Exhaust pipe Mounting exhaust pipe Ensure sufficient distance from neighbouring components, or correct. 1 Hose clamp 2 Exhaust end section Mounting exhaust end section Ident. No.: 1319092A_EN Status: 02.01.2013 © Webasto Thermo & Comfort SE...

  • Page 22: Coolant Circuit 1.0B And 1.6 D

    The connection should be "inline" based on the following diagram: Hose rout- ing dia- gram All spring clips = 25 mm dia. All connecting pipes = 18x18 dia. 2 = Black (sw) rubber isolator 1 = Check valve Ident. No.: 1319092A_EN Status: 02.01.2013 © Webasto Thermo & Comfort SE...

  • Page 23: Coolant Circuit 1.4 B

    The connection should be "inline" based on the following diagram: Hose rout- ing dia- gram All spring clips = 25 mm dia. All connecting pipes = 18x18 dia. 1 = Check valve Ident. No.: 1319092A_EN Status: 02.01.2013 © Webasto Thermo & Comfort SE...
  • Page 24 5 Circulating pump mounting Premount- ing circu- lating pump Image shows diesel vehicle. 1 Mount wiring harness of circulating pump 2 Original vehicle stud bolt, perforated bracket, plastic nut Mounting circulating pump Ident. No.: 1319092A_EN Status: 02.01.2013 © Webasto Thermo & Comfort SE...
  • Page 25 Route hose B upwards on the firewall. Connect- ing circu- lating pump 1 Cable tie Underbody routing 1 Perforated bracket Angling down per- forated bracket 90° Ident. No.: 1319092A_EN Status: 02.01.2013 © Webasto Thermo & Comfort SE...
  • Page 26 1 Remove coupling piece of heat exchang- er inlet, will be re-used 2 Pull off hose on engine outlet / heat ex- changer inlet Cutting 3 Discard spring clip point Ident. No.: 1319092A_EN Status: 02.01.2013 © Webasto Thermo & Comfort SE...
  • Page 27 3 Hose of engine outlet Connect- ing engine outlet 1 Check valve Connec- tion of check valve 1 Check valve (hidden by A/C line) Connec- tion of check valve Ident. No.: 1319092A_EN Status: 02.01.2013 © Webasto Thermo & Comfort SE...
  • Page 28 Pull off and separate hose on engine outlet / heat exchanger inlet. 1 Discard spring clip Cutting 2 Discard hose section point 3 Hose of engine outlet 1 Coupling piece of heat exchanger inlet Premount- ing hoses Ident. No.: 1319092A_EN Status: 02.01.2013 © Webasto Thermo & Comfort SE...
  • Page 29 1 Check valve Connec- tion of check valve 1 Coupling piece of heat exchanger inlet attached Connect- ing heat ex- changer inlet 1 Check valve Connec- tion of check valve Ident. No.: 1319092A_EN Status: 02.01.2013 © Webasto Thermo & Comfort SE...
  • Page 30 2 Push on black (sw) rubber isolator [2x] Premount- ing hoses 1 Hose on heat exchanger outlet 2 Insert hose bracket 3 Hose of engine outlet Connect- ing engine outlet Ident. No.: 1319092A_EN Status: 02.01.2013 © Webasto Thermo & Comfort SE...
  • Page 31 Align black (sw) rubber isolator 1 [2x] with A/C lines. Align hoses. Ensure sufficient distance from neighbouring components, or correct. 2 Check valve Connec- tion of check valve Ident. No.: 1319092A_EN Status: 02.01.2013 © Webasto Thermo & Comfort SE...

  • Page 32: Final Work

    • Place the "Switch off parking heater before refuelling" signboard in the area of the filler neck. • See installation instructions for initial startup and function check. Webasto Thermo & Comfort SE Postfach 1410 82199 Gilching Germany Internet: www.webasto.com Technical Extranet: http://dealers.webasto.com Ident. No.: 1319092A_EN Status: 02.01.2013 © Webasto Thermo & Comfort SE...
