Raise3D Pro2 Manual page 14

3D PRINTER MANUAL- RAISE3D PRO2 SERIES

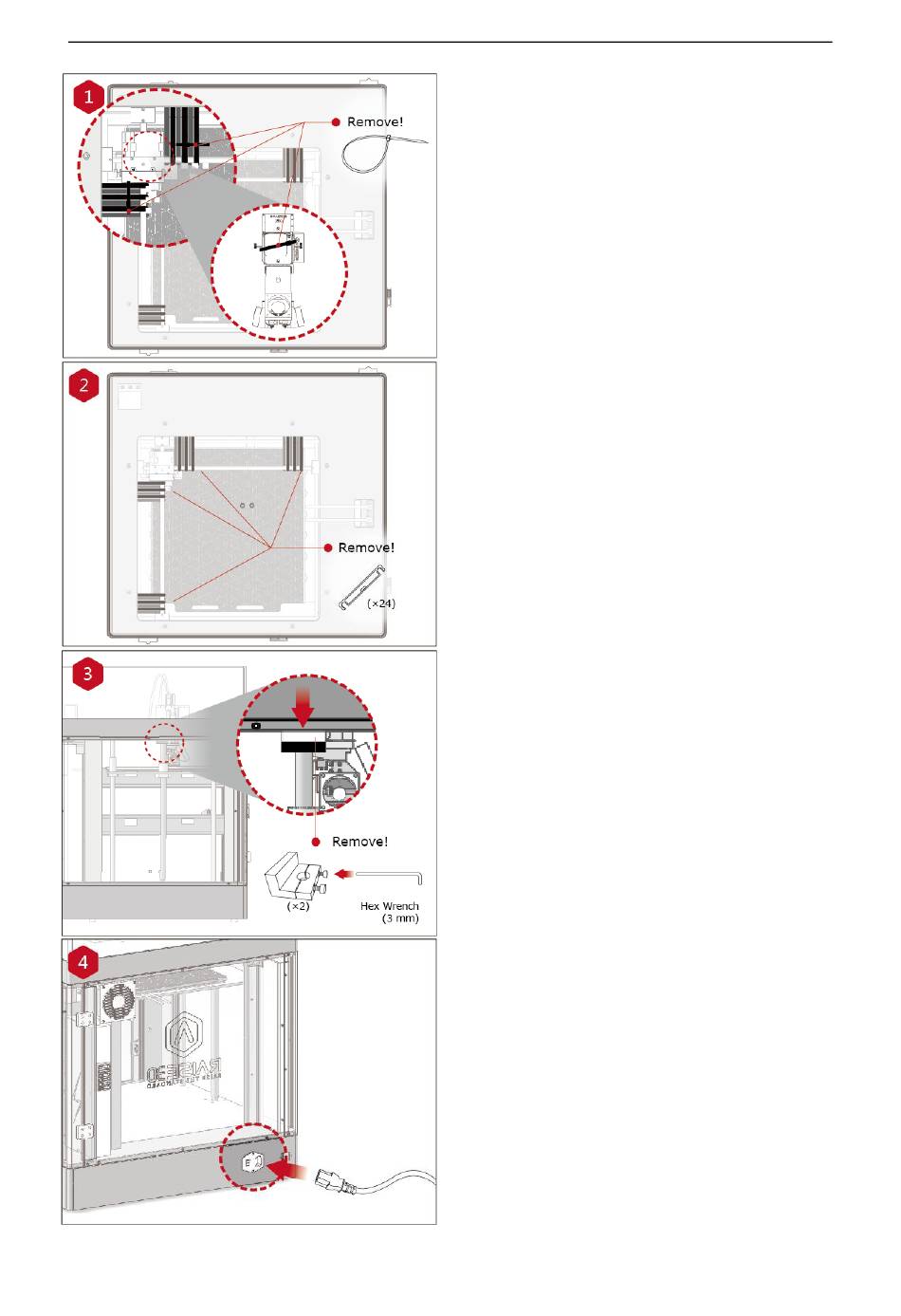

Locate the four shipping zip ties, and remove them.
It's recommend to unclip these as opposed to
cutting. They can be reused if you need to transport
your machine in the future.
Peel the yellow sticker and remove the 24 security
spacers.
These clips are designed to hold the extruder
assembly in place during shipping and should be
saved for future transport. Do not operate printer
with clips installed.
Select the largest of the included hex head wrench
(3mm), and remove all four hex head security bolts
from Z-axis clamps (2 bolts each). These are located
on the left and right sides on the printer on the ball
screw thread.
Plug the machine into a wall outlet using the power
adapter for your designated country. (5 included)
Flip the switch to power the unit on.
