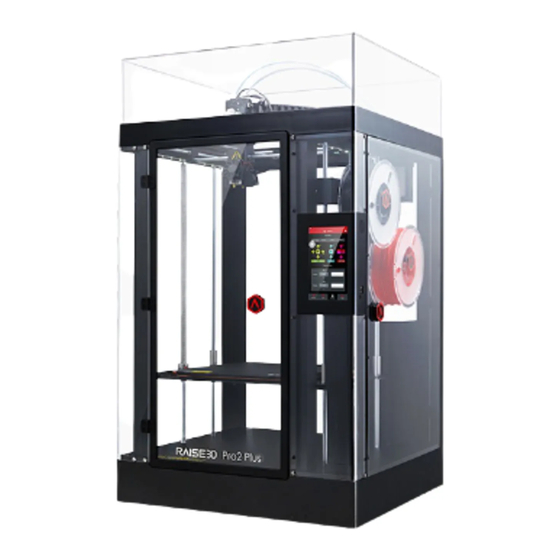

Raise3D Pro2 Series Manual
How to install extruder side cooling fan
Hide thumbs
Also See for Pro2 Series:
- Manual (43 pages) ,
- Quick start manual (32 pages) ,
- Installation instruction (5 pages)
Advertisement
Quick Links
Version 1.0
Date：29/08/2018
Manual Pro2 Series - How to Install Extruder Side
Cooling Fan -v1.0
* The steps of replacing both sides of cooling fans are similar with each other. Here we use
the right side as reference.
1. Preparation
Unload the filament from both nozzles.
Turn off the printer after filament being removed.
2. Remove Fan Duct
Remove the screws marked in the picture below and take the Cooling Fan off with Fan Duct.
Remove the screws marked in the picture below and take the Fan Duct off.
3. Preparation for Wiring
Unplug the cable of Side Cooling Fan from extruder board.
* The left terminal on board is used to control Right Fan, right terminal is used to control left
fan.
1
www.raise3d.com
Advertisement
Related Manuals for Raise3D Pro2 Series
Summary of Contents for Raise3D Pro2 Series
- Page 1 Version 1.0 Date：29/08/2018 Manual Pro2 Series - How to Install Extruder Side Cooling Fan -v1.0 * The steps of replacing both sides of cooling fans are similar with each other. Here we use the right side as reference. 1. Preparation Unload the filament from both nozzles.
- Page 2 Version 1.0 Date：29/08/2018 • Take the old Cooling Fan and the its cable out. • Remove the two fixing screws from the black back casing and take the casing off. Cut the zip ties fixing cables. www.raise3d.com...
- Page 3 * If you want to replace the Left Side Cooling Fan, please remove the Heating Rod at lower terminal which is for control left nozzle.(Note:In order to remove the heater rod wires the extruder connection board should be removed from the printhead) www.raise3d.com...
- Page 4 Pull the Heating Rod cables out from the Mounting Block from the bottom. 4. Install the new Fan Replace a new Fan. * Make sure that the surface of fan with tags is facing support. Install the New Fan and the Fan Duct back onto the printer. www.raise3d.com...
- Page 5 Version 1.0 Date：29/08/2018 Grab the connector of the new Fan by tweezers out from the top to help it go through the Mounting Block. www.raise3d.com...
- Page 6 Insert the cables of the Heating Rod into the terminal and tighten the screws to fix. Ensure there is no exposed wired touching with each other, or it may do harm to the printer. Upper one is for Left nozzle. Lower one is for right nozzle. www.raise3d.com...
- Page 7 Version 1.0 Date：29/08/2018 5. Final Bind the cables together with zip ties and fix the casing back to cover the cables. www.raise3d.com...
- Page 8 Version 1.0 Date：29/08/2018 [ Manual Pro2 Series - How to Install Extruder Side Cooling Fan -v1.0 ] -END- www.raise3d.com...
