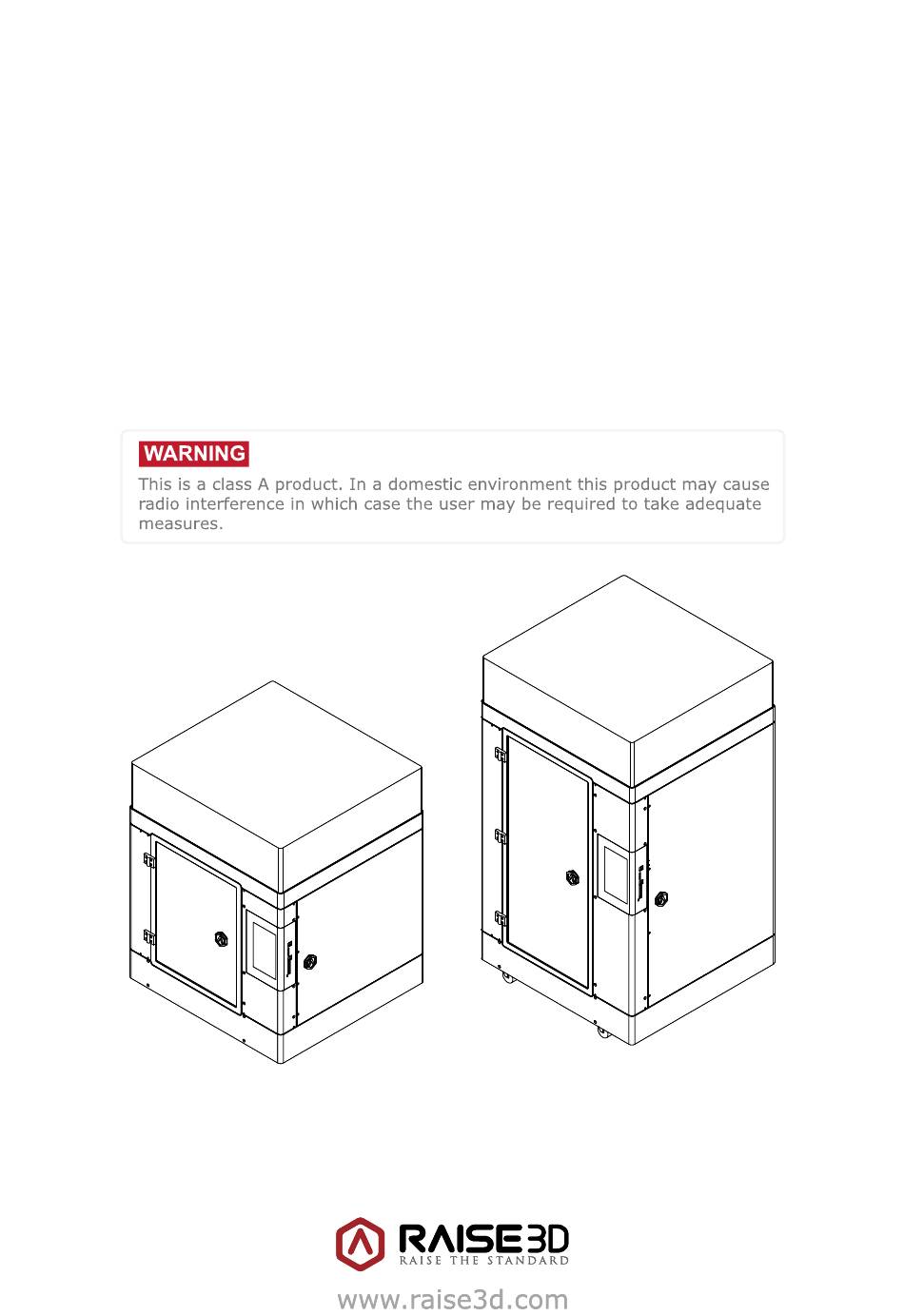

- Page 1 N-Series 3D Printer Quick Start Guide * Please review this entire guide before operating the printer. N2 Plus N2 Plus...
-
Page 2: List Of Parts

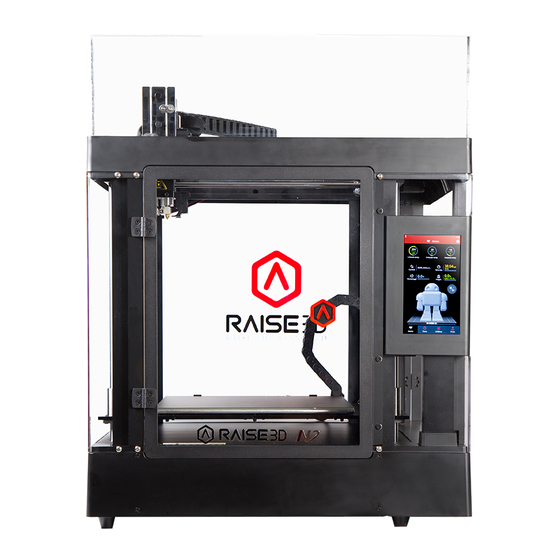

Fan(s) Nozzle(s) USB Storage & SD Card Slot Touch Screen GPIO Ports Power Inlet Print Bed Z-Stage Power Switch N2 Plus Filament Feeder Z Ball Screws Fan(s) Nozzle(s) USB Storage & Touch Screen SD Card Slot GPIO Ports Print Bed... -
Page 3: Hardware Installation
/ Quick Start Guide N-Series 3D Printer Hardware Installation Remove! Remove! (×24) Recommend to unclip the Zipties as you Please remove the 24 clips holding the are able to reuse the ties later. extruder assembly in place before power- ing on your printer. If you fail to remove these clips your printer will be damaged. - Page 4 / Quick Start Guide N-Series 3D Printer Hardware Installation (continued) List of Contents Glass with Filament Nozzle Tweezers Hex Wrenches Protective Foam (×1/×2)* Cleaning Kit Spatula Build Plate Clips Fan Cover Filament Guide Filament Holder (×0/×2)* Tube Holder (×1/×2)* Filament Guide Power Cable Fuse USB Storage...
- Page 5 / Quick Start Guide N-Series 3D Printer Hardware Installation (continued) Remove the glass build plate from the protective foam. Protective Foam Build Plate Remove! Cover Gently slide the glass plate. Make sure it snaps into the build plate clamps at the back.
- Page 6 / Quick Start Guide N-Series 3D Printer Hardware Installation (continued) Install the filament holder in the mounting hole on the side of the printer and place a Mounting spool of filament on the holder. holes NOTE: The filament should load clockwise. Slide the starter box out of the base of the printer.
- Page 7 Finish the feeding operation step by step according to the instructions on the screen. NOTE: This document is set based on the Raise3D PLA filament, which is delivered together with the printer. Therefore we advise that you use this PLA for testing.
- Page 8 / Quick Start Guide N-Series 3D Printer ideaMaker Installation The ideaMaker software is available on the USB storage www.raise3d.com included with your printer. Or go to www.raise3d.com Download ideaMaker download the ideaMaker software. WINDOWS Open the installer and choose the language. Set a path for installing ideaMaker then...
- Page 9 / Quick Start Guide N-Series 3D Printer ideaMaker Installation (continued) Follow the instructions and click "Install". After the installation is finished, click "Next" to go to the next step. Click "Finish" and ideaMaker is installed.
- Page 10 / Quick Start Guide N-Series 3D Printer ideaMaker Installation (continued) MAC OS X Open the Disk Image for the ideaMaker installed on the USB storage included with your printer or that you downloaded from www.raise3d.com.
- Page 11 / Quick Start Guide N-Series 3D Printer ideaMaker Initial Settings The first time you open ideaMaker you will need to select your printer model from the drop-down list. Select the number of nozzles. Press "Next" to move on to the next step. Select the diameter of the filament.
- Page 12 / Quick Start Guide N-Series 3D Printer Using ideaMaker Click the "+" button to import an .stl file or .obj file. You can download a file or use the test model included in the USB storage. Click the "Start" or “i” button to begin the slicing of the model. Confirm your printer model and material, then select the proper slicing template.
- Page 13 / Quick Start Guide N-Series 3D Printer Using ideaMaker (continued) Click the “Save and Close” after selecting the type of Platform and the type of Support to return to the last menu. Click the “Slice” to start slicing. Save the sliced files (.gcode and .data) to USB storage. NOTE: File names that do not conform to the Western Latin character set may not display properly.
- Page 14 / Quick Start Guide N-Series 3D Printer Start First Print Even though N2/N2 Plus is prelev- eled in the factory, please press X/Y axis ‘home’ button first and then Z axis 'home' button to check whether the leveling is changed during shipping.
- Page 15 / Quick Start Guide N-Series 3D Printer Start First Print (continued) The USB storage included with the printer comes loaded with already sliced models. They are a good place to start for your first print. Insert the USB storage into the USB slot on the side of touchscreen.
-
Page 16: User Interface
/ Quick Start Guide N-Series 3D Printer User Interface · Status bar · Menu title, Settings Button · Extruder and Heat Bed temperature · Current model name, total print time, current printing status and height · Printing parameters and adjustment ·... - Page 17 4th Floor, Building B5, 1600 North Guoquan Rd, Shanghai, China 200438 +86 21 65337855 3189 Airway Avenue, Unit F, Costa Mesa, CA 92626, USA +1 888 963 9028 www.raise3d.com support@raise3d.com...
