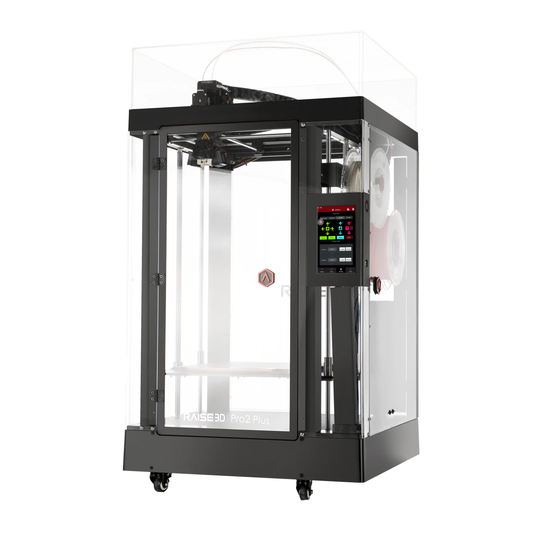

Pro2 Air Filter Installation Instruction
Pro2 Air Filter Installation instruction

STEP 1: Loose the Back Cover

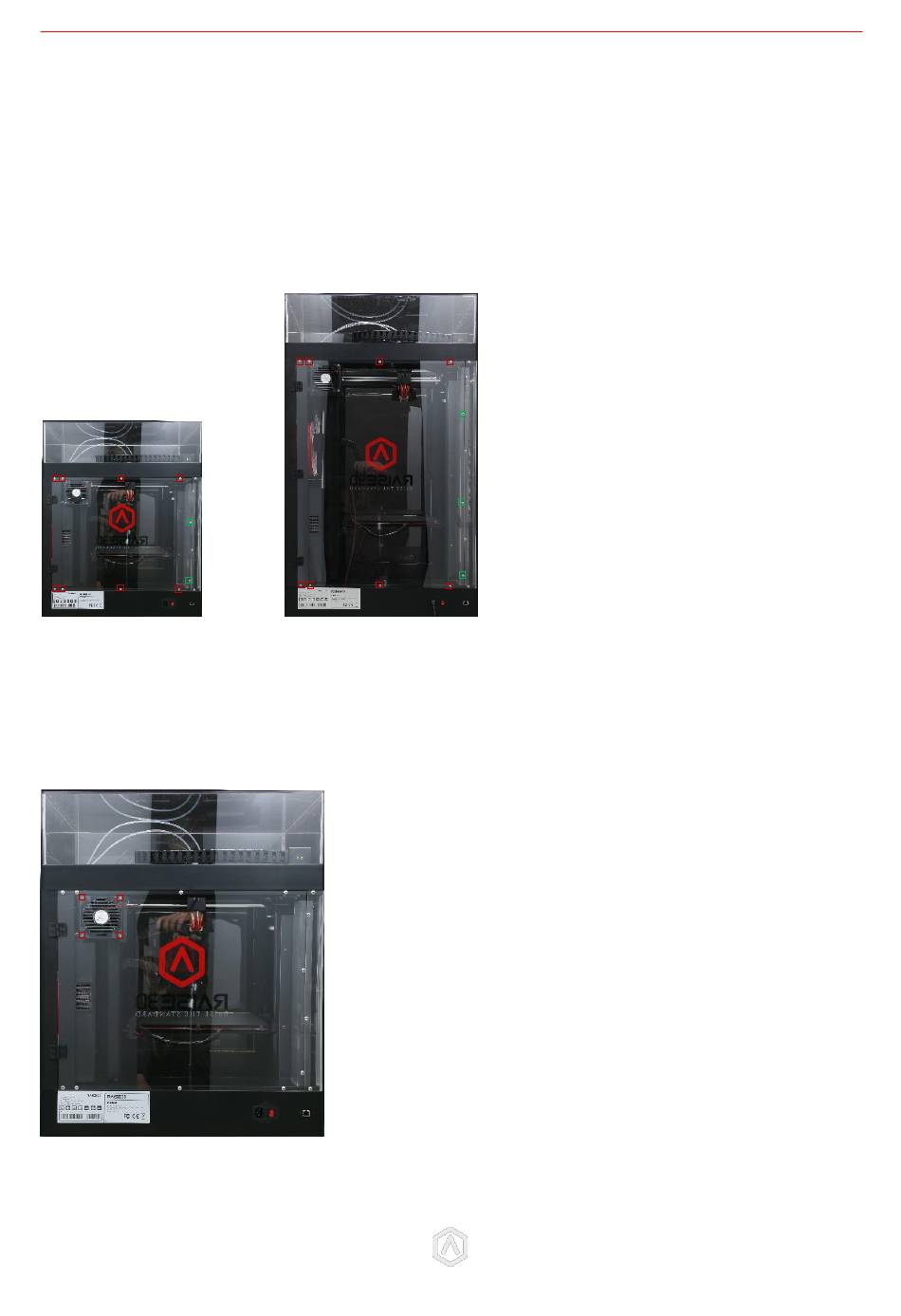

Remove the screws marked in red in the following images.
Keep the screws in green.

STEP 2: Remove the Fixing Screws of the Filter System

Hold the filter system with one hand and remove the 4 fixing screws marked in red from the back
cover with the other hand.
