Manual Pro2-400: Jam Remove
Manual Pro2-400: Jam Remove
Step1. Power Off

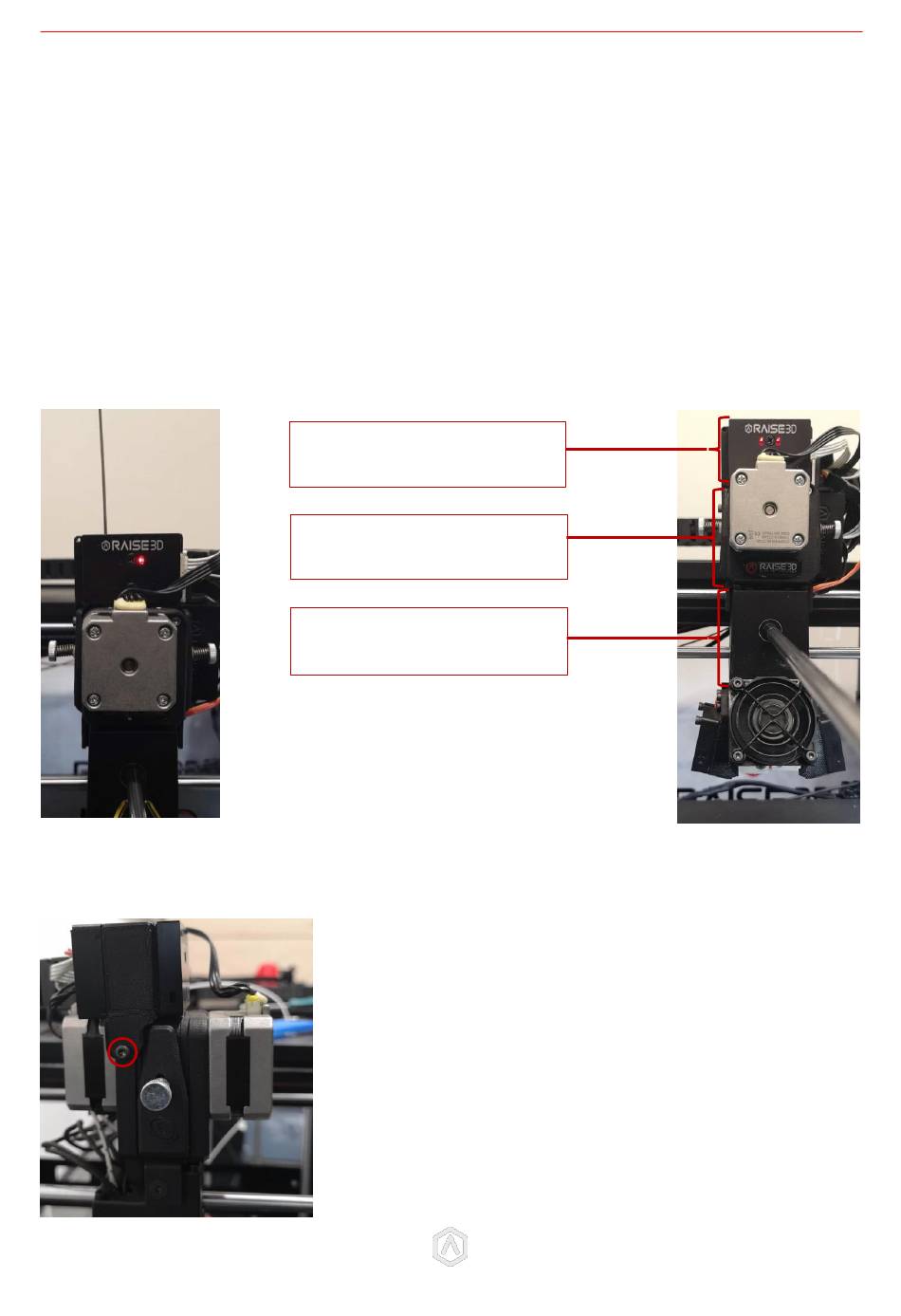

Step2. Check the Jam Position
Insert the Nozzle Cleaning Kit in accessary box from the feeding entrance until feel obvious stuck.
Mark on the Nozzle Cleaning Kit and take it out from the extruder. Compare from outside to see
where the jam is located at.
Step3. Remove the Filament Run-out Sensor
3.1 Remove the M3 screw with 2mm hex wrench and take the Filament Run-out Sensor off.
a.
If the jam is located between
Filament Run-out Sensor and
Extruder, please move to Step 2.
b.
If the jam is located between
Extruder and Extruder Carrier,
please move to Step 3.
c.
If the jam is located between
Extruder Carries, please move to
Step4.
