7. MOUNTING

The boiler should be fixed to a suitable load-bearing wall using
the fasteners supplied. If these are not appropriate, other
fasteners may be used provided they are equally as strong.
Remove the front door and outer casing assembly from the
boiler, moving to a place where they will not invite damage. For
ease of lifting, it may be useful at this stage to remove the
baffles and burner. Ensure all baffles are replaced in the order
shown on page 31.
Using the template supplied, work out the intended position of
the boiler and fix the template to the wall. Drill 6mm holes
where indicated and if using a horizontal balanced flue, cut a
hole 130mm diameter in the wall.
Remove the wall template and fix the two mounting brackets
provided to the wall where indicated.

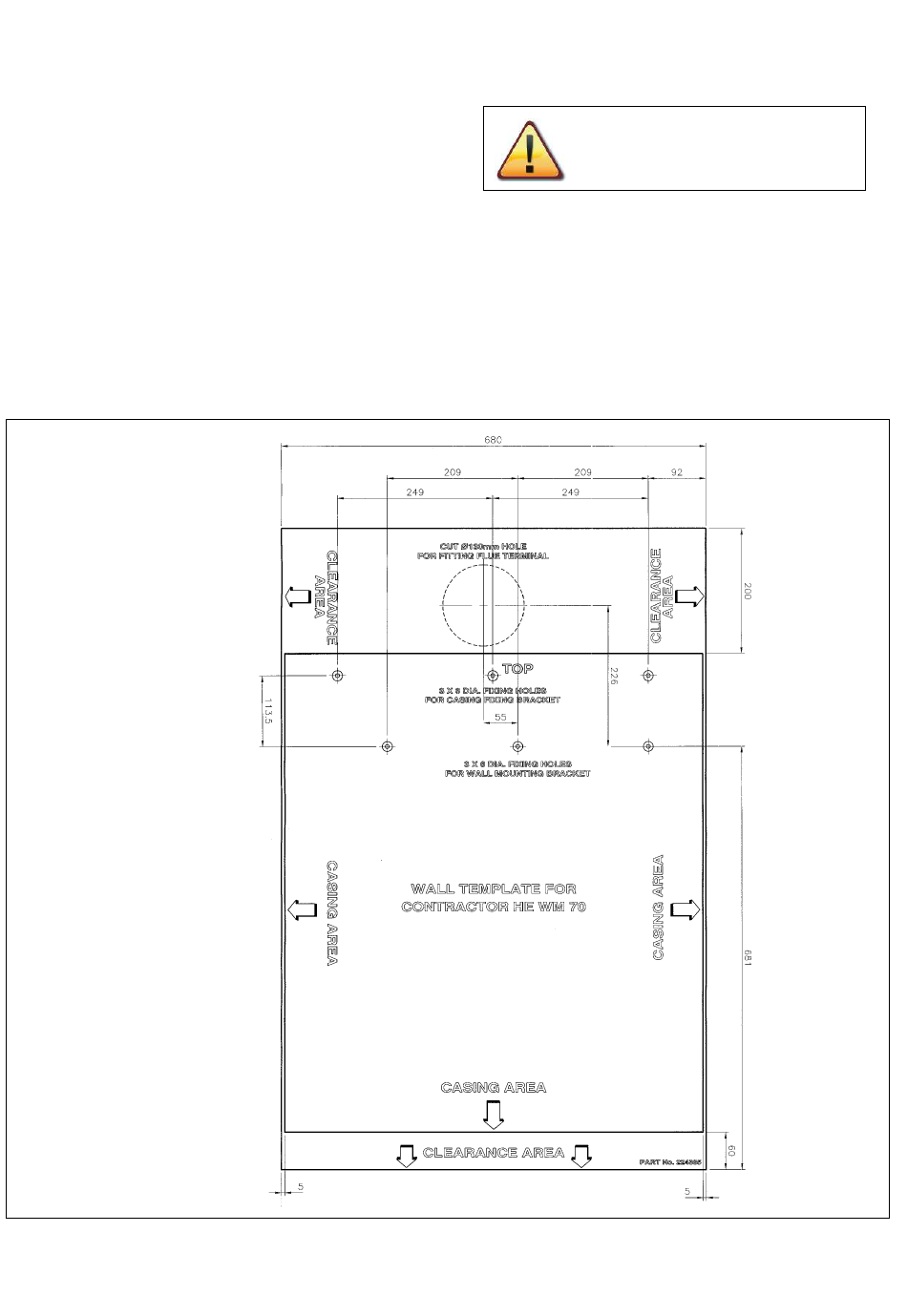

FIG 18 – WALL
MOUNTING TEMPLATE
See fig 3 for flue side
exit dimensions
CAUTION: Uneven Load
Hang the boiler onto the lugs on the large mounting bracket
and drill through one holes in the oil pipe bracket. Fit a plastic
wall plug and screw back to the wall.
Fit the casing over the boiler, locating the back top return of the
casing over the smaller of the two mounting brackets on the
wall. Mark through the holes in the bottom rear of the casing
and drill through into the wall. Insert a wall plug and screw the
casing back to the wall.
Fit the door casing.
