Enabling Switch Wiring

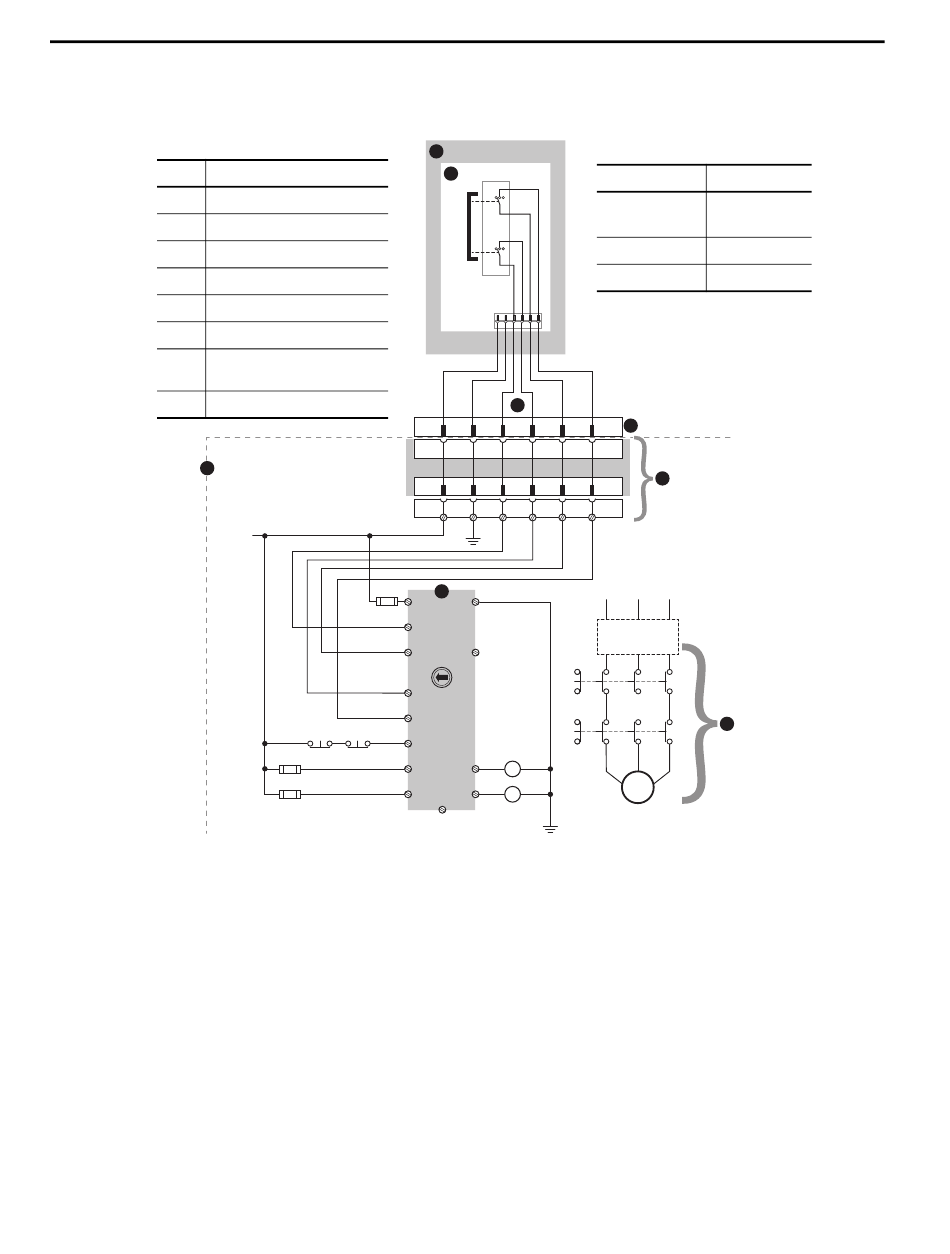

Table 3 - Callouts
Item Description
1 MobileView 2711T terminal
2 Enabling switches circuit board
3 Connection cable wires
4 IP20 junction box input connection
5 Control cabinet
6 IP20 junction box terminals
7 Allen-Bradley Guardmaster® safety
relay
8 Three-phase motor
5
+24 V DC
1
2
CH1
CH2
S1
1 2
1 2
X4
X1
1 2
+24 V GND ED1+ ED1- ED2+ ED2-
7
A1 A2
S11
S21 Y32
Reset
0
AM
MM
S12
S22
S34
K1 K2
13 14
23 24
L11
