Application Technique
Using a MobileView Terminal With Multiple IP20 Junction Boxes
Products: MobileView Terminal
Topic
(1) Applies only to MobileView™ terminals with gray stop button, cat. nos. 2711T-F10G1N1 and 2711T-T10G1N1.
(1)
, GuardLogix Controller, Stratix 5700 Switch, and POINT Guard I/O Modules
Page
2
3
3
3
4
4
4
5
5
5
6
7
7
8
9
11
13
14
17
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rockwell Automation Allen-Bradley MobileView Terminal
Summary of Contents for Rockwell Automation Allen-Bradley MobileView Terminal
-
Page 1: Table Of Contents
Application Technique Using a MobileView Terminal With Multiple IP20 Junction Boxes Products: MobileView Terminal , GuardLogix Controller, Stratix 5700 Switch, and POINT Guard I/O Modules Topic Page Important User Information Abbreviations General Safety Information Introduction Risk Assessment Enabling Switch Safety Function Safety Function Requirements Functional Safety Description Bill of Material... -
Page 2: Important User Information
If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment. -
Page 3: Abbreviations
(1) When used with a number (for example, IP20), IP means International Protection or Ingress Protection. General Safety Information Contact Rockwell Automation to find out more about our safety risk assessment services. IMPORTANT This application example is for advanced users who are trained and experienced in safety system requirements. -
Page 4: Risk Assessment
When you release or fully squeeze the switch, power to the motor is removed. Faults at the enabling switch, wiring terminals, or safety controller are detected before the next safety demand. Throughout this publication, notes are used wherever necessary to make you aware of safety considerations. Rockwell Automation Publication 2711T-AT001B-EN-P - February 2017... -
Page 5: Functional Safety Description
800F reset push button–metal, guarded, blue, R, metal latch mount, 1 N.O. contact, standard Installation and Wiring For detailed information on installation and wiring, refer to the publications in Additional Resources on page Rockwell Automation Publication 2711T-AT001B-EN-P - February 2017... -
Page 6: System Overview
Junction Box Area 2 Junction Box Area 3 MobileView Terminal Connection Cable In this publication, the application examples use a Compact GuardLogix controller, but the information also applies to any ControlLogix safety controller. Rockwell Automation Publication 2711T-AT001B-EN-P - February 2017... -

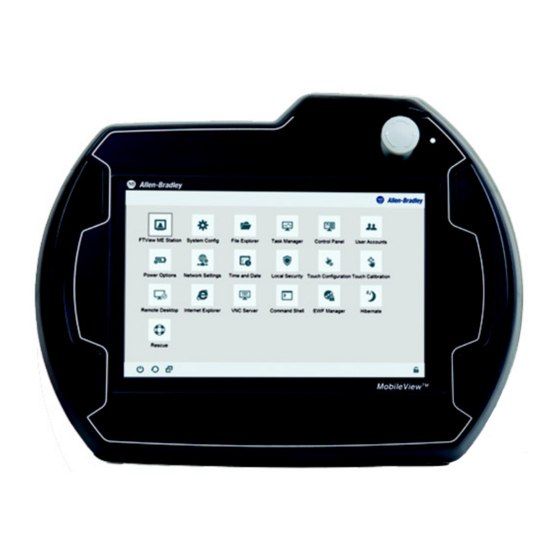

Page 7: Mobileview 2711T Terminal Component Description
Back cover to access connection compartment MobileView 2711T Terminal Dimensions and Weight 352 mm (13.86 in.) 108.5 mm (4.27 in.) 274 mm (10.79 in.) All MobileView 2711T terminals weigh 1550 g (3.42 lb.) without options. Rockwell Automation Publication 2711T-AT001B-EN-P - February 2017... -
Page 8: Connection Diagrams
2: Center position Ext1 3: Common White-pink Ext2 4: Right position White Ext3 Illuminated (white LED) Blue push button: Ext4 1: Contact (N.O.) White-blue Reserved 2: 24V (0V) illumination 3: Common 4: 0V (24V) illumination Rockwell Automation Publication 2711T-AT001B-EN-P - February 2017... -
Page 9: Enabling Switch Wiring
IP20 junction box input connection Control cabinet IP20 junction box terminals Allen-Bradley Guardmaster® safety relay Three-phase motor +24 V GND ED1+ ED1- ED2+ ED2- +24 V DC External Switched Stop/Start Circuit Reset 100S-C09EJ23BC 100S-C09EJ23BC Rockwell Automation Publication 2711T-AT001B-EN-P - February 2017... - Page 10 2 N.O. Yellow Circuit 2, N.C., 800F E-stop Reset Push Button (800F) 1734-IB8S Signal Cable Color Signal Description 1 N.C. White — 2 N.C. Green (1) Push button is near MobileView junction box. Rockwell Automation Publication 2711T-AT001B-EN-P - February 2017...
-
Page 11: System Components Configuration
ATTENTION: Basic knowledge of the RSLogix™ programming environment is necessary to configure with Studio 5000 software. Figure 4 has screen shot examples of how the Studio 5000 I/O tree and POINT I/O safety modules can be configured. Figure 4 - Controller and Safety Configuration Example Rockwell Automation Publication 2711T-AT001B-EN-P - February 2017... - Page 12 1756-EN2T/A Fixed Ethernet card for GuardLogix (L7x x CPUT) 192.168.1.105 1734-AENTR/B Zone 3 POINT I/O safety 192.168.1.106 1734-AENTR/B Fixed by rotary Zone 2 POINT I/O safety 192.168.1.107 1734-AENT/B Zone 1 POINT I/O safety Rockwell Automation Publication 2711T-AT001B-EN-P - February 2017...
-
Page 13: Application Programming
A specific icon shows which junction box is currently connected (H). When visible, the MobileView Disconnection Request button starts the MobileView disconnect procedure. A local message display shows the steps for this procedure. Rockwell Automation Publication 2711T-AT001B-EN-P - February 2017... -
Page 14: Application Examples
1783ENetSwitch_Rel_9.02.05 AOP Stratix 5700 28.0 FactoryTalk View ME patch (1) Available from the Rockwell Automation Product Compatibility and Download Center site at http://www.rockwellautomation.com/ support/pcdc.page. Application Examples The following application examples offer guidelines to connect and disconnect a MobileView terminal to multiple IP20... - Page 15 5. In the FactoryTalk View faceplate for Area 1, set the bypass switch to BYPASS. Figure 5 on page 12 for an example of a FactoryTalk View faceplate. 6. Wait for a message on the MobileView terminal display that confirms the operation has completed. Rockwell Automation Publication 2711T-AT001B-EN-P - February 2017...
- Page 16 2. Wait for a message on the MobileView terminal display that confirms the operation has completed. 3. In the FactoryTalk View faceplate for Area 3, set the bypass switch to BYPASS. 4. Wait for a message on the MobileView terminal display that confirms the operation has completed. Rockwell Automation Publication 2711T-AT001B-EN-P - February 2017...
-
Page 17: Additional Resources
1770-4.1 Provides general guidelines on how to install a Rockwell Automation® industrial system. Rockwell Automation Safety Products Catalog, available from the Product Catalogs link at Provides information on safety products available from Rockwell Automation. http://www.ab.com You can view or download publications at http://www.rockwellautomation.com/literature/. To order paper copies of technical documentation, contact your local Allen-Bradley distributor or Rockwell Automation sales representative. - Page 18 Rockwell Automation maintains current product environmental information on its website at http://www.rockwellautomation.com/rockwellautomation/about-us/sustainability-ethics/product-environmental-compliance.page. Allen-Bradley, ControlLogix, FactoryTalk, GuardLogix, Guardmaster, GuardPLC, MobileView, POINT I/O, RSLinx, RSLogix, RSLogix 5000, Stratix 5700, Studio 5000, Rockwell Software, Rockwell Automation, and LISTEN. THINK. SOLVE are trademarks of Rockwell Automation, Inc.
