Rockwell Automation Allen-Bradley 140UE Installation Instruction

Installation Instructions
Bulletin 140U /140UE / 140M Rotary Operating Mechanism Kit
for J-Frame Circuit Breaker
(Cat 140U-J-_ _ _)
WARNING: To prevent electrical shock, disconnect from power source before installing or servicing. Follow NFPA 70E requirements. Install in suitable enclosure. Keep free from
contaminants.
Installation, adjustments, putting into service, use, assembly, disassembly, and maintenance shall be carried out by suitably trained personnel in accordance with applicable code of
practice. In case of malfunction or damage, no attempts at repair should be made.

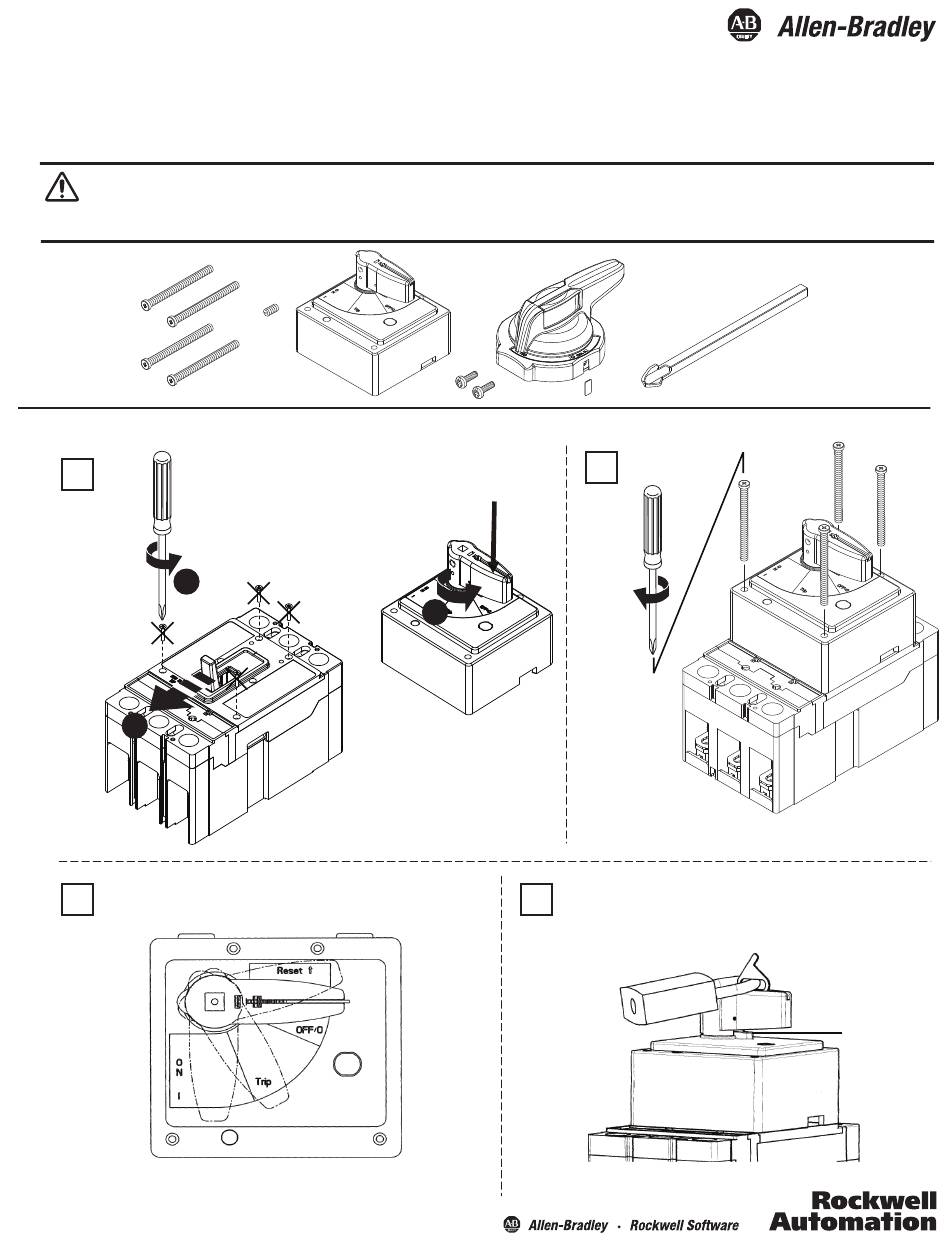

Operating Mechanism Installation
1
2
1
3
Test full range of motion
Push to
trip
button
2
Remove wire tie
after installation
0.7 - 0.9 Nm
(6 - 8 lb-in)
1
4
Customer-supplied
pad lock
Make sure tab
engages slot
