Using a MobileView Terminal With Multiple IP20 Junction Boxes
MobileView Terminal Configuration

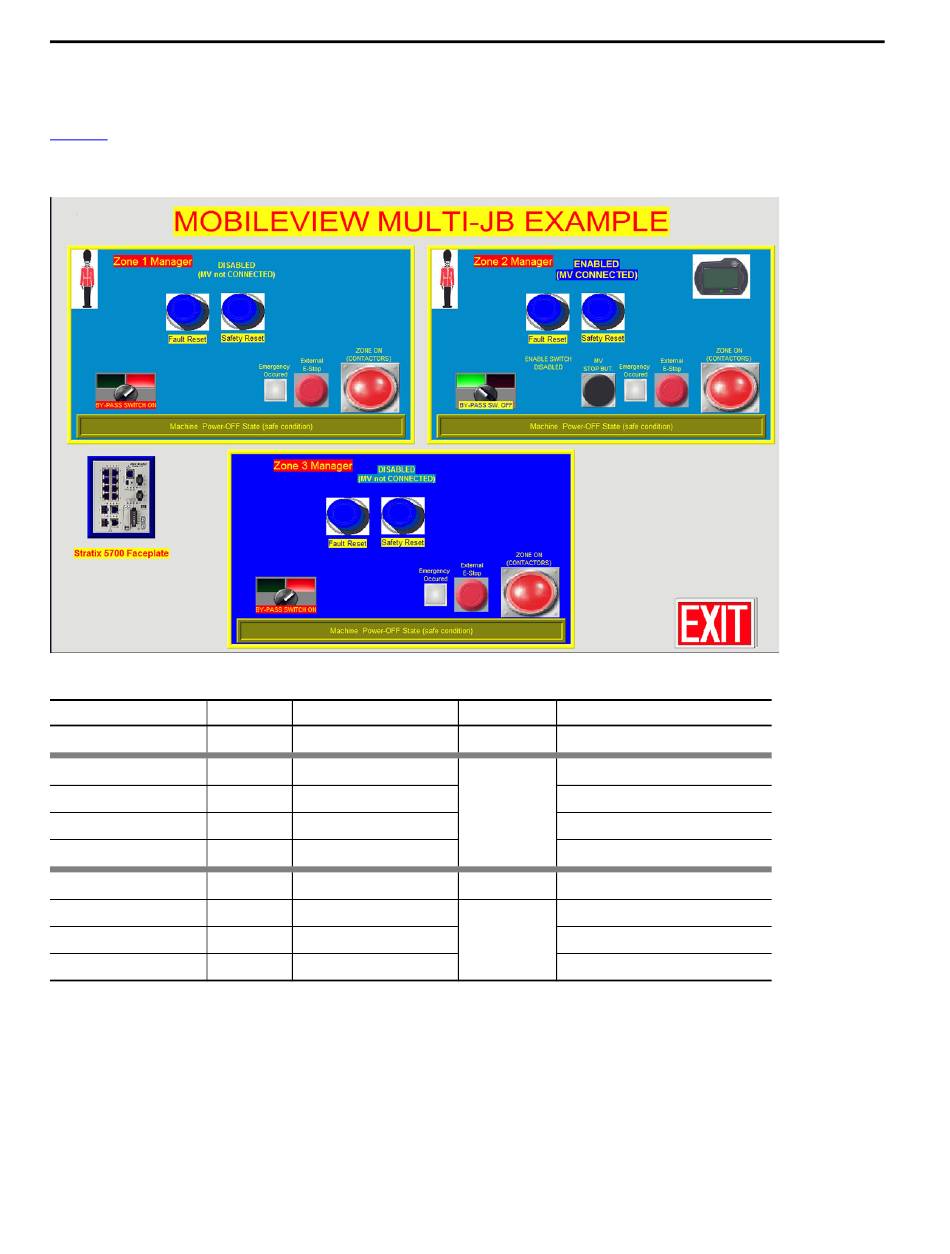

Figure 5 is an example of how the MobileView terminal can be configured for use in multiple zones.
Figure 5 - MobileView Zone Configuration Example
Table 6 - Internet Protocol (IP) Address Device List
IP Address Stratix® Port
192.168.1.10
192.168.1.7x (JB 1)
192.168.1.7x (JB 2)
192.168.1.7x (JB 3)
192.168.1.7x
192.168.1.100
192.168.1.105
192.168.1.106
192.168.1.107
12
Node/Type
— 1783-BMSG10CGN
FA1 MobileView EOI JB 1
FA2 MobileView EOI JB 2
FA3 MobileView EOI JB 3
FA4 Maintenance PC
FA5 1756-EN2T/A
FA6 1734-AENTR/B
FA7 1734-AENTR/B
FA8 1734-AENT/B
Rockwell Automation Publication 2711T-AT001B-EN-P - February 2017
Type Description
Fixed Stratix 5700
JB 1 by Stratix 5700 DHCP
JB 2 by Stratix 5700 DHCP
DHCP
JB 3 by Stratix 5700 DHCP
DHCP by Stratix 5700
Fixed Ethernet card for GuardLogix (L7x x CPUT)
Zone 3 POINT I/O safety
Fixed by rotary Zone 2 POINT I/O safety
Zone 1 POINT I/O safety
