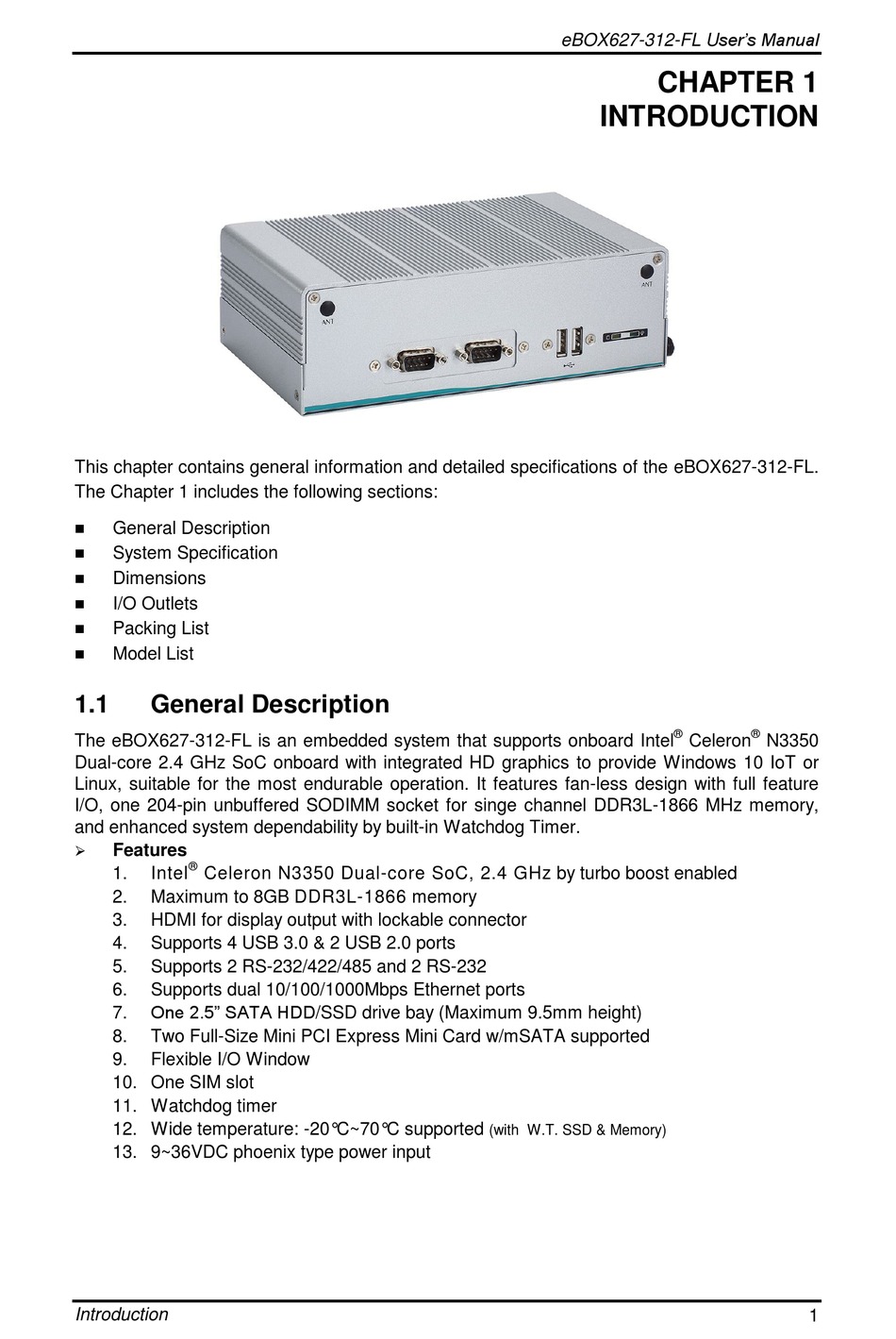

Chapter 1 Introduction; General Description - AXIOMTEK eBOX627-312-FL User Manual

This chapter contains general information and detailed specifications of the eBOX627-312-FL.
The Chapter 1 includes the following sections:


General Description

 System Specification
 Dimensions
 I/O Outlets
 Packing List
 Model List
1.1 General Description
The eBOX627-312-FL is an embedded system that supports onboard Intel
Dual-core 2.4 GHz SoC onboard with integrated HD graphics to provide Windows 10 IoT or
Linux, suitable for the most endurable operation. It features fan-less design with full feature
I/O, one 204-pin unbuffered SODIMM socket for singe channel DDR3L-1866 MHz memory,
and enhanced system dependability by built-in Watchdog Timer.
 Features
®
1. Intel Celeron N3350 Dual-core SoC, 2.4 GHz by turbo boost enabled
2. Maximum to 8GB DDR3L-1866 memory
3. HDMI for display output with lockable connector
4. Supports 4 USB 3.0 & 2 USB 2.0 ports
5. Supports 2 RS-232/422/485 and 2 RS-232
6. Supports dual 10/100/1000Mbps Ethernet ports
One 2.5" SATA HDD/SSD drive bay (Maximum 9.5mm height)
7.
8. Two Full-Size Mini PCI Express Mini Card w/mSATA supported
9. Flexible I/O Window
10. One SIM slot
11. Watchdog timer
12. Wide temperature: -20°C~70°C supported
13. 9~36VDC phoenix type power input
Introduction
eBOX627-312-FL User's Manual
CHAPTER 1
INTRODUCTION
(with W.T. SSD & Memory)
® ®
Celeron N3350
