USE OF ACCESSORIES

Floor Mount
°
1. Extender 60
extender helps operator to maintain comfortable upright position,
reducing strain and fatique.Assembled inbetween magnichanger and observation
head.
2. Rotoplate Rotoplate eliminates neck craning ,making it comfortable to view hard to see
region of mouth from 9 and 3'O clock seated position.
3. DBS and DBSi A beam splitter is inserted between magnichanger and observation head.
Light is divided into two beams. It can be 50:50 or 80:20. In case of 80:20 ratio, 80%
of light goes to observation head and 20% light goes to camera accessories.
4. Double Iris attachment An adjustable diaphragm attachment installed between
magnichanger and observation head /DBS/DBSi. It reduces incoming light and
increased depth of field, it is very useful for photography.
5. The following adapters can be attached to DBS or DBSi
- DSLR camera adapter for Nikon, Canon, and Sony cameras
- CCD camera adapter for Mintron camera
- Adapter for Sony Handy-Cam
- Assistoscope for assistant viewing
6. Attach the accessory to the left or right side of the beam splitter.
22

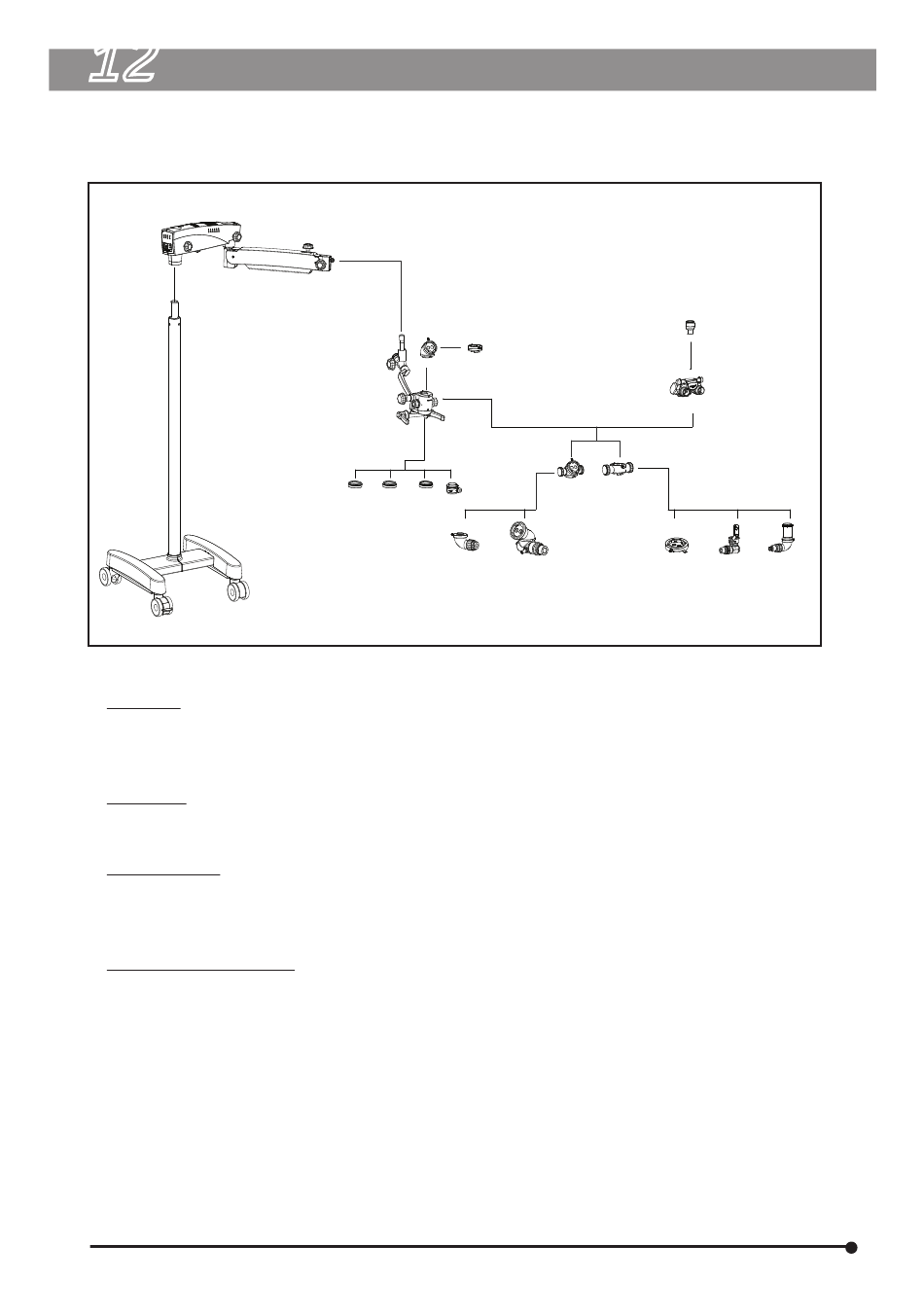

EXTENDER ROTO PLATE
CMO 400
CMO 250 CMO 350
CMO NuVar
CCD CAMERA
ASSISTOSCOPE
ADAPTER
Fig 17
Prima ENT/DNT
Part No.: 6138000-000
Model: Prima DNT
TILTING BINOCULAR HEAD
DBSi DBS
DOUBLE IRIS SONY HANDYCAM
ADAPTER
DSLR CAMERA
ADAPTER
