MICROSCOPE INSTALLATION

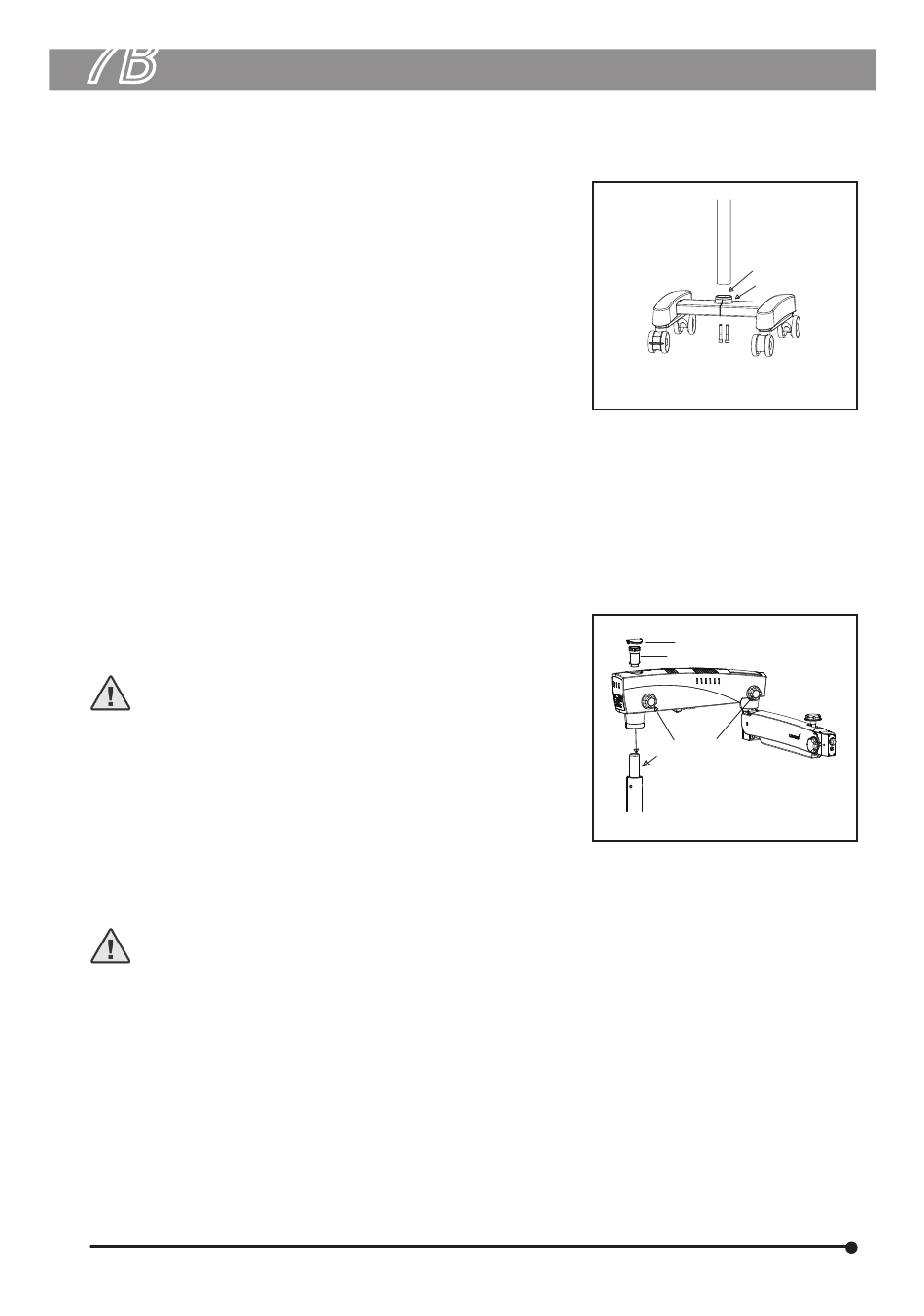

1. Open the microscope box. Remove pillar (column)
from the box. Engage this column to the base
through indexing pin, shown as B in Fig 2. Align
the tapped holes of the column with the base and
tighten two allen screws from the bottom, shown
as A in Fig 2.
2. Make sure that during assembly of the column,
ring (D) is fixed in place, as shown in Fig 2.
3. Remove the arm assembly from the box and
follow the instructions below (see Fig. 3).
A. Ensure that the swivel arm lock knob (A) is
loosened.
B. Place the arm assembly on the column shaft
(1) shown in Fig. 3.
C. Screw in the threaded plug from the top (2).
D. Put the protective cap (3) in place, and loosen
the suspension arm locking knob (B) so that it
can be rotated.
Do not unscrew knob A completely (see Fig. 3).
Loosen only a few threads; otherwise the lock
ring inside the column guide may disconnect and
installation may not possible.
14
Prima ENT/DNT
B
D
A
Fig 2
3
2
B
1 A
Fig 3
