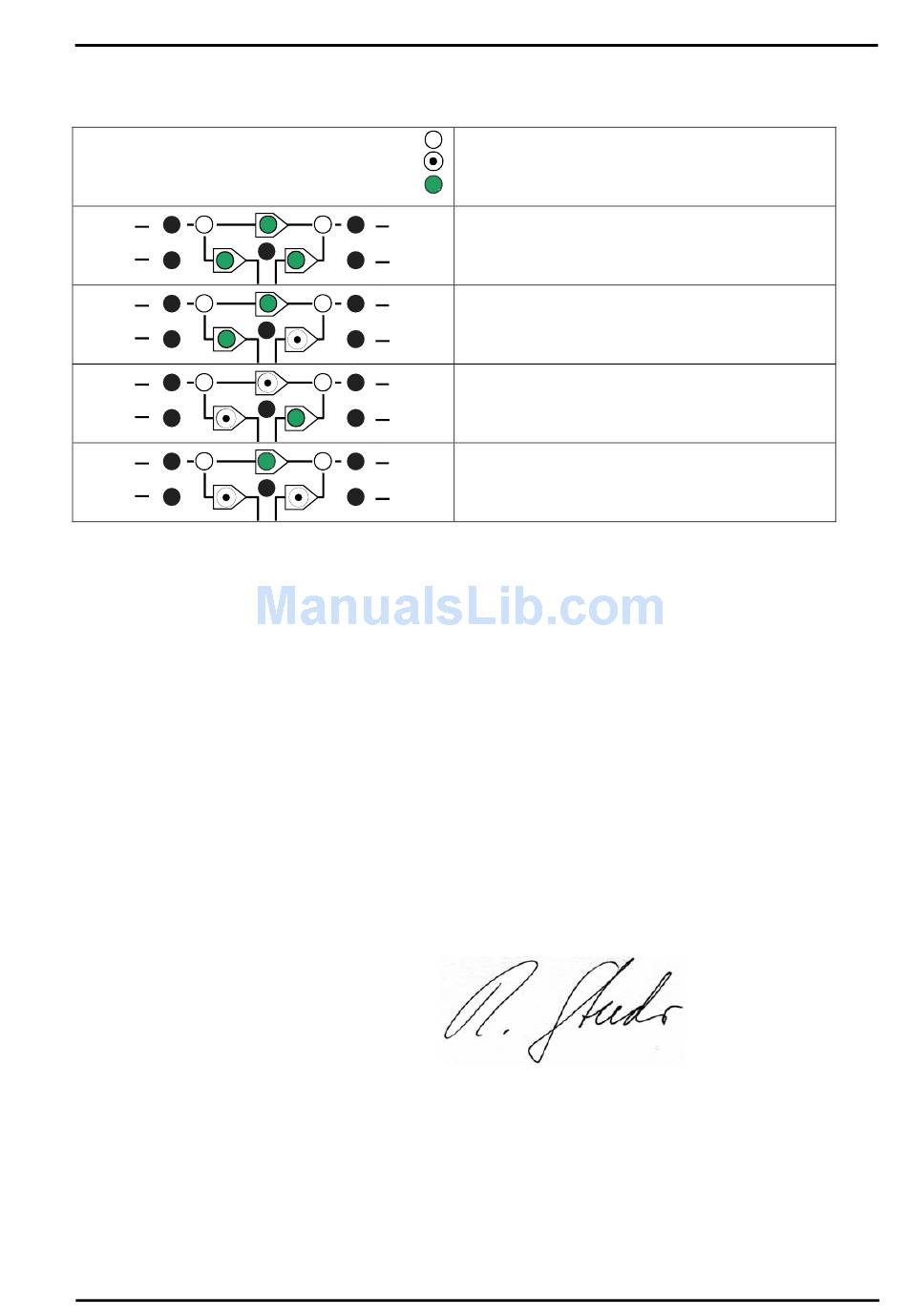

5.5.1 Diagram of the different modes
1
AC IN
CHARGER 2
1
AC IN
CHARGER 2
1
AC IN
CHARGER 2
1
AC IN
CHARGER 2

6 Maintenance

Apart from the periodic controls mentioned for the connections, the COMPACT does not need any
maintenance. Keep the appliance clean and from time to time wipe it clean with a damp cloth.

7 EC Compliance

We hereby state that the products described in this user manual meets the following standards:
EN 61000-6-1, EN 61000-6-3, EN 55014, EN 55022, EN 61000-3-2, Dir. 89/336/EEC,
LVD 73/23/EEC
st
CH-1950 Sion, 31 of March 2000
User manual
9
8
AC OUT
7
9
INVERTER
8
AC OUT
7
9
INVERTER
8
AC OUT
7
9
INVERTER
8
AC OUT
7
9
INVERTER
STUDER INNOTEC (R. Studer)
COMPACT V4.0 E
Show an off LED
Show a blinking LED
Show a lighted LED
All the functions are enabled. This is the
factory setting.
The inverter is disabled. Only the transfer
switch and the charger will work normally.
Charger and transfer switch are disabled. the
inverter will work continuously even if there is
a correct AC voltage at the input
Inverter and charger are both disabled.
Only the transfer switch function is enabled in
input voltage and frequency is OK.
COMPACT
