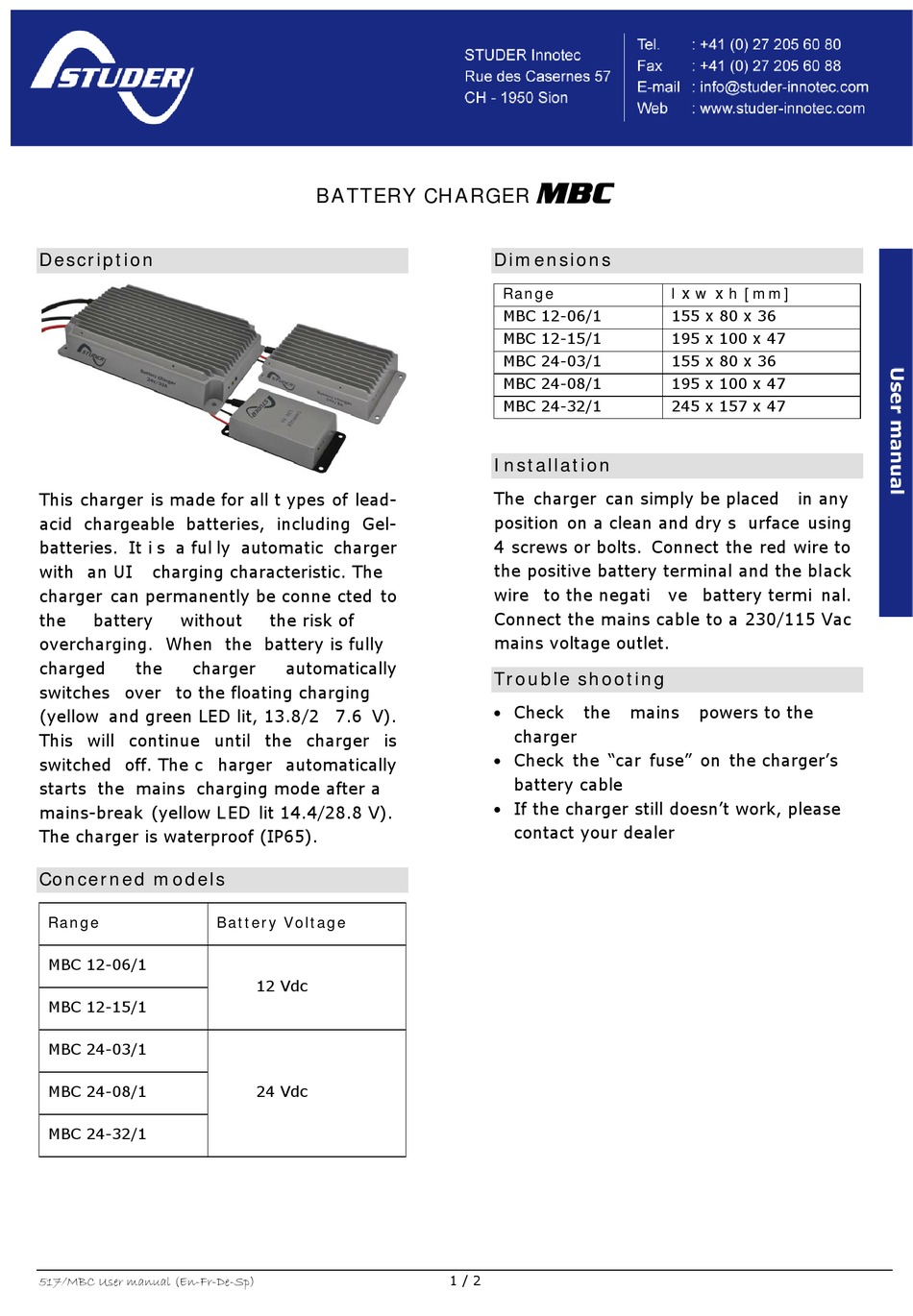

Studer MBC 12-06/1 User Manual

Description
This charger is made for all t ypes of lead-
acid chargeable batteries, including Gel-
batteries. It i s a ful ly automatic charger
with an UI charging characteristic. The
charger can permanently be conne cted to
the battery without
overcharging. When the battery is fully
charged the charger
switches over to the floating charging
(yellow and green LED lit, 13.8/2 7.6 V).
This will continue until the charger is
switched off. The c harger automatically
starts the mains charging mode after a
mains-break (yellow L ED lit 14.4/28.8 V).
The charger is waterproof (IP65).
Concerned models
Range
MBC 12-06/1
MBC 12-15/1
MBC 24-03/1
MBC 24-08/1
MBC 24-32/1
517/MBC User manual (En-Fr-De-Sp)
BATTERY CHARGER
the risk of
automatically
Battery Voltage
12 Vdc
24 Vdc
MBC
Dimensions
Range
MBC 12-06/1
MBC 12-15/1
MBC 24-03/1
MBC 24-08/1
MBC 24-32/1
Installation
The charger can simply be placed
position on a clean and dry s urface using
4 screws or bolts. Connect the red wire to
the positive battery terminal and the black
wire to the negati
Connect the mains cable to a 230/115 Vac
mains voltage outlet.

Trouble shooting

 Check the
charger
 Check the "car fuse" on the charger's
battery cable
 If the charger still doesn't work, please
contact your dealer
1 / 2
l x w x h [mm]
155 x 80 x 36
195 x 100 x 47
155 x 80 x 36
195 x 100 x 47
245 x 157 x 47
in any
ve battery termi nal.
mains powers to the
