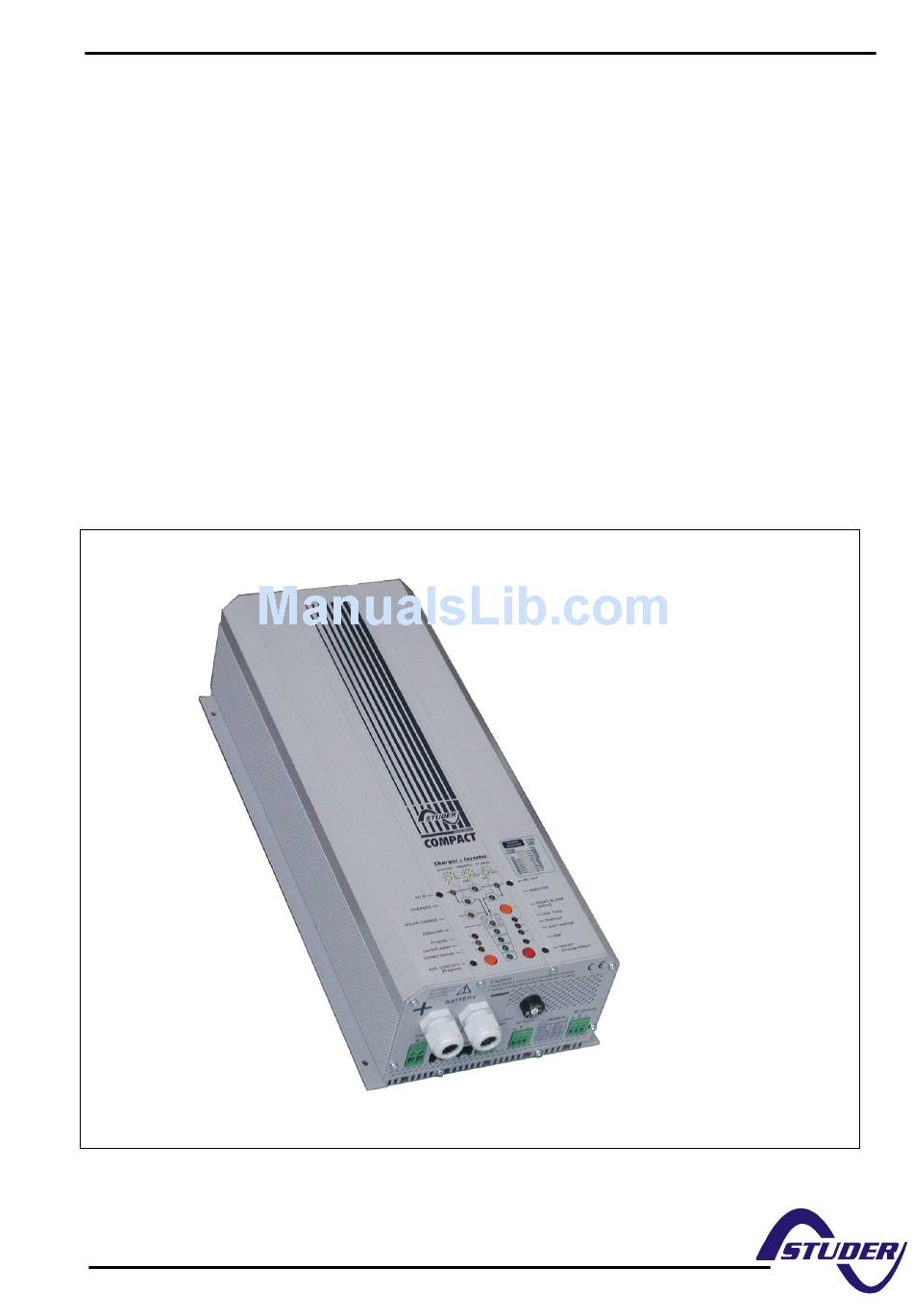

Sinewave Inverter, Battery charger
COMPACT C1312
COMPACT C1312
COMPACT C1312
COMPACT C1312
COMPACT C2324
COMPACT C2324
COMPACT C2324
COMPACT C2324
COMPACT C3548
COMPACT C3548
COMPACT C3548
COMPACT C3548
Temperature sensor CT-35
Remote control RC-01
Solar charge regulator Cxxxx-S
Remote power sharing RPS-01
AC cable cover CFC-01
IP-23 top cover CxxxxIP23
TEL: ++41 (0)27 205 60 80
FAX: ++41 (0)27 205 60 88
info@studer-inno.com
COMPACT V2.0 E
COMPACT
COMPACT
COMPACT
COMPACT
Advertisement
Table of Contents
Related Manuals for Studer C2324 COMPACT
Summary of Contents for Studer C2324 COMPACT
- Page 1 STUDER INNOTEC User and installer Manual Sinewave Inverter, Battery charger Solar charge regulator Cxxxx-S Remote power sharing RPS-01 STUDER INNOTEC Rue des Casernes 57 CH-1950 SION User manual COMPACT C1312 COMPACT C1312 COMPACT C1312 COMPACT C1312 COMPACT C2324 COMPACT C2324...
-
Page 2: Table Of Contents
STUDER INNOTEC Index table GENERAL INFORMATION... 4 1.1 O PERATING INSTRUCTIONS 1.2 Q UALITY AND ARRANTY 1.3 W ... 4 ARRANTY ISCLAIMER 1.4 L ... 4 IABILITY ISCLAIMER 1.5 P ... 4 RECAUTIONS 1.6 S ... 5 PECIAL RECAUTIONS INTRODUCTION ... 6 ... - Page 3 STUDER INNOTEC 4.7.3 Delayed mode of the Transfer System... 17 4.8 T OLAR CHARGE REGULATOR 4.9 T ULTIFUNCTIONAL ONTACT 4.10 T ... 18 EMOTE ONTROL 4.11 T EMPERATURE SENSOR PROGRAMMING... 19 5.1 S ... 19 TANDARD SETTING 5.1.1 Working mode... 19 5.1.2...
-
Page 4: General Information
Respecting this manual, servicing and method of installation, functioning, application and maintenance of the appliance can not be controlled or supervised by Firma Studer INNOTEC. Hence we do not accept any liability and responsibility for damages, loses and costs which result... -
Page 5: Special Precautions
The whole installation connected with the COMPACT must comply with the respective valid codes and ordinances. Persons without the written authorization from Studer INNOTEC are strictly forbidden to carry out any changes or repairs on the appliances. For authorized changes only original parts are to be used. -
Page 6: Introduction
STUDER INNOTEC 2 Introduction The COMPACT is a sine wave inverter with integrated battery charger and solar charger regulator with many additional functions, it has been developed to be used as stand-alone (independent of a grid-system) AC provider, or as continuous / break-free current supply provider. -
Page 7: The Solar Charge Regulator (Optional)
STUDER INNOTEC 2.2.4 The solar charge regulator (optional) With the built-in solar charge regulator, the COMPACT is a complete solar-power-center. In a solar installation this regulator ensures that the batteries are charged correctly. With the COMPACT, batteries can be charged with a generator and with the solar modules at the same time. The charging of batteries with both energy sources is carried out fully automatically. -
Page 8: Parallel- Series Connection
STUDER INNOTEC 2.3.3 Parallel- Series Connection: 3 Assembly 3.1 Place of assembly The location of the COMPACT must be chosen by the following criteria: Protection from unauthorized handling. Dry dust free room, no condensation. Never install directly over the battery and never in a cabinet together with the batteries. -
Page 9: Protection Cover For The Terminals Connections
STUDER INNOTEC 3.3.2 Protection cover connections The protection is available in option (Order ref. CFC-01) and avoid to do wrong hazardous connection on the terminals 230Vac. It mounted with strain relief clamps for the cable. 3.4 Connecting Plan / Front side... -
Page 10: Cabling/Wiring
STUDER INNOTEC AC Output Caution… Don‘t … 15A Protection Remote Power Sharing Cabling/wiring Connecting of the COMPACT is a very important step in the installation. You must take care that all connecting work is carried out in a clean and correct manner and under no circumstances that a cable is connected to a wrong terminal. -
Page 11: Connect The Solarmodules: Solar +/- (Only For Solar Option)
STUDER INNOTEC 3.5.5 Connect the Solarmodules: SOLAR +/- (Only for solar option) Solar modules are connected on these terminals. Under no circumstances should any other energy source i.e. wind generator be connected to these terminals! Only solar modules must be connected with two cables +/-. -
Page 12: Operating
STUDER INNOTEC Operating 4.1 Display and operating control elements INPUT LIMIT AC IN CHARGER SOLAR CHARGE EQUALIZE Program Contact active Contact manual AUX. CONTACT (Program) User manual Cha r g er - I n ver t er CHARGER TRANSFER STANDBY... -
Page 13: Light Emitting Diodes
STUDER INNOTEC 4.2 Light Emitting Diodes: Marking LED lit AC IN Voltage corresponding to self- adjusted values is at the AC IN input. CHARGER Battery Charger is working SOLAR Connected CHARGE delivering energy Program Program mode for Aux. Contact Contact active Auxiliary Contact is activated Contact manual Aux. -
Page 14: The Inverter
STUDER INNOTEC 4.5 The Inverter An Inverter is built in the COMPACT, which generates a sinusoidal alternating voltage of a very high quality. With this Inverter any alternating voltage consuming device 230Vac up to the nominal power of your COMPACT can be operated. Thanks to the generous dimensioning of the COMPACT, you can operate appliances requiring higher power than the nominal power of the COMPACT for a short time. -
Page 15: The Battery Charger
STUDER INNOTEC 4.6 The Battery charger 4.6.1 Cycle of charge The full automatic COMPACT Battery Charger is adjusted at the factory so that most lead-acid and lead-gel batteries can be charged to the maximum. As soon as the minimum alternating voltage for the AC IN set on the Turning Knob 23 is available at the input (LED 1 AC IN is lit), the Battery Charger is switched on automatically (LED 2 CHARGER is lit). -
Page 16: Charging Current
STUDER INNOTEC the OUTPUT less it’s give to the charger. Priority for the OUTPUT. When the power sharing is used the LED 200% (red) is lit to point out that’s the charge is limited. Caution: If the power use on the OUTPUT is higher than the value of the INPUT LIMIT (26) -
Page 17: Set The Transfer Voltage Threshold
STUDER INNOTEC Note: In the Inverter operation, The COMPACT generates a true sinusoidal and quartz stabilized output voltage. When, however the COMPACT is supplied from a grid or a generator and the transfer contact is active, then you have at the output AC OUT the same voltage as that at the input. -
Page 18: The Remote Control
STUDER INNOTEC Maximum Contact load: With the Push Button 21 „AUXILARY CONTACT“ the contact can be manually switched on or off independent of programming and the operating situation. The LED 5 “Contact active” show the state of the contact. The drawing up the screw terminal “AUX CONTACT” is the inactive position mode, LED 5 “Contact active”... -
Page 19: The Temperature Sensor
STUDER INNOTEC 4.11 The Temperature sensor Operating voltage of lead-acid batteries change depending on the temperature. To correct the operating voltages according to the actual temperatures, a temperature sensor can be connected to the COMPACT. The compensation through the sensor is –3mV/°C/Cell. -
Page 20: Set The Voltage And Timing Threshold
STUDER INNOTEC 5.3.2 Set voltage threshold The programming is done in accordance with the following steps: Push and hold down, the Push Button 21 (Program) Push (Change status) for minimum 2 seconds simultaneously. With the Push Button 20 (select) select with of the battery level and the absorption time to be changed. -
Page 21: User Manual Compact V2.0 E
STUDER INNOTEC 5.4.3 Example 5.4.3.1 Auxiliary Contact as generator starter When in the programming of the Auxiliary Contact, the Battery Capacity (LED 15-18) is used as a condition, then you must take note of the following requirements. If you have to start an emergency back-up supply with a battery having a certain residual capacity, then two battery levels must be programmed. -
Page 22: Diagram Of The Different Mode
AC voltage at the input INVERTER Inverter and charger are both disabled. AC OUT Only the transfer switch function is enabled in input voltage and frequency is OK. INVERTER STUDER INNOTEC (R. Studer) COMPACT V2.0 E COMPACT COMPACT COMPACT COMPACT... -
Page 23: Technical Data
STUDER INNOTEC 8 Technical Data Type Inverter Nominal battery voltage Input voltage range Nominal power (W) Maximum power 30 min Maximum power 3min. Maximum power 5 sec Maximum load Asymmetrical load max. Standby adjustable Cos ϕ Maximum efficiency Power OFF, Standby, ON...
