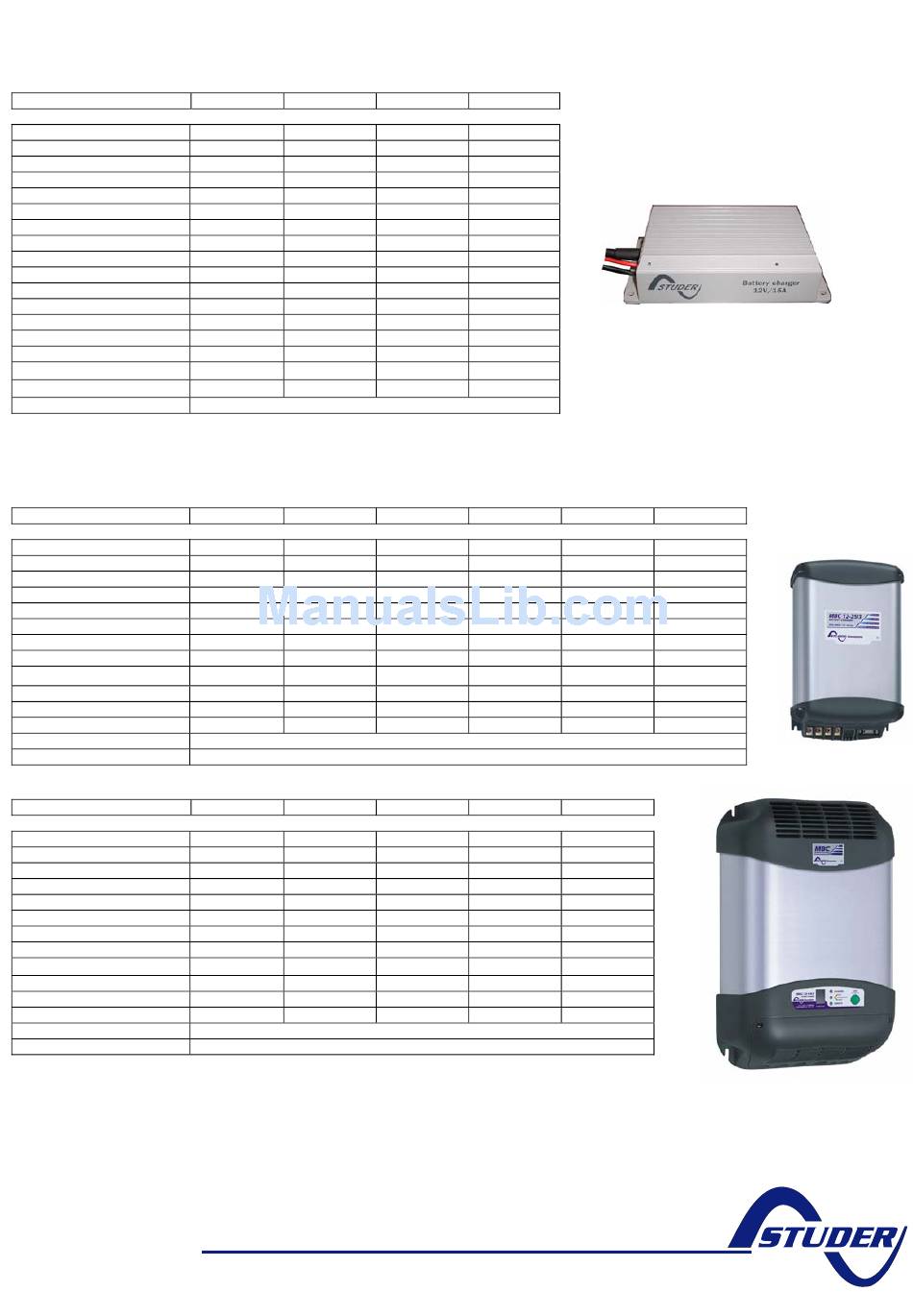

MBC Battery chargers, switch-mode, 3-STEP, IP65
Type
Battery voltage (Vdc)
Input voltage (Vac)
Charge voltage (boost)
Charge voltage (float)
Output (Amp.)
Cooling
Outputs
Frequency
Efficiency
Ambient temp. range
Dimensions lxwxh (mm)
Weight (kg)
Recommanded battery capacity
Switch over current (A)
Secondary fuse (A)
Input wired (Vac)
Output wired (Vdc)
Warranty
MBC Battery chargers, switch-mode, 3-STEP
Type
Battery voltage (Vdc)
Input voltage (Vac)
Charge absorption volt. (Vdc)
Charge float voltage (Vdc)
Output (Amp.)
Cooling
Outputs
Frequency
PFC
Ambient temp. range
Dimensions lxwxh (mm)
Weight (kg)
EMC class
Warranty
* GEL batteries
Type
Battery voltage (Vdc)
Input voltage (Vac)
Charge voltage (boost) (Vdc) *
Charge voltage (float) (Vdc) *
Output (Amp.)
Cooling
Outputs
Frequency
PFC
Ambient temp. range
Dimensions lxwxh (mm)
Weight (kg)
EMC class
Warranty
* GEL batteries
STUDER Innotec
Rue des Casernes 57
CH – 1950 Sion
MBC 12-06/1
MBC 12-15/1
12
12
100-260
100-260
14.4
14.4
13.8
13.8
6
15
Heat sink
Heat sink
1
1
40-60 Hz
40-60 Hz
> 85 %
> 85 %
-25 to 50°C
-25 to 50°C
155x80x36
195x100x47
0.9
1.8
18-60 Ah
45-150 Ah
0.17-0.23
0.68-0.92
7.5
20
✔
✔
✔
✔
2 years

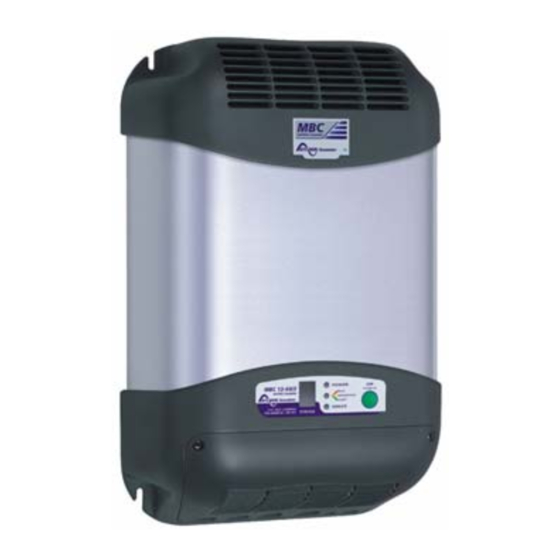

MBC 12-08/2
MBC 12-12/2
12
12
115-230
115-230
14.1 (14.4*)
14.1 (14.4*)
13.5 (13.8*)
13.5 (13.8*)
8
12
Natural
Fan
2
2
45-66 Hz
45-66 Hz
-20 to +70°C
-20 to +70°C
155x205x75
155x205x75
1.3
1.4
MBC 12-80/3
MBC 24-12/2
12
24
83-280
115-230
14.1 (14.4*)
28.2 (28.8*)
13.5 (13.8*)
27.0 (27.6*)
80
12
Fan
Fan
3
2
45-66 Hz
45-66 Hz
✔
-20 to +70°C
-20 to +70°C
272x495x127
155x268x75
7.1
2.3
Tel. : + 41 (0) 27 205 60 80
Fax : + 41 (0) 27 205 60 88
MBC 24-03/1
MBC 24-08/1
24
24
100-260
100-260
28.8
28.8
27.6
27.6
3
8
Heat sink
Heat sink
1
1
40-60 Hz
40-60 Hz
> 85 %
> 85 %
-25 to 50°C
-25 to 50°C
155x80x36
195x100x46
0.9
1.8
9-30 Ah
24-80 Ah
0.17-0.23
0.34-0.46
7.5
15
✔
✔
✔
✔
MBC 12-25/3
MBC 12-30/3
12
12
115-230
83-280
14.1 (14.4*)
14.1 (14.4*)
13.5 (13.8*)
13.5 (13.8*)
25
30
Fan
Fan
3
3
45-66 Hz
45-66 Hz
✔
-20 to +70°C
-20 to +70°C
155x268x75
272x334x127
2.3
4.2
EN 55022/B
2 years
MBC 24-30/3
MBC 24-60/3
24
24
83-280
150-280
28.2 (28.8*)
28.2 (28.8*)
27.0 (27.6*)
27.0 (27.6*)
30
60
Fan
Fan
3
3
45-66 Hz
45-66 Hz
✔
✔
-20 to +70°C
-20 to +70°C
272x412x127
272x495x127
5.4
7.1
EN 55022/B
2 years
MBC 12-15/1
MBC 12-40/3
MBC 12-60/3
12
12
83-280
83-280
14.1 (14.4*)
14.1 (14.4*)
13.5 (13.8*)
13.5 (13.8*)
40
60
Fan
Fan
3
3
45-66 Hz
45-66 Hz
✔
✔
-20 to +70°C
-20 to +70°C
272x334x127
272x412x127
4.2
5.4
MBC 24-80/3
24
150-280
28.2 (28.8*)
27.0 (27.6*)
80
Fan
3
45-66 Hz
✔
-20 to +70°C
272x495x127
7.1
info@studer-innotec.com
www.studer-innotec.com
MBC 12-25/3
MBC 12-60/3
548/mbc
