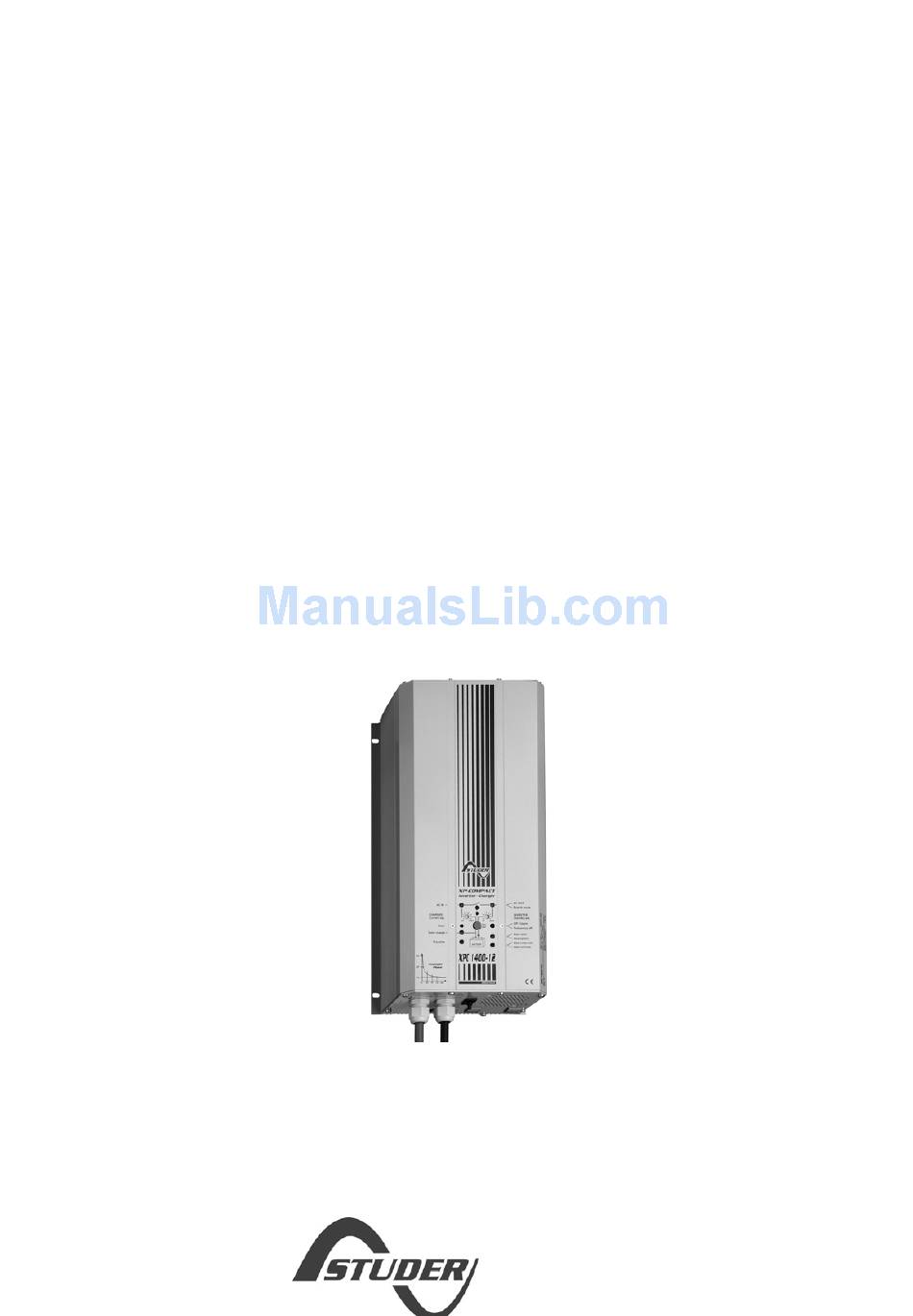

Sine wave Inverter, Battery charger, Transfersystem
STUDER INNOTEC
Rue des Casernes 57
CH – 1950 Sion
User's and installer's Manual
XP-COMPACT - XPC 1400-12
XP-COMPACT - XPC 2200-24
XP-COMPACT - XPC 2200-48
Temperature sensor CT-35
Remote control RCC-01
Solar charge regulator Cxxxx-S
AC cable cover CFC-01
IP-23 top cover C-IP23
TEL : ++41 (0)27 205 60 80
FAX : ++41 (0)27 205 60 88
E-MAIL : info@studer-innotec.com
Advertisement
Table of Contents
Related Manuals for Studer Cable Cover CFC-01
Summary of Contents for Studer Cable Cover CFC-01
- Page 1 Solar charge regulator Cxxxx-S STUDER INNOTEC Rue des Casernes 57 CH – 1950 Sion Remote control RCC-01 AC cable cover CFC-01 IP-23 top cover C-IP23 TEL : ++41 (0)27 205 60 80 FAX : ++41 (0)27 205 60 88 E-MAIL : info@studer-innotec.com...
-
Page 2: Table Of Contents
STUDER INNOTEC English description ... 5 General Information... 5 Operating instructions ... 5 Quality and Warranty ... 5 Warranty Disclaimer... 5 Liability Disclaimer... 6 Warning ... 6 Special precautions ... 6 Introduction... 7 Principle schematic ... 7 Description of the main functions... 8 Battery connecting... -
Page 3: Temperature Sensor Ct
− Running liquid or oxidation through condensation in the appliance − Defects caused by force, physical or mechanical means − Changes not explicitly authorized by STUDER INNOTEC − Not or only partly tightened screws and nuts after change of fuses or cables connecting −... -
Page 4: Liability Disclaimer
Similarly, we do not accept any liability for any violation of the patents rights or violation of any third party’s rights resulting from the use of this appliance STUDER INNOTEC reserves the right to modify the technical data or these operating instructions without any prior notice. -
Page 5: Introduction
STUDER INNOTEC − Plenty of fresh water and soap must be ready at hand so that in case of acid coming in contact with skin, eyes and clothes, the areas in question can be thoroughly washed. − If acid enters the eyes, you must thoroughly wash them with cold running water for at least 15 minutes. -
Page 6: Description Of The Main Functions
STUDER INNOTEC XP-COMPACT connection between Neutral and earth in inverter mode only may be done by installing a bridge internally to the unit. Please contact your installer regarding this point. (2) Remote control for remote adjustment of the input limit. (see chap. 4.6.3) Description of the main functions 2.2.1 The inverter... -
Page 7: Battery Connecting
STUDER INNOTEC XP-COMPACT Battery connecting Lead-acid batteries are normally available in blocks of 2V, 6V or 12V. In most cases, to generate the necessary operating voltage and the capacity of the batteries for the XP-COMPACT many batteries have to be connected together in parallel and or in series. -
Page 8: Mounting And Installing
STUDER INNOTEC Mounting and installing Installation place The location of the XP-COMPACT must be driven by the following criteria: − Protection from unauthorized handling − Dry dust free room, no condensation − Never install directly over the battery and never in a cabinet together with the batteries −... -
Page 9: Connection Plan
STUDER INNOTEC 3.3.2 Protection cover connections The protection is available as an option (Order ref. CFC-01) and avoid to do wrong hazardous connection on the terminals 230Vac. It mounted with strain relief clamps for the cable. Connection Plan A Battery +/- B SOLAR +/- C Remote contr. -
Page 10: Cabling
STUDER INNOTEC Cabling Connecting the XP-COMPACT is a very important step of the installation. You must take care that all connection work is carried out in a clean and correct way and that under no circumstance a cable is connected to a wrong terminal. -
Page 11: Control
STUDER INNOTEC 3.6.4 Connect the solar modules: SOLAR +/- (Only for solar option) Solar modules are connected on these terminals. Under no circumstances should any other energy source i.e. wind generator be connected to these terminals! Only solar modules must be connected with two cables +/-. Depending on the power of the modules, the cable cross section should be 2.5 up to 6mm2. -
Page 12: Display And Control Parameters On Remote Control Panel (Optional)
STUDER INNOTEC Display and control parameters on remote control panel (optional) Light Emitting Diodes (LED) Marking LED lit Voltage corresponding to AC IN self-adjusted values is at the AC IN input. Battery charger is working CHARGER Connected solar SOLAR modules are... -
Page 13: Push Buttons
STUDER INNOTEC For the time being the XP-COMPACT Over Temp. is out of service because of overheating. The XP-COMPACT is out of service Overload because of overload or short- circuit Batt. Battery voltage is Low/High too low XP-COMPACT is turned off. Turning it back on is only possible manually. -
Page 14: The Battery Charger
STUDER INNOTEC XP-COMPACT 4.6.1 Charge detection system „Standby“ In order to avoid unnecessary discharge of the battery, the inverter switches OFF automatically if no appliance is connected and switches ON automatically again if appliance is connected. The LED 8 blinks if the inverter is in Standby-Mode. The switching-on/starting level can be adjusted with the turning knob 24 „STANDBY”. - Page 15 STUDER INNOTEC XP-COMPACT at the input (LED 1 AC IN is lit), the Battery Charger is switched on automatically (LED 2 CHARGER is lit). The battery is fully automatically charged matching to the charge level, the adjusted volt-age levels and the charge current. Thanks to the built- in Float Charge System, the batteries can be left connected for unlimited time with the Battery Charger switched on.
-
Page 16: The Transfer System
STUDER INNOTEC Equalization mode should never be used when using Gel-Batteries. 4.7.4 Charging current The maximum charging current for the battery can be adjusted with the Turning Knob 22 (CHARGER). The charging current of the battery should be set to approximately 10 –... - Page 17 STUDER INNOTEC XP-COMPACT lit. The inverter is switched off and the battery charger switched on. This process is automatic, unless the charger mode or the transfer mode is disabled (see Chap. 5.5). The maximum current of the Transfer switch is 16A. That means through this system, consuming devices up to a maximum of al 3700 Watt can be operated.
-
Page 18: The Solar Charge Controller (Option)
STUDER INNOTEC The Solar charge controller (option) The XP-COMPACT also has a Solar Charge Controller built in. For charging the batteries, Solar modules can be connected to the screw terminal SOLAR +/-. The in- built controller is a „Shunt controller“ for the maximum input current of 30A for XPC 1400-12 and XPC 2200-24 and 20A for XPC 2200-48. -
Page 19: The Remote Control Rcc-01
STUDER INNOTEC 4.11 The Remote Control RCC-01 As an option, a Remote Control can be connected to XP-COMPACT. operating controls displays except from level adjustment are available on Remote Control. Remote Control is supplied with a 20m long cable. It can as long as 40m. -
Page 20: Programming (Possible Only With The Remote Control Rcc-01)
STUDER INNOTEC Programming (possible only with the remote control RCC-01) The XP-COMPACT (except for 60Hz versions) is equipped with a Flash processor fitted out with EEPROM Memory, which means that even when it is disconnected from the battery, the parameters that were programmed for the application remain after a new connection to the battery. -
Page 21: Auxiliary Contact
STUDER INNOTEC With the Push Button 19 (Change status) set the desired parameter (voltage or time) to modify (LED 14/ 15/16/17/18). Push Button 19 (Change status) to set the desired value according to the table 5.3.2. If desired, repeat the operation with any other parameter (voltage or time) to be changed. - Page 22 STUDER INNOTEC are automatically stored and the XP-COMPACT switches back to normal operating condition. 5.4.3 Auxiliary Contact as generator starter As per the battery capacity When in the programming of the Auxiliary Contact, the Battery Capacity (LED 15-18) is used as a condition, you must then take note of the following requirements.
-
Page 23: Disabling Some Of The Xp-Compact Functions
STUDER INNOTEC The Auxiliary Contact can be operated at any time with the Push Button 21 (AUX. CONTACT). The LED 6 „Contact manual“ lights up as information that the Contact is manually operated, and LED 5 „Contact active“ lights up when the Contact is active. -
Page 24: Installation Maintenance
Hereby we state that the products described in this user manual comply with the following standards: EN 61000-6-1, EN 61000-6-3, EN 55014, EN 55022, EN 61000-3-2, Dir. 89/336/EEC, LVD 73/23/EEC, EN 50091-2, EN 60950-1. CH - 1950 Sion, the 1st of March 2003 STUDER INNOTEC (R. Studer) XP-COMPACT V5.4 XP-COMPACT 26/77... -
Page 25: Technical Data
STUDER INNOTEC XP-COMPACT Technical Data XP-COMPACT V5.4 27/77...
