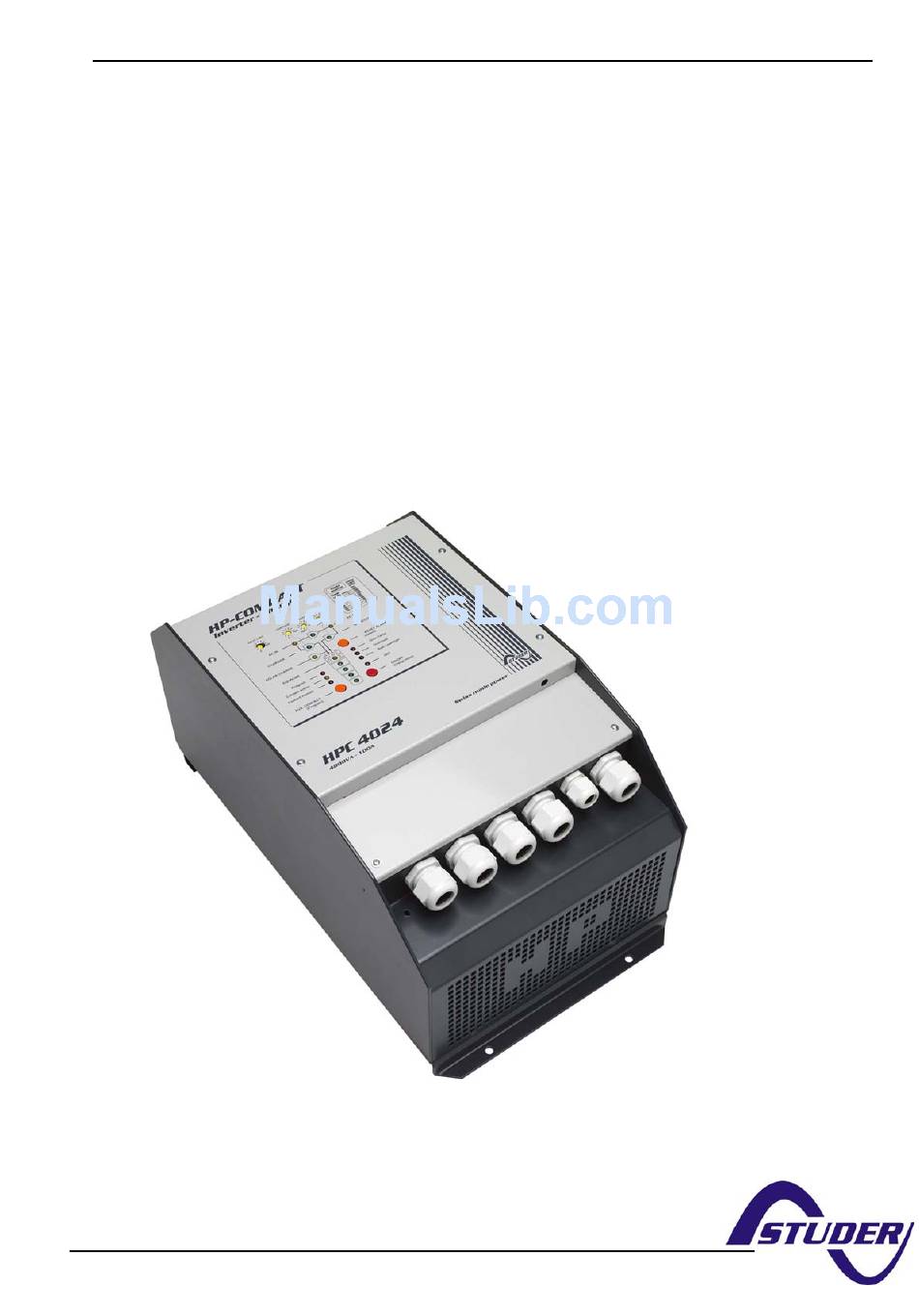

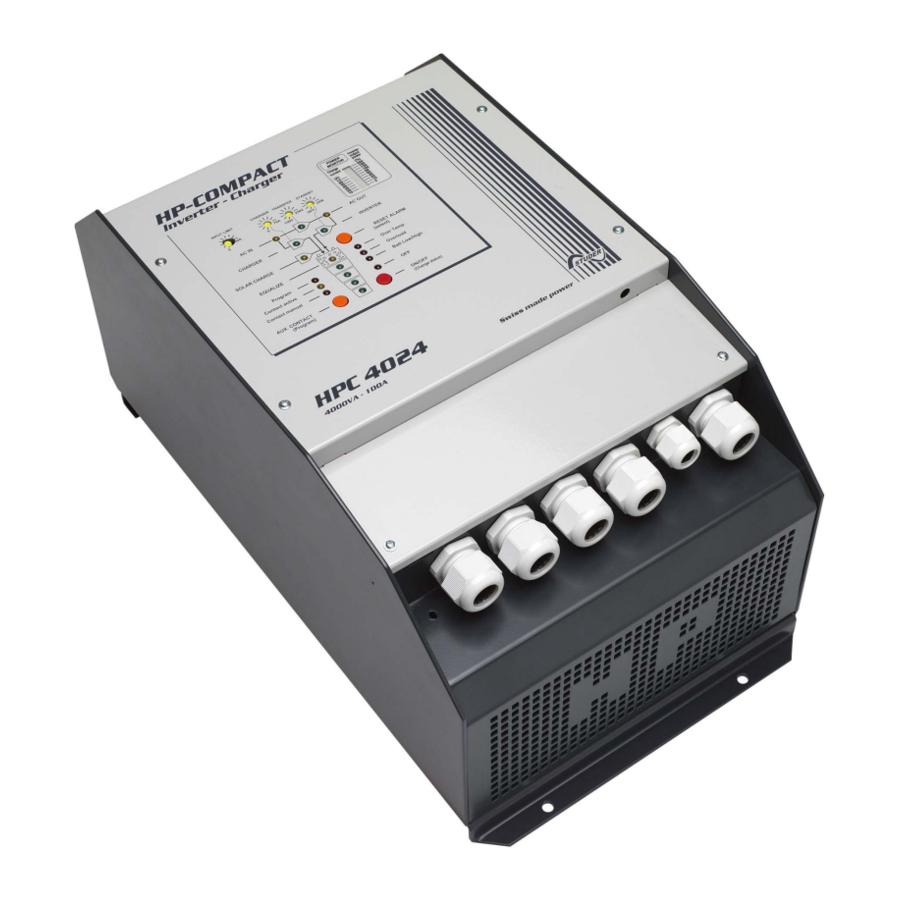

- Page 1 STUDER INNOTEC User and installer Manual Sine wave Inverter, Battery charger, Transfersystem HP-COMPACT - HPC 2512 HP-COMPACT - HPC 4024 HP-COMPACT - HPC 5048 HP-COMPACT - HPC 7048 Remote power sharing RPS-01 STUDER INNOTEC Rue des Casernes 57 CH -1950 SION...
-
Page 2: Table Of Contents
STUDER INNOTEC Summary GENERAL INFORMATION...3 ...3 PERATING INSTRUCTIONS ...3 UALITY AND ARRANTY ...3 ARRANTY ISCLAIMER ...3 IABILITY ISCLAIMER ...4 RECAUTIONS ...4 PECIAL RECAUTIONS INTRODUCTION ...5 ...5 RINCIPLE SCHEMATIC ESCRIPTION OF THE MAIN FUNCTIONS ...6 ATTERY CONNECTING MOUNTING AND INSTALLING...7 ...7 NSTALLATION PLACE ...8... -
Page 3: General Information
1.4 Liability Disclaimer Respecting this manual, servicing and method of installation, functioning, application and maintenance of the appliance can not be controlled or supervised by STUDER INNOTEC. Hence we do not accept any liability and responsibility for damages, losses and costs... -
Page 4: Precautions
Similarly, we do not accept any liability for any violation of the patents rights or violation of any third party’s rights resulting from the use of this appliance STUDER INNOTEC reserves the right to modify the technical data or these operating ins- tructions without any prior notice. -
Page 5: Introduction
STUDER INNOTEC Under certain conditions HP-COMPACT or a connected generator can start automatically. While working on an electrical installation you must ensure that these appliances are dis- connected beforehand from the installation. 2 Introduction The HP-COMPACT is a sine wave inverter with integrated battery charger with many addi- tional functions, it has been developed to be used as stand-alone (no grid-feeding) AC provider, or as continuous / break-free current supply provider (UPS). -
Page 6: Battery Connecting
STUDER INNOTEC HP-COMPACT park is being charged. The distribution of energy between the consumer appliances and battery charger is automatic. 2.2.3 The battery charger The built-in battery charger is so designed that it can charge the battery quickly and fully. A microprocessor controlled, Step charging process, ensures the optimal charging of the battery. -
Page 7: Mounting And Installing
STUDER INNOTEC 2.3.2 Connection in serie 2.3.3 Connection in parallel and in serie 3 Mounting and installing 3.1 Installation place The location of the HP-COMPACT must be driven by the following criteria: - Protection from unauthorized handling - Dry dust free room, no condensation... -
Page 8: Fixing
STUDER INNOTEC HP-COMPACT 3.2 Fixing 3.2.1 HP-COMPACT Basically the HP-COMPACT can be installed in any desired location but only vertically. First of all the plate supplied along with the HP-COMPACT must be screwed firmly (due to the weight of the device) on the wall. Then the HP-COMPACT is hooked on the plate and screwed underneath. -
Page 9: Temperature Sensor Ct
STUDER INNOTEC 3.4 Connection Plan Remote control RCT-01 temperature sensor CT35 remote power sharing RPS-01 Battery +/- Reserved Remote contr. Transfer delay Equalize Temp. Aux. Contact AC Input ID Plate AC Output Reserved Hole Protection 3.5 Cabling Connecting the HP-COMPACT is a very important step of the installation. You must take care that all connection work is carried out in a clean and correct way and that under no circumstance a cable is connected to a wrong terminal. -
Page 10: Pre-Installation Settings
Caution: before connecting the battery, check carefully the voltage and the battery polarity with a voltmeter. A polarity reverse will seriously damage the inverter (for example: con- necting a HPC2512 to a 48V-Battery). Get the batteries ready for connection: suitable terminals, fuse on one of the connection points, cable in good shape with, if necessary, terminals rightly set. - Page 11 STUDER INNOTEC HP-COMPACT riously damage the HP-COMPACT. For instance the connection of a 24 V battery with the HP-COMPACT 2512. If by mistake the HP-COMPACT has been wrongly been connected (reverse battery polar- ity) it is likely that the internal protection fuse has melted and has to be replaced. In that case it is necessary to disconnect all connections to the HP-COMPACT, including the bat- tery.
-
Page 12: Control
STUDER INNOTEC 4 Control 4.1 Display and control parameters INPUT LIMIT AC IN CHARGER EQUALIZE Program Contact active Contact manual AUX. CONTACT (Program) 4.2 Light Emitting Diodes (LED) Marking LED lit AC IN Voltage corresponding to self- adjusted values is at the AC IN input. -
Page 13: Push Buttons
STUDER INNOTEC Reserved Program Program Contact Contact active Auxiliary Contact is activated Contact man- Aux. Cont. manually activated TRANSFER Transfersystem is active. In- coming voltage is being sent directly to AC OUT outlet AC OUT There is a voltage at the AC... - Page 14 STUDER INNOTEC HP-COMPACT The Inverter mode is displayed through LED 9 (Inverter). If the Inverter Mode is disabled (see chap. 5.5) LED 9 will blink. If the LED 9 is lit, the Inverter is in operation and you have 230Vac at the output AC OUT. The actual power of the connected appliance is displayed on the power monitor 25 and on the Remote Control.
-
Page 15: The Battery Charger
STUDER INNOTEC 4.6 The battery charger 4.6.1 Cycle of charge The full automatic HP-COMPACT Battery Charger is adjusted at the factory so that most lead-acid and lead-gel batteries can be charged to the maximum. As soon as the minimum alternating voltage for the AC IN set on the Turning Knob 23 is available at the input (LED 1 AC IN is lit), the Battery Charger is switched on automatically (LED 2 CHARGER is lit). -
Page 16: Battery Condition
STUDER INNOTEC DANGER OF AN EXPLOSION !! The battery room must be well ventilated. 4.6.3 Input current repartition (Power sharing) To manage the power available on the AC INPUT (depends on the supply use) the HP- COMPACT is equipped with a system usually called “Power sharing” or INPUT power dis- tribution. -
Page 17: The Transfer System
STUDER INNOTEC Battery charge or discharge with too high currents Battery cable cross section too small Battery connections badly tightened or corroded Charge of the battery with external bat- tery charger Discharge of the battery with users not connected to the HP-COMPACT... -
Page 18: The Multifunctional Contact
STUDER INNOTEC HP-COMPACT When the Input voltages reach the selected value on turning knob, the inverter switches off and the AC INPUT goes directly on the AC OUTPUT. When the voltage INPUT is less of 20V the value set, the transfer is stopped and the OUTPUT switches back on the inverter. -
Page 19: The Remote Control
STUDER INNOTEC 4.9 The Remote Control As an option, a Remote Con- trol can be connected to the HP-COMPACT. ope- rating controls and displays except from level adjustment are available on the Remote Control. The Remote Control is supplied with a 20m long cable. -
Page 20: Remote Control For Power Sharing
STUDER INNOTEC 4.11 Remote control for „Power Sharing“ If the Remote control RPS-01 is installed, the Trimmer (26) “INPUT LIMIT“ has to be set on the value max.. The HP-COMPACT takes into account the lowest values set on the inverter and on the Remote control. -
Page 21: Auxiliary Contact
STUDER INNOTEC Low voltage Float Charge LED 13 LED 12 LED 12V 24V 48V 12V 24V 48V 12V 24V 48V 12V 24V 48V 12.0 24.0 48.0 13.7 27.4 54.8 16.2 32.4 64.8 16.2 32.4 64.8 4 h 11.8 23.6 47.2 13.6 27.2 54.4 15.6 31.2 62.4 15.9 31.8 63.6 3 h 11.6 23.2 46.4 13.5 27.0 54.0 15... -
Page 22: The Programming Of The Auxiliary Contact Is Carried Out In The Following Steps
STUDER INNOTEC COMPACT which is indicated with a LED. The programming is possible for one or more operating situations. If the contact is programmed for many situations, it is activated as soon as the HP-COMPACT finds itself in any one of the programmed situations. That means that the work of the contact meets that of the logic OR–Function. -
Page 23: Disabling Some Of The Hp-Compact Functions
STUDER INNOTEC As per the inverter output power (not available with some special executions) Activating the auxiliary contact for the generator start can be programmed also on a pre- determined output power of the inverter. The auxiliary contact will be activated if the in- verter output power exceeds 80% of the inverter nominal power during 3 minutes and/or 100% during 30 seconds. -
Page 24: Installation Maintenance
AC voltage at the input INVERTER Inverter and charger are both disabled. AC OUT Only the transfer switch function is enabled in input voltage and frequency is OK. INVERTER STUDER INNOTEC (R.Studer) HP-COMPACT V3.0 E HP-COMPACT... -
Page 25: Technical Data
STUDER INNOTEC 8 Technical Data Model Inverter Nominal battery voltage Input voltage range Nominal power @ 25°C Maximum load 30 min. @ 25°C Maximum load 5 sec Maximum load Maximum asymmetric load Standby adjustment Cos ϕ Maximum efficiency Consumption OFF/Standby/ON...
