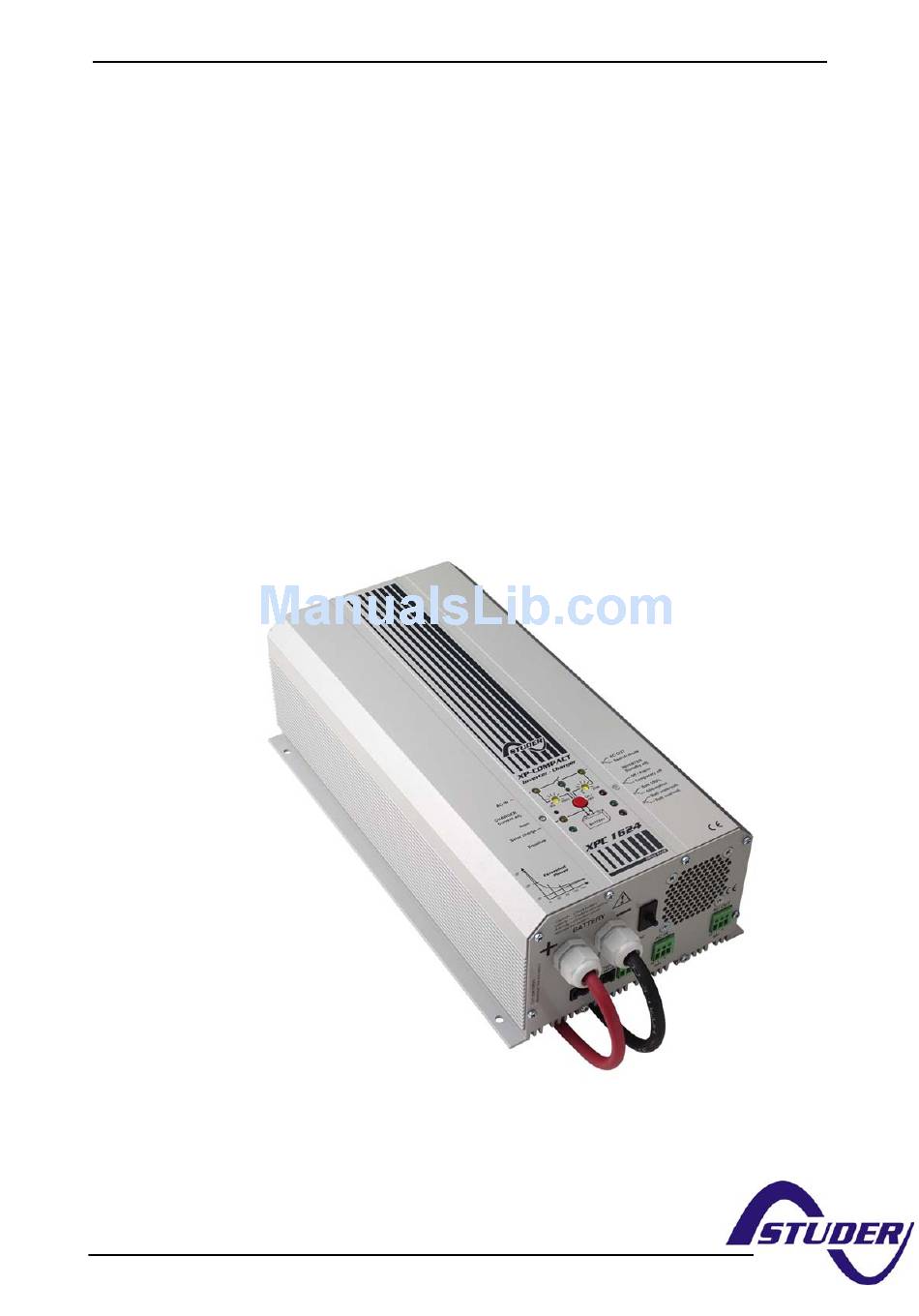

STUDER INNOTEC
User and installer Manual
Combi Inverter, Battery charger
STUDER INNOTEC
Rue des Casernes 57
CH-1950 SION
User manual
and Transfersystem
XP-COMPACT XPC 1112
XP-COMPACT XPC 1624
XP-COMPACT XPC 1648
Remote control
Temperature sensor
Solar charge controller
AC cable cover
IP-23 top cover
TEL: ++41 (0)27 205 60 80
FAX: ++41 (0)27 205 60 88
EMAIL : info@studer-inno.com
XP-COMPACT V2.0 E
RCC-01
CT-35
XPCxxxx-S
CFC-01
C-IP23
XP-COMPACT
Advertisement
Table of Contents
Related Manuals for Studer XP-COMPACT XPC 1112
Summary of Contents for Studer XP-COMPACT XPC 1112
- Page 1 STUDER INNOTEC User and installer Manual Combi Inverter, Battery charger and Transfersystem XP-COMPACT XPC 1112 XP-COMPACT XPC 1624 XP-COMPACT XPC 1648 Remote control Temperature sensor Solar charge controller AC cable cover STUDER INNOTEC Rue des Casernes 57 CH-1950 SION User manual...
-
Page 2: Table Of Contents
STUDER INNOTEC Summary General Information ...3 PERATING INSTRUCTIONS UALITY AND ARRANTY ARRANTY ISCLAIMER ...3 IABILITY ISCLAIMER ...4 RECAUTIONS ...4 PECIAL RECAUTIONS Introduction...5 ...5 RINCIPLE SCHEMATIC ESCRIPTION OF MAIN FUNCTIONS 2.2.1 The inverter...5 2.2.2 The transfer system ...5 2.2.3 The battery charger...5 2.2.4... - Page 3 STUDER INNOTEC 4.8.3 Delayed mode of the Transfer System ...15 OLAR CHARGE CONTROLLER 4.10 ULTIFUNCTIONAL 4.11 EMPERATURE SENSOR The Remote Control ...16 EMOTE CONTROL PLUG ...16 OWER MONITOR :...17 ATTERY ONDITION ...17 AULT INDICATOR 5.4.1 Overtemp. (10) ...17 5.4.2 Overload (11)...17 5.4.3...
-
Page 4: General Information
Respecting this manual, servicing and method of installation, functioning, application and mainte- nance of the appliance can not be controlled or supervised by STUDER INNOTEC. Hence we do not accept any liability and responsibility for damages, loses and costs which result through the use of this appliance or which result through incorrect installation, incorrect operation or wrong application and maintenance or which by some other means maybe connected together to these. -
Page 5: Precautions
The whole installation connected with the XP-COMPACT must comply with the respective valid codes and ordinances. Persons without the written authorization from STUDER INNOTEC are strictly forbidden to carry out any changes or repairs on the appliances. For authorized changes only original parts are to be used. -
Page 6: Introduction

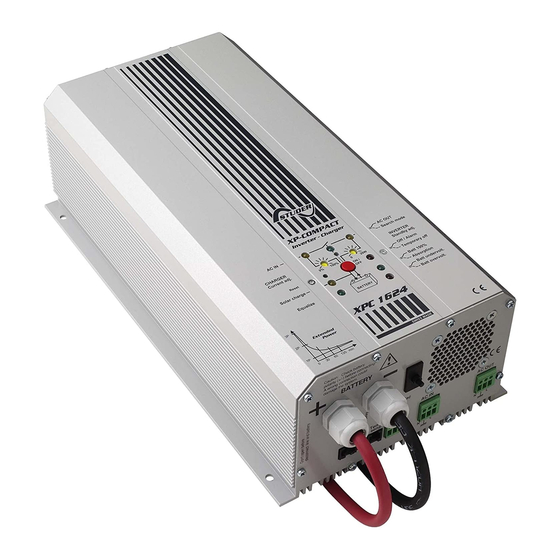

STUDER INNOTEC 2 Introduction The XP-COMPACT is a sine wave inverter with integrated battery charger and solar charge con- troller with many additional functions, it has been developed to be used as stand-alone (no grid feeding) AC provider, or as continuous / break-free current supply provider (UPS). -
Page 7: The Solar Charge Controller (Optional)
STUDER INNOTEC technical specification (chap.6). The battery charger is meant for the lead-acid and lead-gel batter- ies. Thanks to the floating charge system the battery can remain continuously connected. 2.2.4 The solar charge controller (optional) With the built-in solar charge controller, the XP-COMPACT is a complete solar-power-center. In a solar installation this controller ensures that the batteries are charged correctly. -
Page 8: Connection In Parallel And In Serie
STUDER INNOTEC 2.3.3 Connection in parallel and in serie 3 Mounting and installing 3.1 Installation place The location of the XP-COMPACT must be chosen by the following criteria: - Protection against unauthorized handling - Dry dust free room, no condensation - Never install directly over the battery and never in a cabinet together with the batteries - Keep ventilation holes free. -
Page 9: Protection Cover For The Terminals Connections
STUDER INNOTEC Connecting must be done by qualified staff. Material such as cable, connectors and distribution boxes, fuses etc. used in the installation must comply with the respective valid low-voltage installa- tion rules and regulations. 3.4.2 Protection cover for the terminals con-... -
Page 10: Cabling/Wiring
. Before connecting it is necessary to check with a Voltmeter that the voltage of the Module meets the following values: XPC 1112 17-25V/30A, XPC 1624 34 – 45V/30A, XPC 1648 68 – 90V/20A. User manual . Connections are marked as follows: XP-COMPACT V2.0 E... -
Page 11: Connection To Auxiliary Contact
STUDER INNOTEC 3.6.6 Connection to Auxiliary Contact On these three terminals is a potential free change-over contact. The maximal permitted current and voltage for this is 16A/250Vac. The LED 5 “Contact active” shows the position of them: alight means active and off means non-active. The schematic view of the connections on the front shows the relay in the non-active mode. -
Page 12: Display And Control Parameters On Remote Control Panel (Optional)
STUDER INNOTEC 4.2 Display and control parameters on remote control panel (optional) INVERTER - CHARGER AC IN CHARGER SOLAR CHARGE EQUALIZE Program Contact active Contact manual AUXILIARY CONTACT (Program) RCC-01 4.3 Light Emitting Diodes (LED) Marking LED lit AC IN... -
Page 13: Push Buttons
STUDER INNOTEC XP-COMPACT is turned off. Turn- ing it back on is only possible manually. Battery Charger and/or Solar Charge Controller are doing an equalization cycle 15-18* Charge condition of Battery CURRENT Display the value of the output power in % of Pnom (in Inverter Mode) MONITOR and the charge current in Amps. -
Page 14: Battery Condition
STUDER INNOTEC perature synchronizes the relay with the alarm signal. In this way, for example, an emergency back up system can be started without any break in the energy supply. 4.6.4 Battery Condition Deep discharging of the lead-acid batteries leads to high losses in capacity and early aging. This is why battery condition is continuously controlled and supervised. -
Page 15: Equalization Charging
STUDER INNOTEC 4.7.2 Equalization charging Before you program the XP-COMPACT for Equalization-charge you must check with your supplier that the batteries are suitable for this process. Equalization is recommended for the lead-acid batteries in order to mix well the electrolyte fluid and to clean the lead plates. -
Page 16: Set The Transfer Voltage Threshold
SOLAR +/-. The in-built controller is a „Shunt con- troller“ for the maximum input current of 30A for XPC 1112 and XPC 1624 and 20A for XPC 1648. The operating voltage of Solar panels to be connected must match the actual operating voltage of the XP-COMPACT and never exceeds the max. -
Page 17: The Multifunctional Contact
STUDER INNOTEC 4.10 The Multifunctional Contact In the XP-COMPACT there is a built-in power relay. The potential-free change-over contact (NO – NC) of this power relay is connected to the screw terminal AUX CONTACT. Maximum Contact load: 230Vac /12Vdc/24Vdc/16Amp The contact is activated when the XP-COMPACT is halted or by a fault condition, or by a normal manual stop done by pushing push-button 19. -
Page 18: Battery Condition
STUDER INNOTEC 5.3 Battery Condition Built-in microprocessor calculates the actual state of charge of the battery and displays it on LED 15 – 18. The LED 14 is lit when the system is carrying out a charge cycle with equalization. -
Page 19: Standard Setting
STUDER INNOTEC 6.1 Standard setting The XP-COMPACT is delivered with the following default setting: 6.1.1 Battery voltage Low voltage 11.6V / 23.2V / 46.4V Float Charge 13.5V / 27.0V / 54.0V End of Charge Voltage 14.4V / 28.8V / 57.6V Equalization 15.3V / 30.6V / 61.2V... -
Page 20: Program The Auxiliary Contact
STUDER INNOTEC table 6.3.1. If desired, repeat the operation with any other parameter (voltage or time) to be changed. If during 10 seconds no buttons are pressed, the selected values are automatically stored and the XP-COMPACT switches back in to the normal operating status. -
Page 21: Disabling Some Of The Xp-Compact Functions
AC voltage at the input INVERTER Inverter and charger are both disabled. AC OUT Only the transfer switch function is enabled in input voltage and frequency is OK. INVERTER STUDER INNOTEC (R.Studer) XP-COMPACT V2.0 E XP-COMPACT... -
Page 22: Technical Data
STUDER INNOTEC 9 Technical Data Model Inverter Nominal battery voltage Input voltage range Nominal power Maximum power load 30 min. P30 Maximum power load 5 sec Maximum load Maximum asymmetric load Standby adjustment Cos ϕ Maximum efficiency Consumption OFF/Standby/ON Output voltage...
