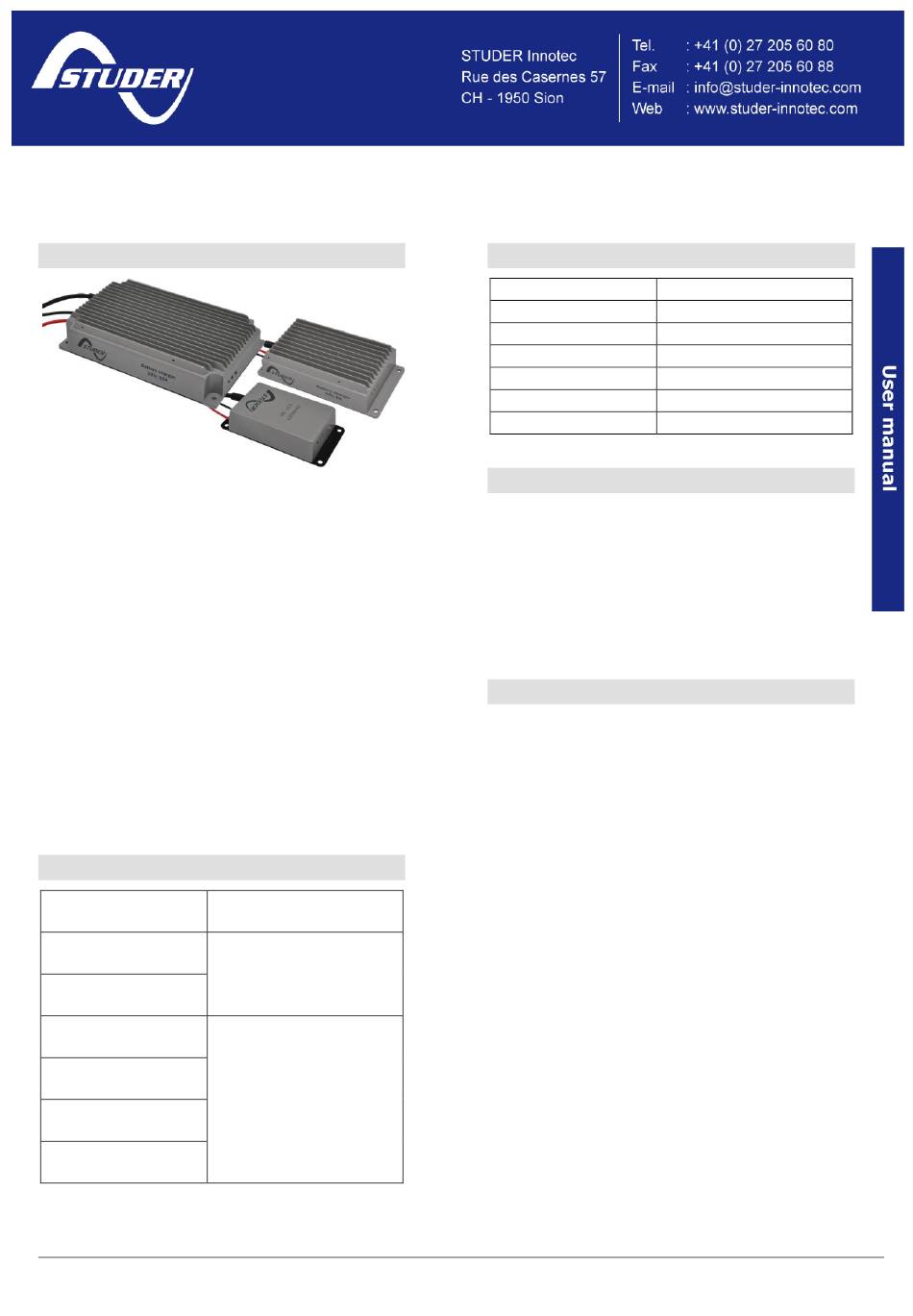

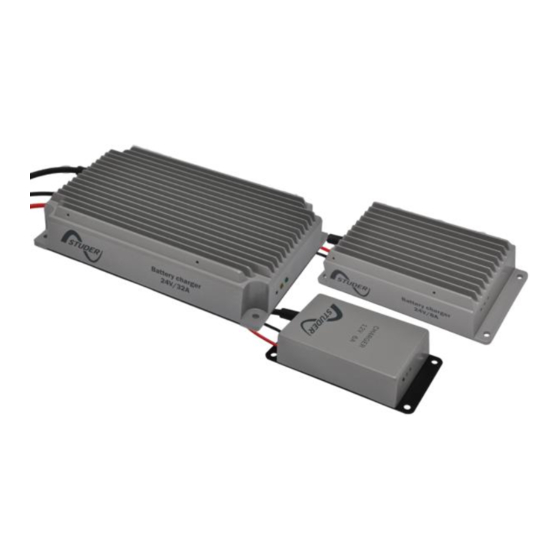

Description
This charger is made for all types of lead-
acid chargeable batteries, including Gel-
batteries. It is a fully automatic charger
with an UI charging characteristic. The
charger can permanently be connected to
the battery without
overcharging. When the battery is fully
charged the charger automatically switches
over to the floating charging (yellow and
green LED lit, 13.8/27.6 V). This will
continue until the charger is switched off.
The charger automatically starts the mains
charging mode after a mains-break (yellow
LED lit 14.4/28.8 V). The charger is
waterproof (IP65).
Concerned models
Range
MBC 12-06/1
MBC 12-15/1
MBC 24-03/1
MBC 24-08/1
MBC 24-15/1
MBC 24-32/1
4O9N1
BATTERY CHARGER
the risk of
Battery Voltage
12 Vdc
24 Vdc
MBC
Dimensions
Range
MBC 12-06/1
MBC 12-15/1
MBC 24-03/1
MBC 24-08/1
MBC 24-15/1
MBC 24-32/1
Installation
The charger can simply be placed in any
position on a clean and dry surface using 4
screws or bolts. Connect the red wire to the
positive battery terminal and the black wire
to the negative battery terminal. Connect
the mains cable to a 230 Vac mains voltage
outlet.
Trouble shooting
 Check the mains power supply to the
charger
 Check the "car fuse" on the charger's
battery cable
 If the charger still doesn't work, please
contact your dealer
1 / 8
l x w x h [mm]
155 x 80 x 36
195 x 100 x 47
155 x 80 x 36
195 x 100 x 47
193 x 99 x 46
245 x 157 x 47
V1.3.0
