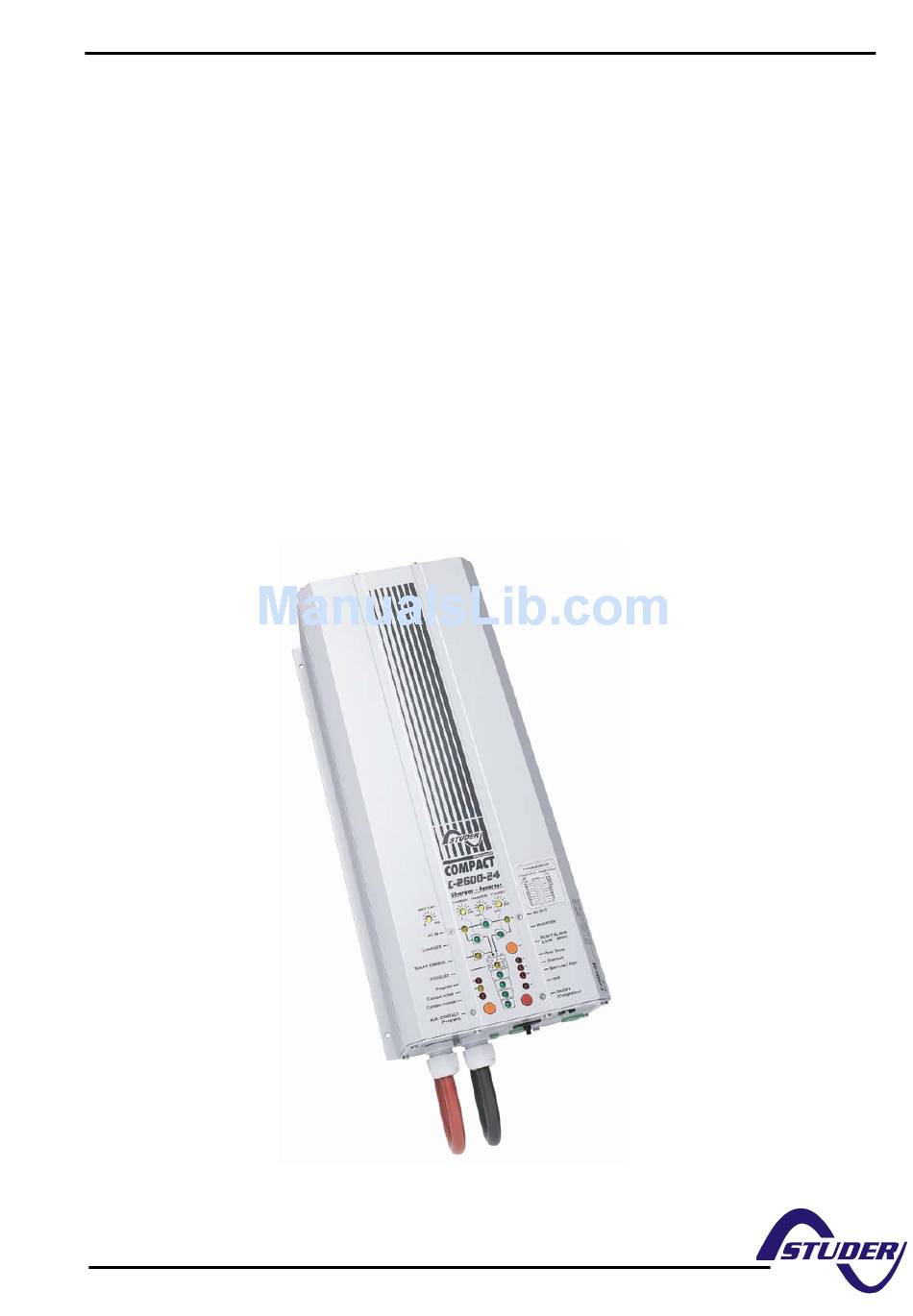

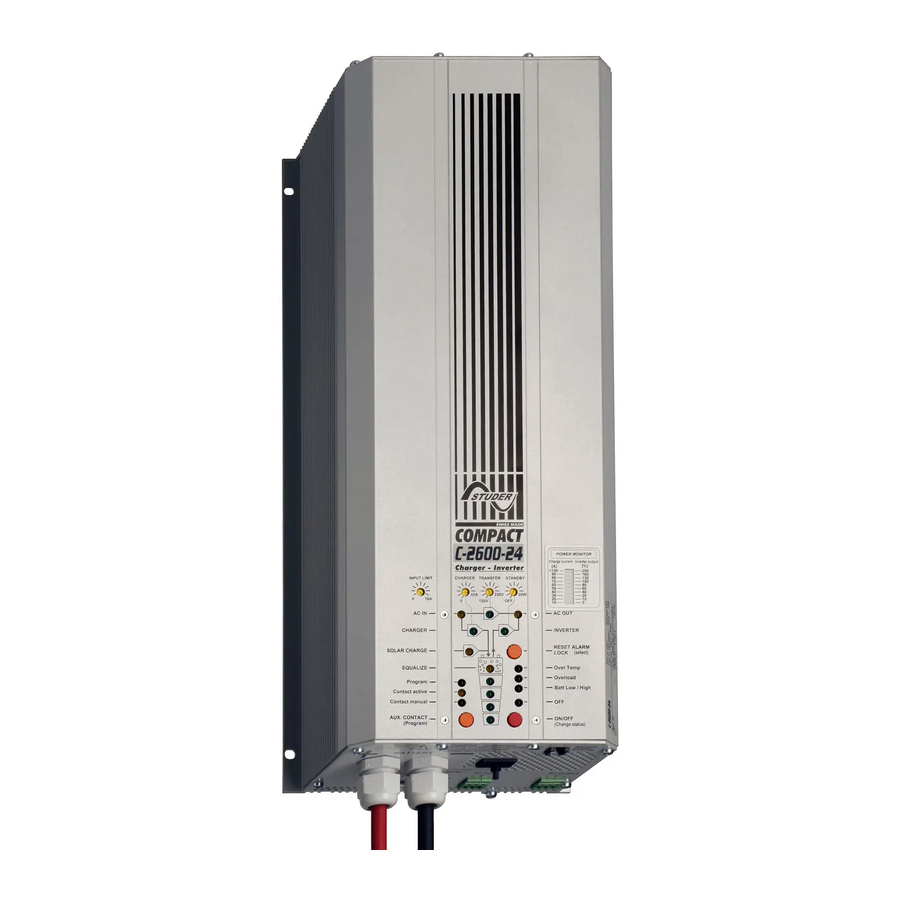

  • Page 1 STUDER INNOTEC User and installer Manual Sine wave Inverter, Battery charger, Transfersystem COMPACT C 1600-12 COMPACT C 2600-24 COMPACT C 4000-48 STUDER INNOTEC Rue des Casernes 57 CH-1950 SION User manual Temperature sensor CT-35 Remote control RCC-01 Solar charge controller Cxxxx-S...

  • Page 2: Table Of Contents

    STUDER INNOTEC Summary ... 4 ENERAL NFORMATION 1.1 O PERATING INSTRUCTIONS 1.2 Q ...4 UALITY AND ARRANTY 1.3 W ...4 ARRANTY ISCLAIMER 1.4 L ...4 IABILITY ISCLAIMER 1.5 P …...4 RECAUTIONS 1.6 S ...5 PECIAL RECAUTIONS ... 6 NTRODUCTION 2.1 P ...6...
  • Page 3 STUDER INNOTEC 4.7.3 ELAYED MODE OF THE 4.8 T OLAR CHARGE CONTROLLER 4.9 T ULTIFUNCTIONAL ONTACT 4.10 T ...18 EMOTE ONTROL 4.11 T EMPERATURE SENSOR ... 19 ROGRAMMING 5.1 S ...19 TANDARD SETTING 5.1.1 ...19 ORKING MODE 5.1.2 ...19 ATTERY VOLTAGE 5.1.3...

  • Page 4: General Information

    Respecting this manual, servicing and method of installation, functioning, application and maintenance of the appliance can not be controlled or supervised by Firma Studer INNOTEC. Hence we do not accept any liability and responsibility for damages, loses and costs which result...

  • Page 5: Special Precautions

    The whole installation connected with the COMPACT must comply with the respective valid codes and ordinances. Persons without the written authorization from Studer INNOTEC are strictly forbidden to carry out any changes or repairs on the appliances. For authorized changes only original parts are to be used.

  • Page 6: Introduction

    STUDER INNOTEC 2 Introduction The COMPACT is a sine wave inverter with integrated battery charger and solar charger controller with many additional functions, it has been developed to be used as stand-alone (independent of a grid-system) AC provider, or as continuous / break-free current supply provider.

  • Page 7: The Solar Charge Controller (Optional)

    COMPACT many batteries have to be connected together in parallel and or in series. Following three examples are shown: 2.3.1 Parallel Connection 2.3.2 Series Connection User manual COMPACT V4.0 E COMPACT C 1600-12 C 1600-12 C 2600-24 C 4000-48...

  • Page 8: Parallel- Series Connection

    STUDER INNOTEC 2.3.3 Parallel- Series Connection 3 Assembly 3.1 Place of assembly The location of the COMPACT must be chosen by the following criteria: Protection from unauthorized handling. Dry dust free room, no condensation. Never install directly over the battery and never in a cabinet together with the batteries.

  • Page 9: Protection Cover For The Terminals Connections

    STUDER INNOTEC 3.3.2 Protection cover connections The protection is available as an option (Order ref. CFC-01) and avoid to do wrong hazardous connection on the terminals 230Vac. It mounted with strain relief clamps for the cable. 3.4 Connecting Plan / Front side...

  • Page 10: Cabling/Wiring

    Caution: With a wrong battery voltage the COMPACT can be destroyed. (for example: connecting a C 1600-12 to a 48V-Battery). Nevertheless, if the COMPACT had been connected with reverse polarity, it is highly probable that the fuse inside the casing is defect.

  • Page 11: Connection The 230Vac Input (Ac Input)

    . Before connecting it is necessary to check with a Voltmeter that the voltage of the Module meets the following values: C 1600-12 17-25V/30A, C 2600-24 34 – 45V/30A,C 4000-48 68 – 90V/20A. 3.5.6 Connection to Auxiliary Contact On these tree terminals is a potential free change-over contact). The maximal permitted current and voltage for this is 16A/250Vac.

  • Page 12: Operating

    STUDER INNOTEC Operating 4.1 Display and operating control elements INPUT LIMIT AC IN CHARGER SOLAR CHARGE EQUALIZE Program Contact active Contact manual AUX. CONTACT (Program) User manual Cha r g er - I n ver t er CHARGER TRANSFER STANDBY...

  • Page 13: Light Emitting Diodes

    STUDER INNOTEC 4.2 Light Emitting Diodes Marking LED lit AC IN Voltage corresponding to self- adjusted values is at the AC IN input. CHARGER Battery Charger is working SOLAR Connected CHARGE delivering energy Program Programming Contact Contact active Auxiliary Contact is activated Contact manual Aux.

  • Page 14: The Inverter

    STUDER INNOTEC 4.5 The Inverter An Inverter is built in the COMPACT, which generates a sinusoidal alternating voltage of a very high quality. With this Inverter any alternating voltage consuming device 230Vac up to the nominal power of your COMPACT can be operated. Thanks to the generous dimensioning of the COMPACT, you can operate appliances requiring higher power than the nominal power of the COMPACT for a short time.

  • Page 15: The Battery Charger

    STUDER INNOTEC 4.6 The Battery charger 4.6.1 Cycle of charge The full automatic COMPACT Battery Charger is adjusted at the factory so that most lead-acid and lead-gel batteries can be charged to the maximum. As soon as the minimum alternating voltage for the AC IN set on the Turning Knob 23 is available at the input (LED 1 AC IN is lit), the Battery Charger is switched on automatically (LED 2 CHARGER is lit).

  • Page 16: Charging Current

    STUDER INNOTEC the OUTPUT less it’s give to the charger. Priority to the OUTPUT. When the power sharing is used the LED 200% (red) is lit to point out that’s the charge is limited. Caution: If the power use on the OUTPUT is higher than the value...

  • Page 17: Set The Transfer Voltage Threshold

    SOLAR +/-. The in-built controller is a „Shunt controller“ for the maximum input current of 30A for C 1600-12 and C 2600-24 and 20A for C 4000- 48. The operating voltage of solar panels to be connected must match the actual operating voltage of the COMPACT and never exceeds the max.

  • Page 18: The Solar Charge Controller

    STUDER INNOTEC 4.9 The Multifunctional Contact In the COMPACT there is a built-in programmable power relay. The potential-free change-over contact (NO – NC) of this power relay is connected to the screw terminal AUX CONTACT. Maximum Contact load: With the Push Button 21 „AUXILIARY CONTACT“ the contact can be manually switched on or off independent of programming and the operating situation.

  • Page 19: The Temperature Sensor

    STUDER INNOTEC Caution: No external voltage should be connected to this Input Control. 4.11 The Temperature sensor Operating voltage of lead-acid batteries change depends on the temperature. To correct the operating voltages according to the actual temperatures, a temperature sensor can be connected to the COMPACT.

  • Page 20: A Uxiliary C Ontact Is Carried Out In The Following S Teps

    STUDER INNOTEC 5.3.2 voltage threshold The programming is done in accordance with the following steps: Push and hold down, the Push Button 21 (Program) Push (Change status) for minimum 2 seconds simultaneously. With the Push Button 20 (select) select with of the battery level and the absorption time to be changed.

  • Page 21: Examples

    STUDER INNOTEC 5.4.3 Examples 5.4.3.1 Auxiliary Contact as generator starter As per the battery capacity When in the programming of the Auxiliary Contact, the Battery Capacity (LED 15-18) is used as a condition, then you must take note of the following requirements.

  • Page 22: Maintenance

    AC voltage at the input INVERTER Inverter and charger are both disabled. AC OUT Only the transfer switch function is enabled in input voltage and frequency is OK. INVERTER STUDER INNOTEC (R. Studer) COMPACT V4.0 E COMPACT...

  • Page 23: Technical Data

    IP-23 top cover AC cable cover Battery temperature sensor (58 x 51.5 x 22mm / 3 m. cable) Data may change without any notice User manual C 1600-12 C 2600-24 C 4000-48 9.5 - 16V 19 - 32V 1300VA 2300VA...
