Caution: No external voltage should be connected to this Input Control.

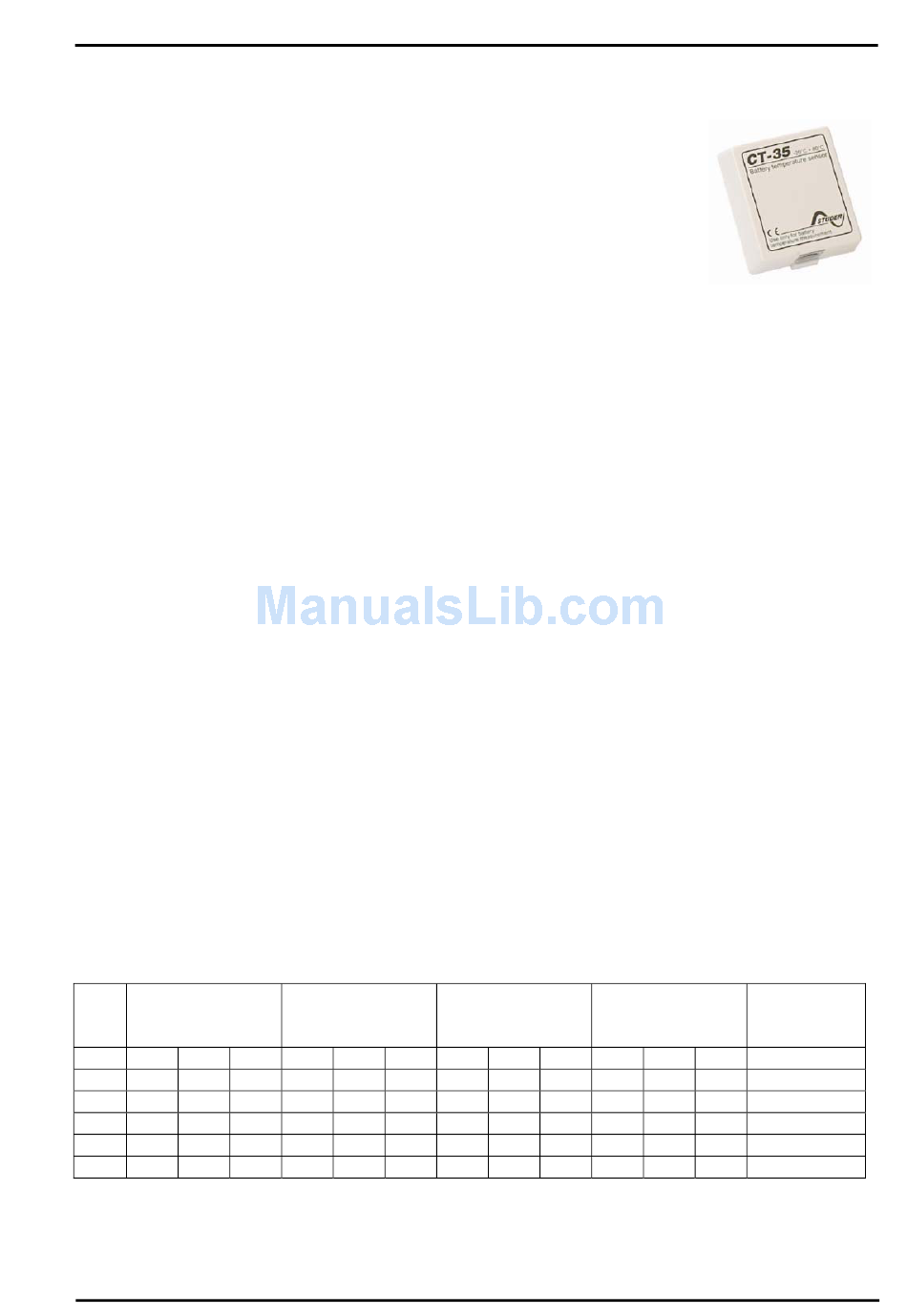

4.11 The Temperature sensor

Operating voltage of lead-acid batteries change depends on the
temperature. To correct the operating voltages according to the actual
temperatures, a temperature sensor can be connected to the COMPACT.
The compensation through the sensor is –3mV/°C/Cell.
Order Number: CT-35
Dimensions: H x B x T / 58 x 51.5 x 22mm

5 Programming

5.1 Standard setting

The COMPACT is delivered with the default setting following:
5.1.1

Working mode

The working of the charger, the inverter and the transfer are described in chapter 5.3/5.4/5.5.
5.1.2

Battery voltage

Low voltage
Float Charge
End of Charge Voltage
Equalization
Absorption Time:
5.1.3

Auxiliary contact

Active in case of defect or manual turn off with the LED 10/11/12/13

5.2 Reset value

When the COMPACT is to be connected to a battery or after an interruption (RESET), it is always
programmed with these standard settings.
In order to get to these settings during operation you must press the three Push Buttons 19/20/21
simultaneously for a minimum of 2 seconds.

5.3 Battery voltages and absorption time

The voltage levels (low voltage, float charge, end of charge and equalization) and the duration of
the absorption charge can be changed.
The display of these voltages and the times in the program mode are in accordance with the
diagram shown below:
5.3.1

Table of voltage and timing threshold

Low voltage
LED 13
LED 12V 24V 48V
14 12.0 24.0 48.0 13.7 27.4 54.8 16.2 32.4 64.8 16.2 32.4 64.8 4 h
15 11.8 23.6 47.2 13.6 27.2 54.4 15.6 31.2 62.4 15.9 31.8 63.6 3 h
16 11.6 23.2 46.4 13.5 27.0 54.0 15
17 11.4 22.8 45.6 13.4 26.8 53.6 14.4 28.8 57.6 15.3 30.6 61.2 1 h
18 11.2 22.4 44.8 13.3 26.6 53.2 14.2 28.4 56.8 15
The heavy printed values show the standard settings.
User manual
11.6V / 23.2V / 46.4V
13.5V / 27.0V / 54.0V
14.4V / 28.8V / 57.6V
15.3V / 30.6V / 61.2V
2 Hours
Float Charge Absorption
LED 12 LED 11
12V 24V 48V 12V
COMPACT V4.0 E
Equalization
LED 10
24V 48V 12V 24V
30 60 15.6 31.2 62.4 2 h
30
COMPACT
Absorpt.
Time
LED 10->13
48V 12/24/48V
60 0 – 1Min.
19
