Sine wave Inverter, Battery charger, Transfersystem
STUDER INNOTEC
Rue des Casernes 57
CH – 1950 Sion
User's and installer's Manual

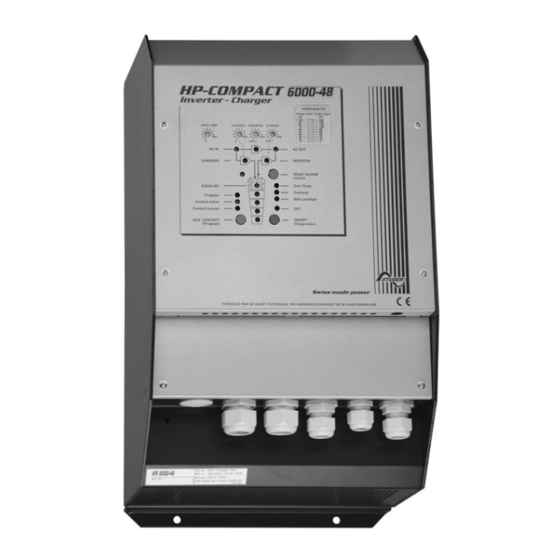

HP-COMPACT - HPC 2800-12
HP-COMPACT - HPC 4400-24
HP-COMPACT - HPC 6000-48
HP-COMPACT - HPC 8000-48
Remote control RCC-01
Remote - Power sharing RPS-01
Temperature sensor CT-35
TEL : ++41 (0)27 205 60 80
FAX : ++41 (0)27 205 60 88
E-MAIL : info@studer-innotec.com
Advertisement
Table of Contents
Related Manuals for Studer HPC 2800-12, HPC 4400-24, HPC 600-48, HPC 6000-48
Summary of Contents for Studer HPC 2800-12, HPC 4400-24, HPC 600-48, HPC 6000-48
- Page 1 HP-COMPACT - HPC 4400-24 HP-COMPACT - HPC 6000-48 HP-COMPACT - HPC 8000-48 Remote - Power sharing RPS-01 Temperature sensor CT-35 STUDER INNOTEC Rue des Casernes 57 CH – 1950 Sion Remote control RCC-01 TEL : ++41 (0)27 205 60 80 FAX : ++41 (0)27 205 60 88 E-MAIL : info@studer-innotec.com...
-
Page 2: Table Of Contents
STUDER INNOTEC English description ... 5 General Information... 5 Operating instructions ... 5 Quality and Warranty ... 5 Warranty Disclaimer... 5 Liability Disclaimer... 6 Warning ... 6 Special precautions ... 6 Introduction... 7 Principle schematic ... 7 Description of the main functions... 8 Battery connecting... -
Page 3: English Description
− Running liquid or oxidation through condensation in the appliance − Defects caused by force, physical or mechanical means − Changes not explicitly authorized by STUDER INNOTEC − Not or only partly tightened screws and nuts after change of fuses or cables connecting −... -
Page 4: Liability Disclaimer
Similarly, we do not accept any liability for any violation of the patents rights or violation of any third party’s rights resulting from the use of this appliance STUDER INNOTEC reserves the right to modify the technical data or these operating instructions without any prior notice. -
Page 5: Introduction
STUDER INNOTEC − Plenty of fresh water and soap must be ready at hand so that in case of acid coming in contact with skin, eyes and clothes, the areas in question can be thoroughly washed. − If acid enters the eyes, you must thoroughly wash them with cold running water for at least 15 minutes. -
Page 6: Remote Control Rcc
STUDER INNOTEC HP-COMPACT connection between Neutral and earth in inverter mode only may be done by installing a bridge internally to the unit. Please contact your installer regarding this point. (2) Remote control for remote adjustment of the input limit. (see chap. 4.6.3) Description of the main functions 2.2.1 The inverter... -
Page 7: Battery Connecting
STUDER INNOTEC HP-COMPACT Battery connecting Lead-acid batteries are normally available in blocks of 2V, 6V or 12V. In most cases, to generate the necessary operating voltage and the capacity of the batteries for the HP-COMPACT many batteries have to be connected together in parallel and or in series. -
Page 8: Mounting And Installing
STUDER INNOTEC Mounting and installing Installation place The location of the HP-COMPACT must be driven by the following criteria: − Protection from unauthorized handling − Dry dust free room, no condensation − Never install directly over the battery and never in a cabinet together with the batteries −... -
Page 9: Temperature Sensor Ct
STUDER INNOTEC Battery +/- Connection terminal (M8) for battery cable (HPC 4400-24/6000- 48/8000-48 with fuse) Reserved Remote contr. Connection terminal for Remote Control RCC-01 Transfer delay Slide switch for Transfer Delay Equalize Slide switch for equalization of the Battery Temp. - Page 10 STUDER INNOTEC charge, the same slide switch can be set in ON position. In case of doubt leave the setting in OFF position. This will allow an equalizing cycle (higher end of charge voltage) during the next charge process. Since then equalizing will occur every 25 usual cycles.
- Page 11 STUDER INNOTEC HP-COMPACT including the battery. If after the fuse replacement and after re-connection of the battery with the right polarity, the HP-COMPACT remains out of order, it must be brought back to your merchant for service. 3.6.2 Connection to the 230Vac-consumer appliances (AC OUTPUT)
-
Page 12: Control
STUDER INNOTEC Control Display and control parameters HP-COMPACT V5.4 HP-COMPACT 14/80... -
Page 13: Light Emitting Diodes (Led)
STUDER INNOTEC Light Emitting Diodes (LED) Marking LED lit Voltage corresponding to AC IN self-adjusted values is at the AC IN input. Battery charger is working CHARGER Reserved Program mode for Program Aux. Contact Contact Auxiliary Contact is active activated Contact Aux. -
Page 14: Push Buttons
STUDER INNOTEC Display the value of the output power in % of Pnom (in POWER Inverter Mode) and the charge current in Amps (in Charger MONITOR Mode). In this mode the red LED indicates that power sharing is in use (>100A). - Page 15 STUDER INNOTEC HP-COMPACT time, then it no longer switches on automatically. The LED 13 remains lit. Press the push button 19 „ON/OFF“ in order to switch on the Inverter. 4.5.3 Overheating (Over Temp.) If the Inverter has been overloaded for a long time or it has been working in too high surrounding temperatures, it will switch off.
-
Page 16: The Battery Charger
STUDER INNOTEC The battery charger 4.6.1 Cycle of charge The full automatic HP-COMPACT Battery Charger is adjusted at the factory so that most lead-acid and lead-gel batteries can be charged to the maximum. As soon as the minimum alternating voltage for the AC IN set on the Turning Knob 23 is available at the input (LED 1 AC IN is lit), the Battery Charger is switched on automatically (LED 2 CHARGER is lit). - Page 17 STUDER INNOTEC HP-COMPACT carried out for 20 minutes (factory setting). During such a charge cycle the LED 14 is lit and during equalizing it is blinking. Charge cycle with equalization can be started independently from the actual program. For this purpose the slide switch must be slid from “OFF”...
-
Page 18: The Transfer System
STUDER INNOTEC The measure system built in the HP-COMPACT takes into account the battery voltage, the discharge and charge current as well as the undulation of the voltage. If the battery and the HP-COMPACT are used according to their technical data, the battery state of charge is displayed accurately. -
Page 19: The Multifunctional Contact
STUDER INNOTEC HP-COMPACT 4.7.1 Set the transfer voltage threshold The voltage threshold of the transfer can be adjusted between 150 to 230V with the turning knobs (23). From factory this value is 200V. Most appliances can work on this voltage. When the Input voltages reach the selected value on turning knob, the inverter switches off and the AC INPUT goes directly on the AC OUTPUT. -
Page 20: The Remote Control Rcc-01
STUDER INNOTEC − Over temperature (LED 10 lit) − Overload (LED 11 lit) − Over or less voltage of batteries (LED 12 lit or blinking) − HP-COMPACT is turned off manually or with a fault (LED 13 lit) In case this function is not wished, it must be modified by programming according to procedure in chap. -
Page 21: Remote Control For „Power Sharing" Rps-01
STUDER INNOTEC actual temperatures, a temperature sensor can be connected to the HP-COMPACT. The compensation through the sensor is –3mV/°C/Cell. Order Number: CT-35 Dimensions: H x B x T / 58 x 51.5 x 22mm 4.11 Remote control for „Power Sharing“ RPS-01 If the Remote control RPS-01 is installed, the Trimmer (26) “INPUT LIMIT“... -
Page 22: Reset Value (Default Settings)
STUDER INNOTEC Reset value (default settings) To come back to the default settings, press simultaneously on the push buttons 20/21 during at least 2 seconds. A beep will confirm the comeback to the factory settings. The inverter switches off after this operation. It can be turned on again after the beep. -
Page 23: Auxiliary Contact
STUDER INNOTEC 5.3.2 Table of voltage and timing threshold The voltage levels (low voltage, float charge, end of charge and equalization) and the du-ration of the absorption charge can be changed. The display of these voltages and the times in the program mode are in accordance... - Page 24 STUDER INNOTEC like this the Auxiliary Contact works with the lowest set condition and stops when it has reached the highest programmed condition through charging. Example: start of a generator with the HP-COMPACT In order to program the auxiliary contact to start at 25% and to stop at 75% of the battery state-of-charge, here is the procedure to follow: −...
-
Page 25: Disabling Some Of The Hp-Compact Functions
Only the transfer switch function is ena- bled in input voltage and frequency is OK Charger and transfer switch are disabled the inverter will work continuously even if there is a correct AC voltage at the input. STUDER INNOTEC (R. Studer) HP-COMPACT V5.4 HP-COMPACT 27/80... -
Page 26: Technical Data
STUDER INNOTEC HP-COMPACT Technical Data HP-COMPACT V5.4 28/80...
