STUDER Innotec COMPACT

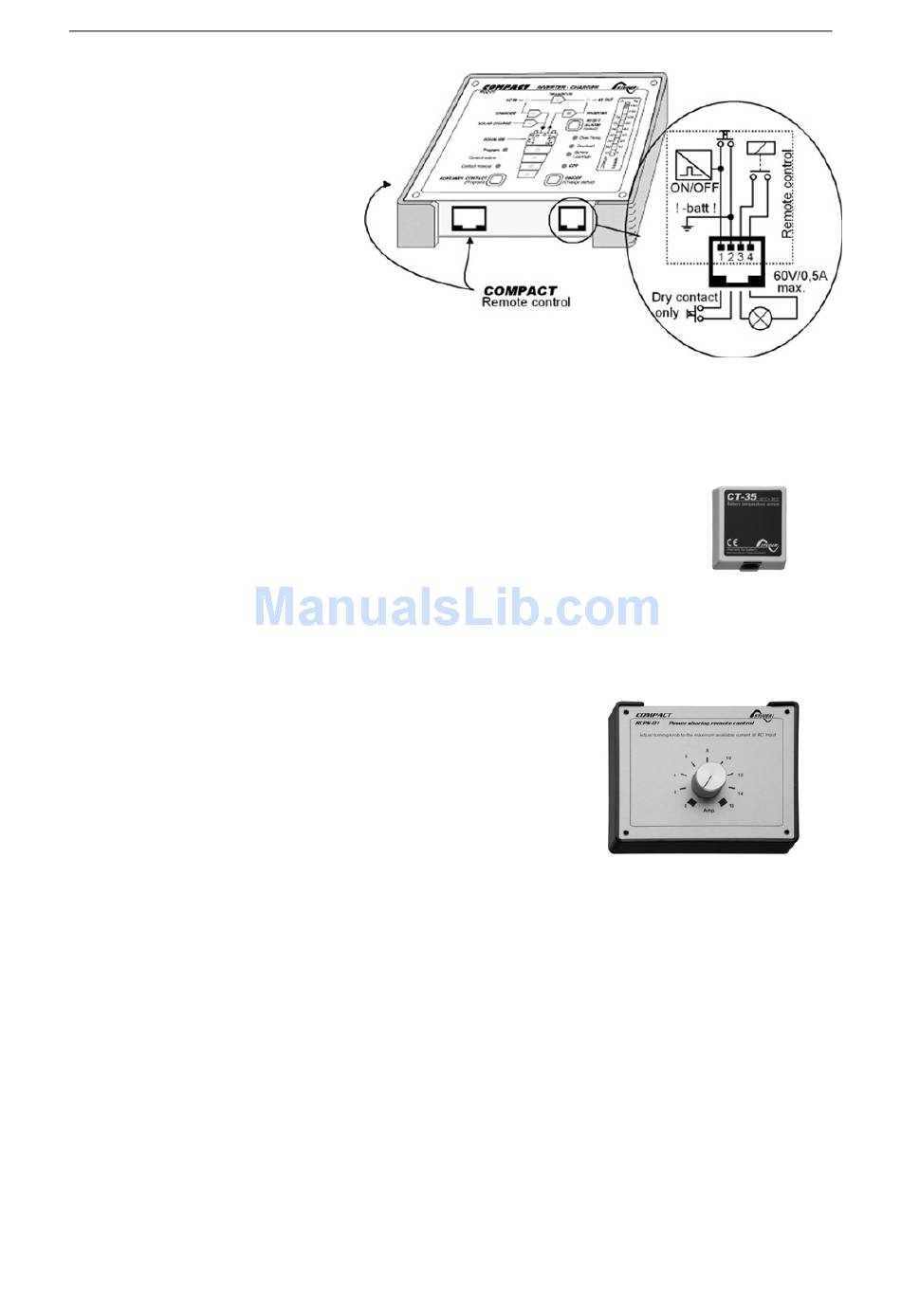

Auxiliary Contact of the
COMPACT. This con-tact is
active in case of an alarm of
the COMPACT.
The Control Input is connected
in parallel to the ON/OFF-
push button. The COMPACT
can be switched on or off
through this input with an
impulse button or an impulse
contact.
Caution: No external voltage
should be connected to this
Input Control.
Order Number for Remote Control: RCC-01
Dimensions: H x B x T / 111.5 x 136.5 x 25mm

4.11 The Temperature sensor CT-35

Operating voltage of lead-acid batteries change depends on the
temperature. To correct the operating voltages according to the
actual temperatures, a temperature sensor can be connected to the
COMPACT.
The compensation through the sensor is –3mV/°C/Cell.
Order Number: CT-35
Dimensions: H x B x T / 58 x 51.5 x 22mm
4.12 Remote control for „Power Sharing" RPS-01
If the Remote control RPS-01 is installed, the Trimmer
(26) "INPUT LIMIT" has to be set on the value max.. The
COMPACT takes into account the lowest values set on
the inverter and on the Remote control.
The current available at the COMPACT input will be
determined by the power of the connected source
(generator, grid etc...). The potentiometer on the RPS-01
must be adjusted lower or equal to max. value of the
power source.
For instance if the source is a generator of 2000 Watt, the potentiometer has to be
set at max. 8A. This value is obtained in dividing 2000 Watt by 230V. If the
COMPACT is connected to a power source which is protected by a 6A circuit
breaker, the potentiometer must be set at a max. value of 6A.
Caution: the COMPACT will not limit if an appliance draws more current than
available from the source ! This means that the connected generator will be
over-loaded or that the circuit-breaker before the COMPACT will break.
COMPACT V6.4 24/85
