SNMP IPv6 for UPS
127(
Before installation, please disconnect all power sources and critical loads con-
nected to the UPS. Otherwise, the SNMP IPv6 might have shorting issues to
cause UPS shutdown or damage.
Please install the SNMP IPv6 inside your UPS's SNMP slot. If your UPS does not have
any SNMP slot, please install it in an optional external SNMP box.
z
Please follow the procedures below to install the SNMP IPv6 into your UPS's
SNMP slot.

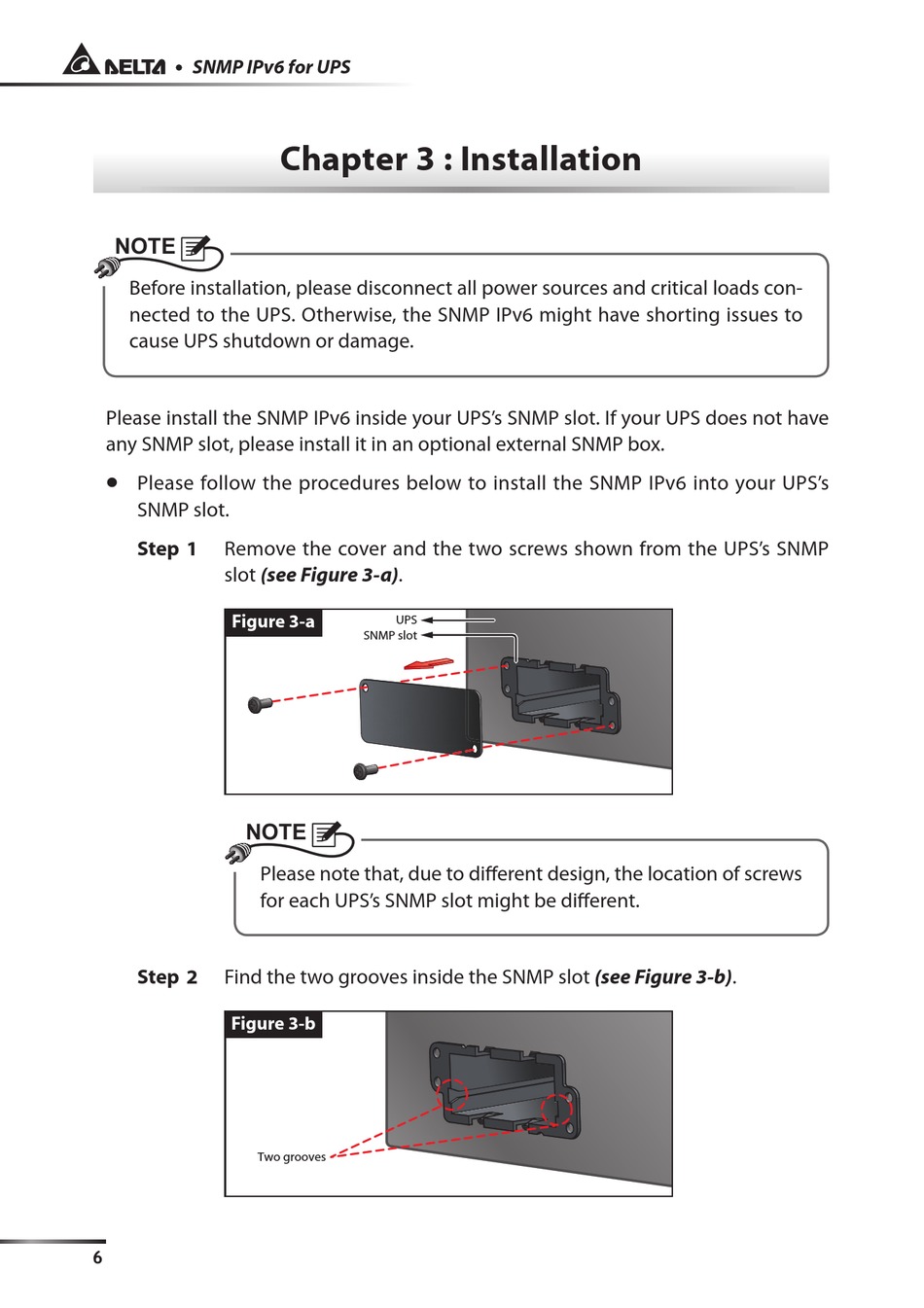

Step 1
Remove the cover and the two screws shown from the UPS's SNMP
slot (see Figure 3-a).
Figure 3-a
127(
Please note that, due to different design, the location of screws
for each UPS's SNMP slot might be different.
Step 2
Find the two grooves inside the SNMP slot (see Figure 3-b).
Figure 3-b
Two grooves
Chapter 3 : Installation
UPS
SNMP slot
