Installing the Data Cable

The Data Cable is the communication link between the Charging Device and the
Remote Display. It has a sealed connection at the device end and unsealed
connector at the display end. If the Charging Device is installed in the engine
bay, a 10mm diameter feed-through hole must be drilled in the rewall for the
Data Cable.
DO NOT FORCE THE DATA CABLE THROUGH AN EXISTING FACTORY WIRING
GROMMET AS THIS COULD RESULT IN DAMAGE TO THE CONNECTOR.

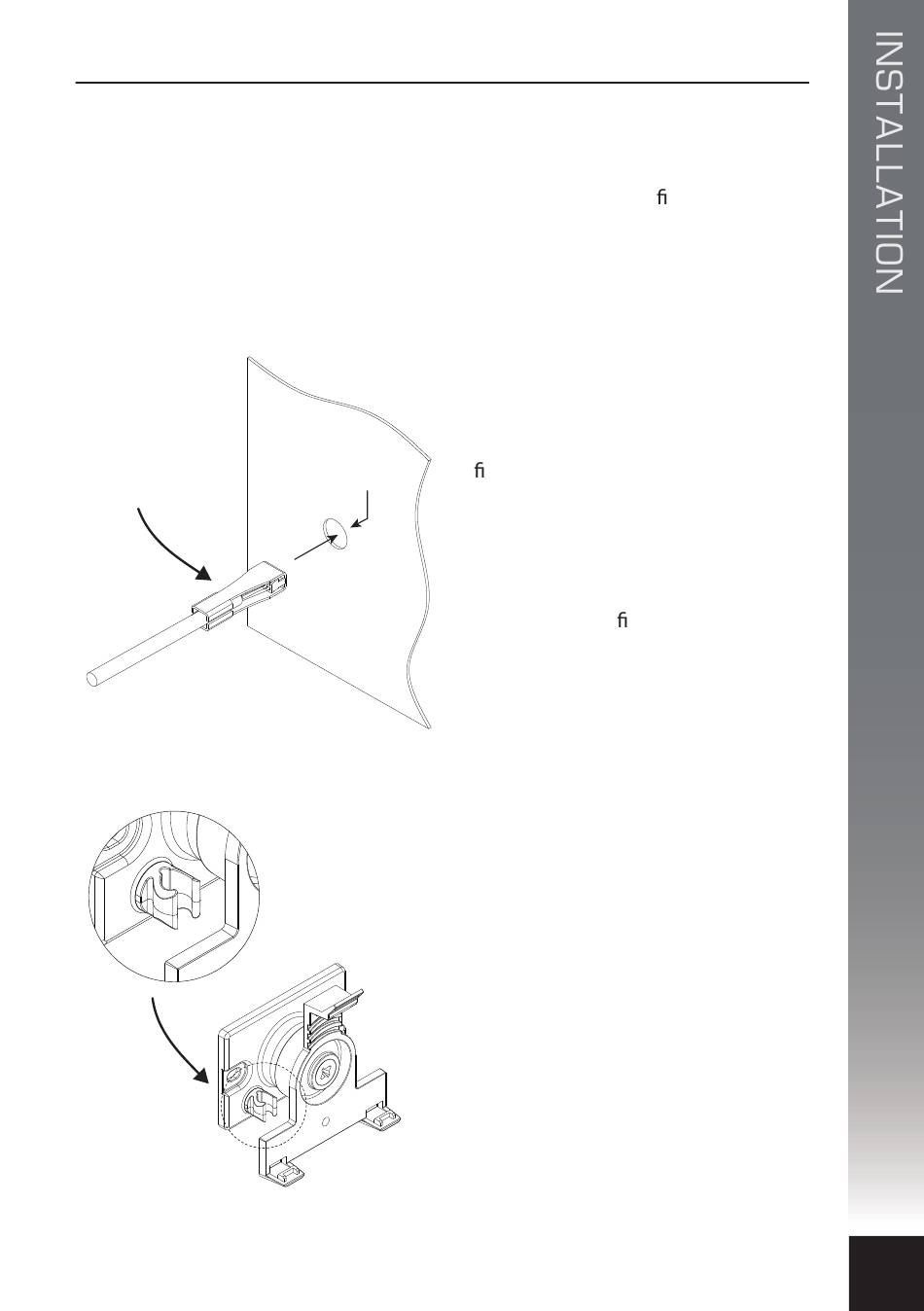

Connector protector
to remain in place
until ready to plug in
Data Cable
retaining
clips
The Data Cable must be fed through
the hole from the engine bay side as
the sealed connector will not pass
through the hole. A rubber grommet
is tted to the cable and must be
10mm Ø
utilised to prevent damage to the
cable sheath from any sharp metal
edges.
The Data Cable is tted with a PVC
'clamshell' protector over the Remote
Display connector plug. This is to
protect the plug from damage when
being routed into the vehicle cabin.
The protector should only be removed
when you are ready to plug into the
Remote Display.
There are two plastic clips located on
the Remote Display mounting base.
These are used to secure the Data
Cable and relieve any strain on the
connector. The cable can simply be
pushed into the clip after the
connector has been plugged in to the
socket on the rear of the Remote
Display but not until it is mounted
(see page 16).
15
