13

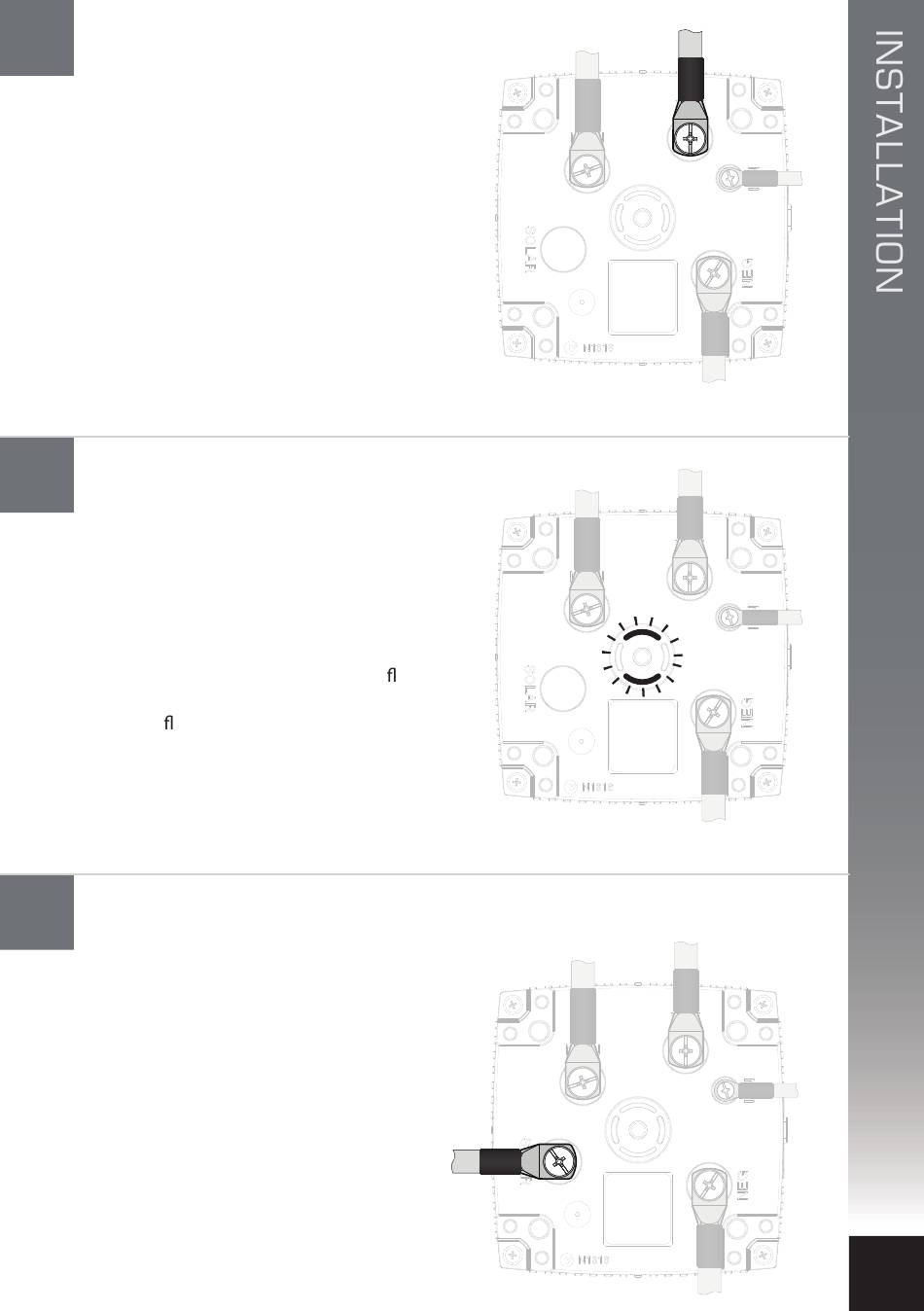

Connect the auxiliary battery cable
to the Charging Device
The auxiliary positive battery cable should
now be connected. Check the in-line fuse
is removed prior to connecting the cable.
Connect the Charging Device end of the
positive cable to the terminal marked AUX
using the special screw provided. Connect
the other end of the cable to the auxiliary
battery positive. Insert the fuse into the
inline fuse holder and continue to next
step. Ensure the auxiliary battery
negative cable is connected to complete
the circuit.
14
Confirming operation
The Charging Device should now be active.
Subject to the state of the main and auxiliary
batteries, the Charging Device will now enter
stand by mode or a charging stage. See
pages 39-40 for more information.
As a result the LED indicators will re ect the
current stage, for example if the current
stage is ' oat' they will illuminate green
continuously. If a solar panel is to be
connected continue to next step.
Otherwise continue to step 16.
15
Connect the solar panel power cable (if available)
The solar panel positive power cable
can now be connected. Check the
in-line fuse is removed prior to
connecting the cable. Connect the
output positive cable from the solar
panel to the terminal marked SOLAR
using the special screw provided.
Reinstall the fuse into the inline fuse
holder. Subject to the state of the
auxiliary battery, the Charging Device
may enter solar mode. See page 6
for more information. Continue to
next step.
interVOLT Model
DCC1225ACD
Battery to Battery
Charging Device
12VDC - 12VDC
25 Amps max.
interVOLT Model
DCC1225ACD
Battery to Battery
Charging Device
12VDC - 12VDC
25 Amps max.
interVOLT Model
DCC1225ACD
Battery to Battery
Charging Device
12VDC - 12VDC
25 Amps max.
23
