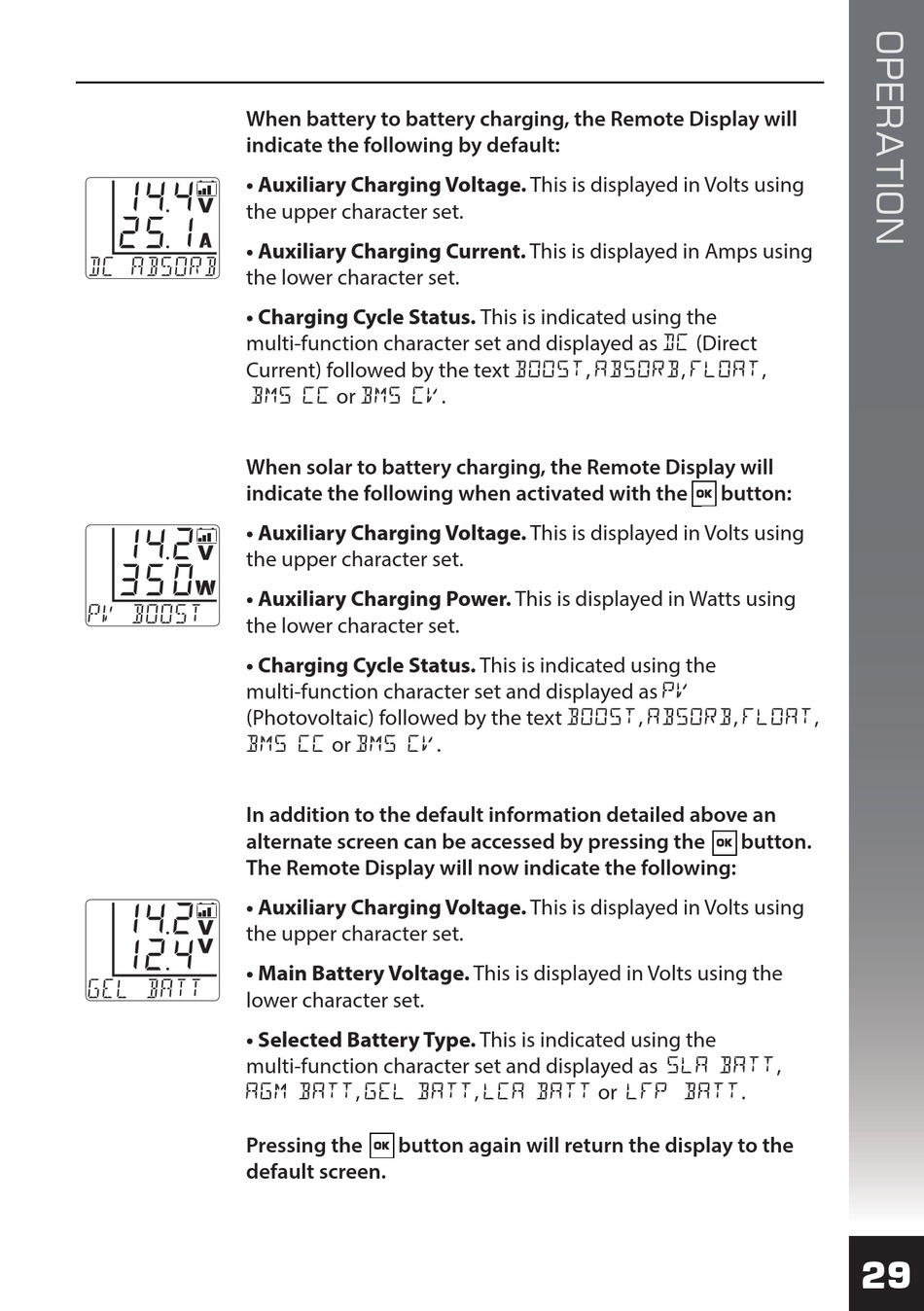

When battery to battery charging, the Remote Display will
indicate the following by default:
• Auxiliary Charging Voltage. This is displayed in Volts using
the upper character set.
• Auxiliary Charging Current. This is displayed in Amps using
the lower character set.
• Charging Cycle Status. This is indicated using the
multi-function character set and displayed as DC (Direct
Current) followed by the text BOOST, ABSORB, FLOAT,
BMS CC or BMS CV.
When solar to battery charging, the Remote Display will
indicate the following when activated with the button:
OK
• Auxiliary Charging Voltage. This is displayed in Volts using
the upper character set.
• Auxiliary Charging Power. This is displayed in Watts using
the lower character set.
• Charging Cycle Status. This is indicated using the
multi-function character set and displayed as PV
(Photovoltaic) followed by the text BOOST, ABSORB, FLOAT,
BMS CC or BMS CV.
In addition to the default information detailed above an
alternate screen can be accessed by pressing the button.
OK
The Remote Display will now indicate the following:
• Auxiliary Charging Voltage. This is displayed in Volts using
the upper character set.
• Main Battery Voltage. This is displayed in Volts using the
lower character set.
• Selected Battery Type. This is indicated using the
multi-function character set and displayed as SLA BATT,
AGM BATT, GEL BATT, LCA BATT or LFP BATT.
Pressing the button again will return the display to the
OK
default screen.
