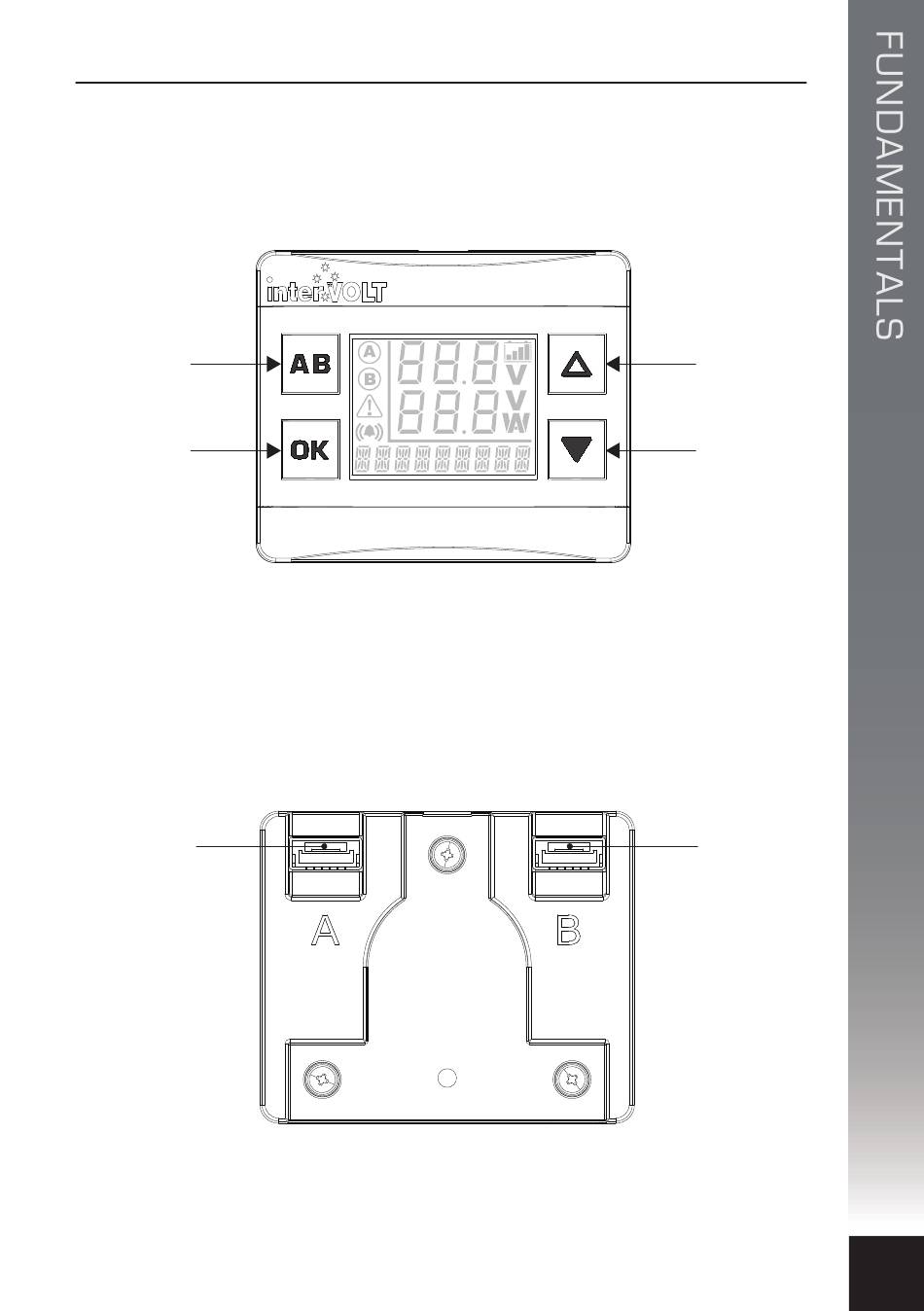

Layout - Remote Display
FOR SWITCHING
BETWEEN TWO
CHARGING DEVICES.
ALSO USED AS
BACK AND EXIT
BUTTON.
CONFIRMATION
SELECTION BUTTON.
ALSO USED TO
TOGGLE BETWEEN
DEFAULT AND
ALTERNATE SCREEN.*
* See Page 28 for further information.
CHARGING
DEVICE
INPUT
A
Note: Images above shown approximately actual size.
Front View
Back View
'UP' SELECTION
OR HIGH
BRIGHTNESS
CONTROL.
'DOWN' SELECTION
OR LOW
BRIGHTNESS
CONTROL. ALSO
USED TO TURN OFF
BACKLIGHT.
CHARGING
DEVICE
INPUT
B
9
