intervolt DCC Pro Installation & Operation Manual page 22

4

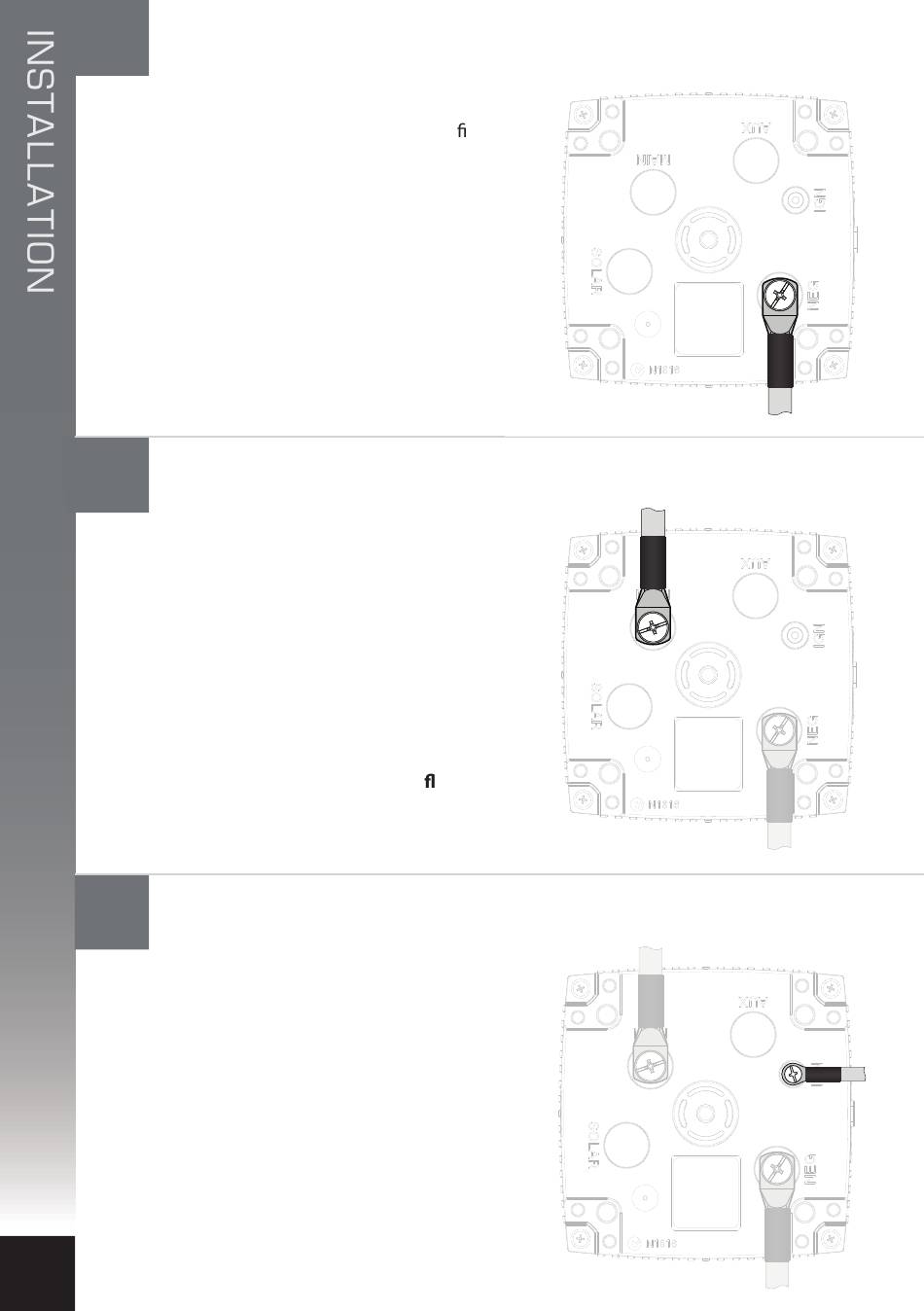

Connect the negative power cable to the Charging Device
The negative power cable should be
connected to the Charging Device rst.
This should be fastened to the terminal
marked NEG using the special screw
provided. Connect the other end of the
negative to the main battery negative
(recommended) or directly to the
chassis, ensuring the connection has
good contact. Ensure the auxiliary
battery negative is either connected to
the NEG terminal of the Charging
Device or the chassis.
5
Connect the main battery cable to the Charging Device
The main positive power cable is the
next to be connected. Check the in-line
fuse is removed prior to connecting the
cable. Connect the Charging Device end
of the positive cable to the terminal
marked MAIN using the special screw
provided. Connect the other end of the
cable to the main battery positive. Insert
the fuse into the inline fuse holder. The
Charging Device is now powered and
the LED indicators should be ashing
white intermittently.
6
Connect the ignition cable to the Charging Device
(if utilised)
The ignition cable is the next to be
connected, if the intention is to use
Ignition Control Mode (see page 7).
Keep in mind that the control mode
setting is optional and, even if the
ignition wire is connected, it does not
necessarily need to be implemented in
set-up mode.
Important! Do not connect
auxiliary battery cable at
this time.
20
interVOLT Model
DCC1225ACD
Battery to Battery
Charging Device
12VDC - 12VDC
25 Amps max.
interVOLT Model
DCC1225ACD
Battery to Battery
Charging Device
12VDC - 12VDC
25 Amps max.
interVOLT Model
DCC1225ACD
Battery to Battery
Charging Device
12VDC - 12VDC
25 Amps max.
