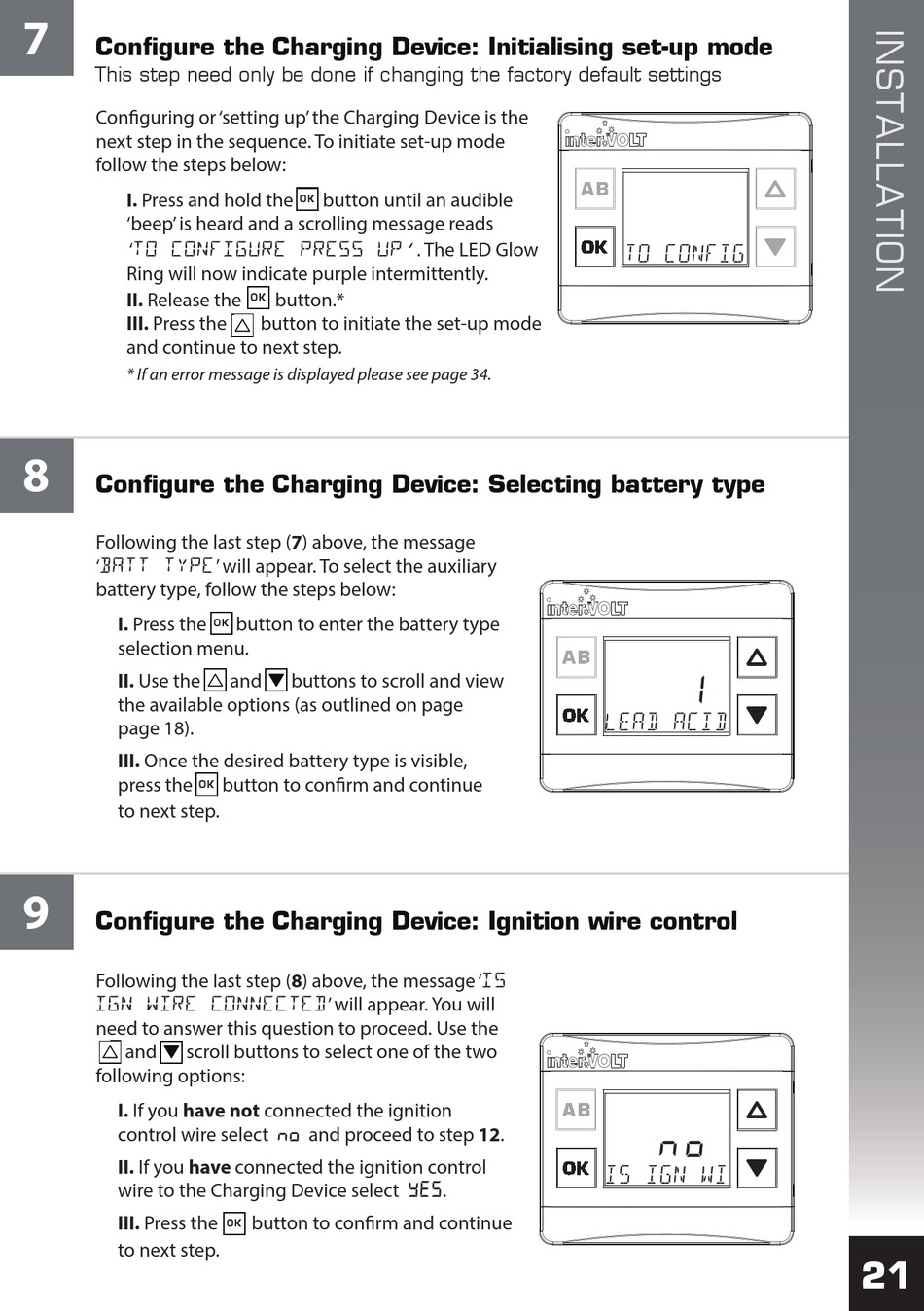

7
Configure the Charging Device: Initialising set-up mode
This step need only be done if changing the factory default settings
Con guring or 'setting up' the Charging Device is the
next step in the sequence. To initiate set-up mode
follow the steps below:
I. Press and hold the
'beep' is heard and a scrolling message reads
'To configure press up'. The LED Glow
Ring will now indicate purple intermittently.
II. Release the
III. Press the
and continue to next step.
* If an error message is displayed please see page 34.
8
Configure the Charging Device: Selecting battery type
Following the last step (7) above, the message
'BATT TYPE' will appear. To select the auxiliary
battery type, follow the steps below:
I. Press the
selection menu.
II. Use the
the available options (as outlined on page
page 18).
III. Once the desired battery type is visible,
press the
to next step.
9
Configure the Charging Device: Ignition wire control
Following the last step (8) above, the message 'IS
IGN WIRE CONNECTED' will appear. You will
need to answer this question to proceed. Use the
and scroll buttons to select one of the two
following options:
I. If you have not connected the ignition
control wire select no and proceed to step 12.
II. If you have connected the ignition control
wire to the Charging Device select YES.
III. Press the
to next step.
button until an audible
OK
button.*
OK
button to initiate the set-up mode
button to enter the battery type
OK
and buttons to scroll and view
button to con rm and continue
OK
button to con rm and continue
OK
21
