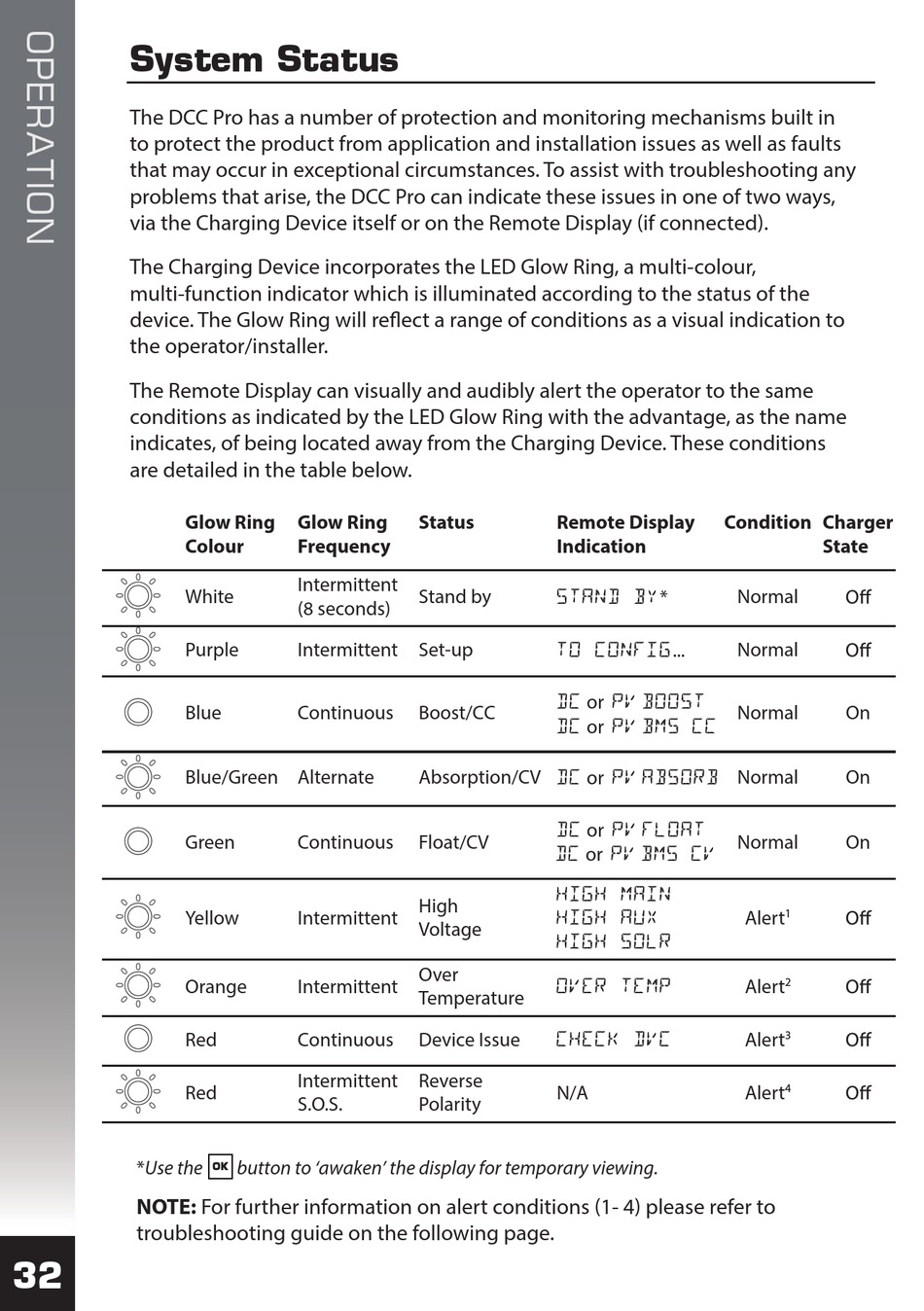

System Status

The DCC Pro has a number of protection and monitoring mechanisms built in
to protect the product from application and installation issues as well as faults
that may occur in exceptional circumstances. To assist with troubleshooting any
problems that arise, the DCC Pro can indicate these issues in one of two ways,
via the Charging Device itself or on the Remote Display (if connected).
The Charging Device incorporates the LED Glow Ring, a multi-colour,
multi-function indicator which is illuminated according to the status of the
device. The Glow Ring will re ect a range of conditions as a visual indication to
the operator/installer.
The Remote Display can visually and audibly alert the operator to the same
conditions as indicated by the LED Glow Ring with the advantage, as the name
indicates, of being located away from the Charging Device. These conditions
are detailed in the table below.
Glow Ring
Colour
White
Purple
Blue
Blue/Green Alternate
Green
Yellow
Orange
Red
Red
*Use the
NOTE: For further information on alert conditions (1- 4) please refer to
troubleshooting guide on the following page.
32
Glow Ring
Frequency
Intermittent
(8 seconds)
Intermittent Set-up
Continuous
Continuous
Intermittent
Intermittent
Continuous
Intermittent
S.O.S.
button to 'awaken' the display for temporary viewing.
OK
Status Remote Display
Indication
Stand by
STAND BY*
TO CONFIG...
DC or pv BOOST
Boost/CC
DC or pv BMS CC
Absorption/CV DC or pv ABSorb Normal
DC or pv FLOAT
Float/CV
DC or pv BMS CV
HIgh main
High
High AUX
Voltage
high solr
Over
OVER TEMP
Temperature
Device Issue
check dvc
Reverse
N/A
Polarity
Condition Charger
State
Normal
Normal
Normal On
On
Normal On
Alert
1
Alert
2
Alert
3
Alert
4
