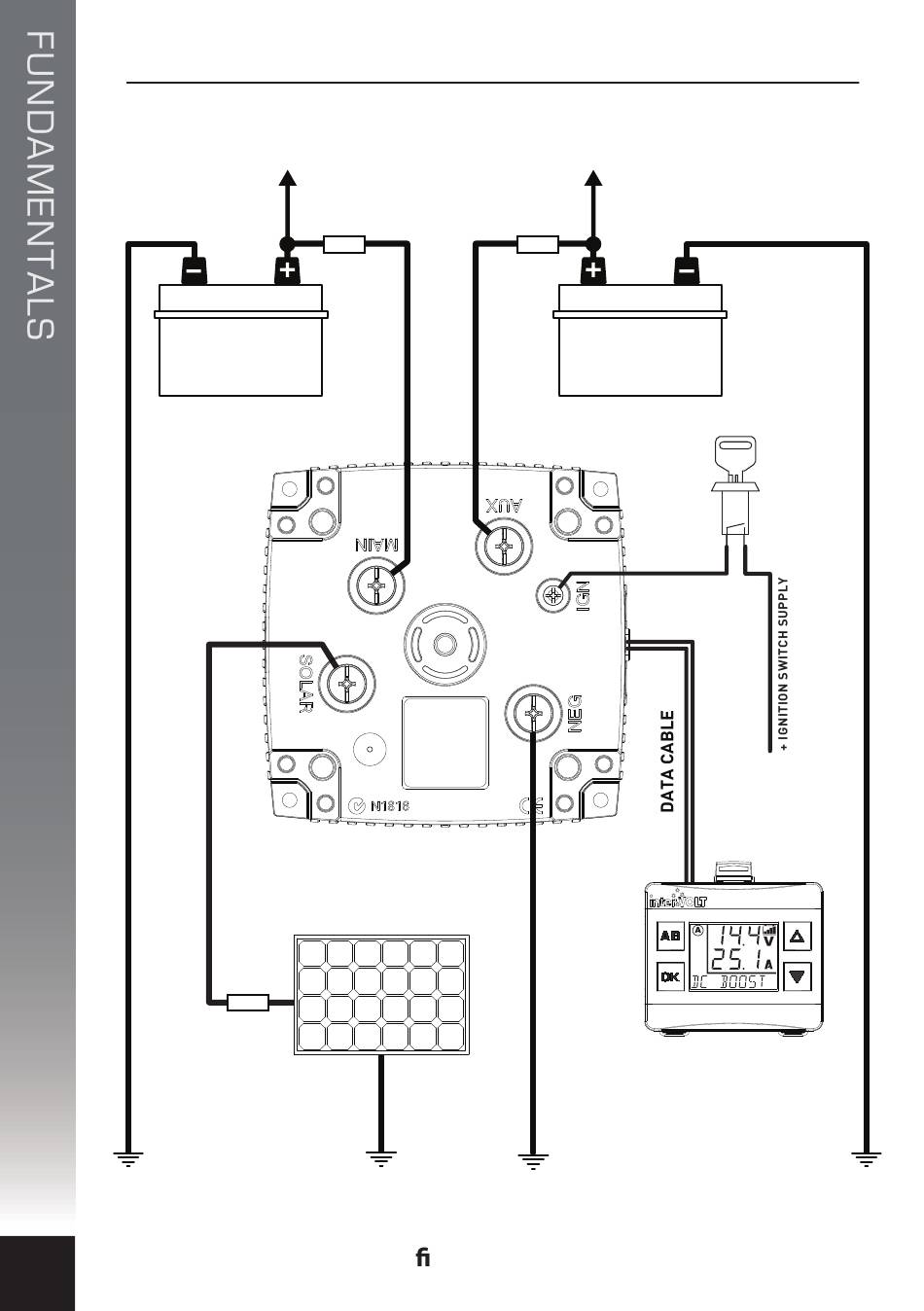

Standard Wiring Diagram
NOTE: Do not connect auxiliary battery to Charging Device
until system has been con gured.
10
TO
ENGINE
FUSE
12V
MAIN
FUSE
SOLAR
PANEL
TO AUXILIARY
EQUIPMENT
FUSE
interVOLT Model
DCC1225ACD
Battery to Battery
Charging Device
12VDC - 12VDC
25 Amps max.
CHARGING
DEVICE
12V
AUX
OPTIONAL
IGNITION
SWITCH
REMOTE
DISPLAY
