Installing the Data Cable

The Data Cable is the communication link between the Charging Device and the
Remote Display. It has a sealed connection at the device end and unsealed
connector at the display end. The Data Cable is tted with a PVC 'clamshell'
protector over the Remote Display connector plug. This is to protect the plug
from damage when being routed into the vehicle cabin.

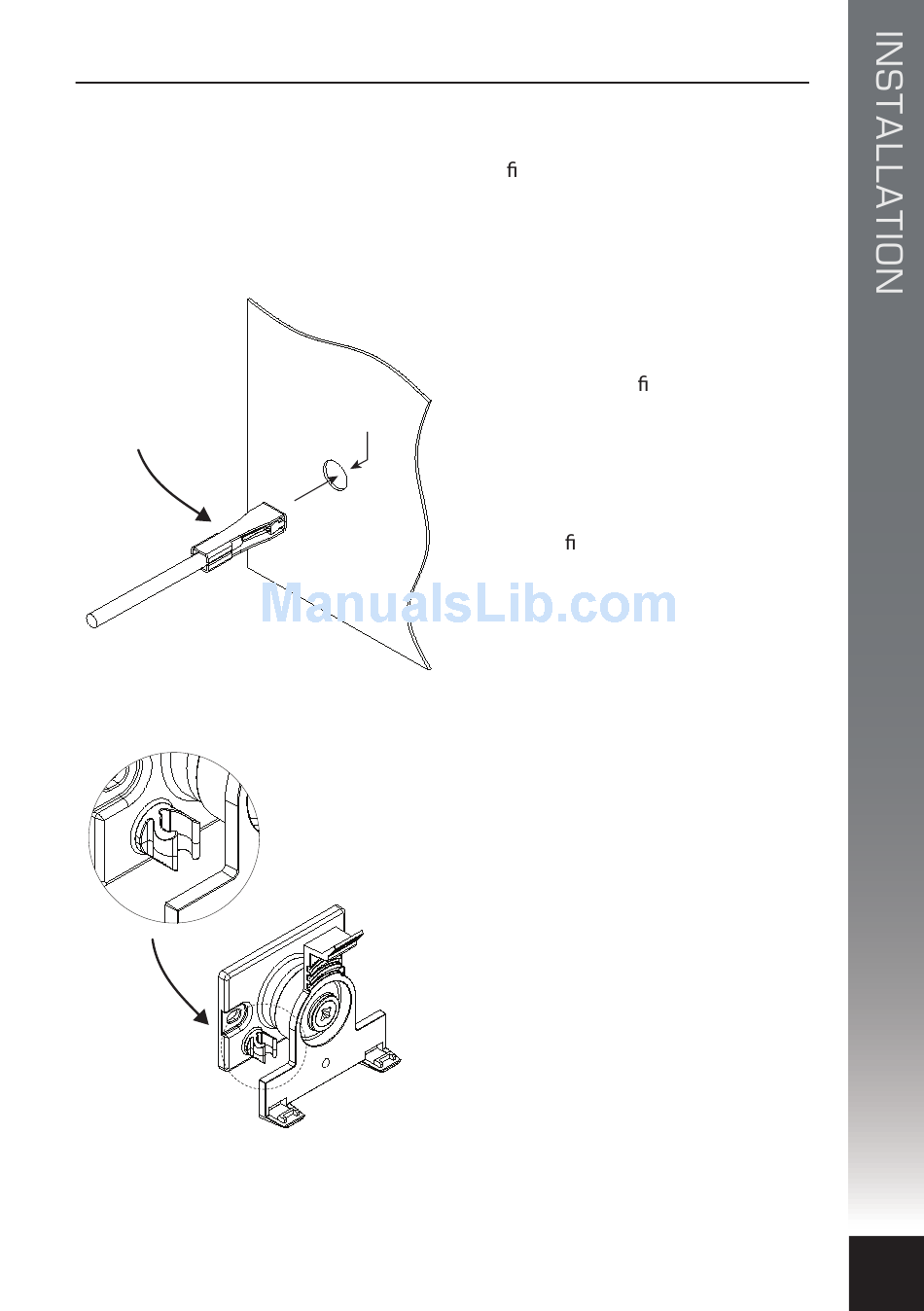

Connector protector
to remain in place
until ready to plug in
Data Cable
retaining
clips
To install the Data Cable a 10mm
diameter feed through hole must be
drilled in the panel separating the
Charging Device from the Remote
Display (usually the rewall).
10mm Ø
The Data Cable must be fed through
the hole from the Charging Device
side as the sealed connector will not
pass through the hole. A rubber
grommet is tted to the cable and
must be utilised to prevent damage
from the sharp edges of the feed
through hole.
After the Data Cable has been routed
through any obstacles, the PVC
protector can be removed. It is
recommended that the protector
only be removed when ready to
plug into the Remote Display.
There are two plastic clips located on
the mounting bracket base. These are
provided for holding the Data Cable
to relieve any strain on the connector
and should be utilised wherever
possible. The Data Cable simply
pushes into the clip in the desirable
position after the connector is
plugged into the socket on the rear
of the Remote Display.
15
