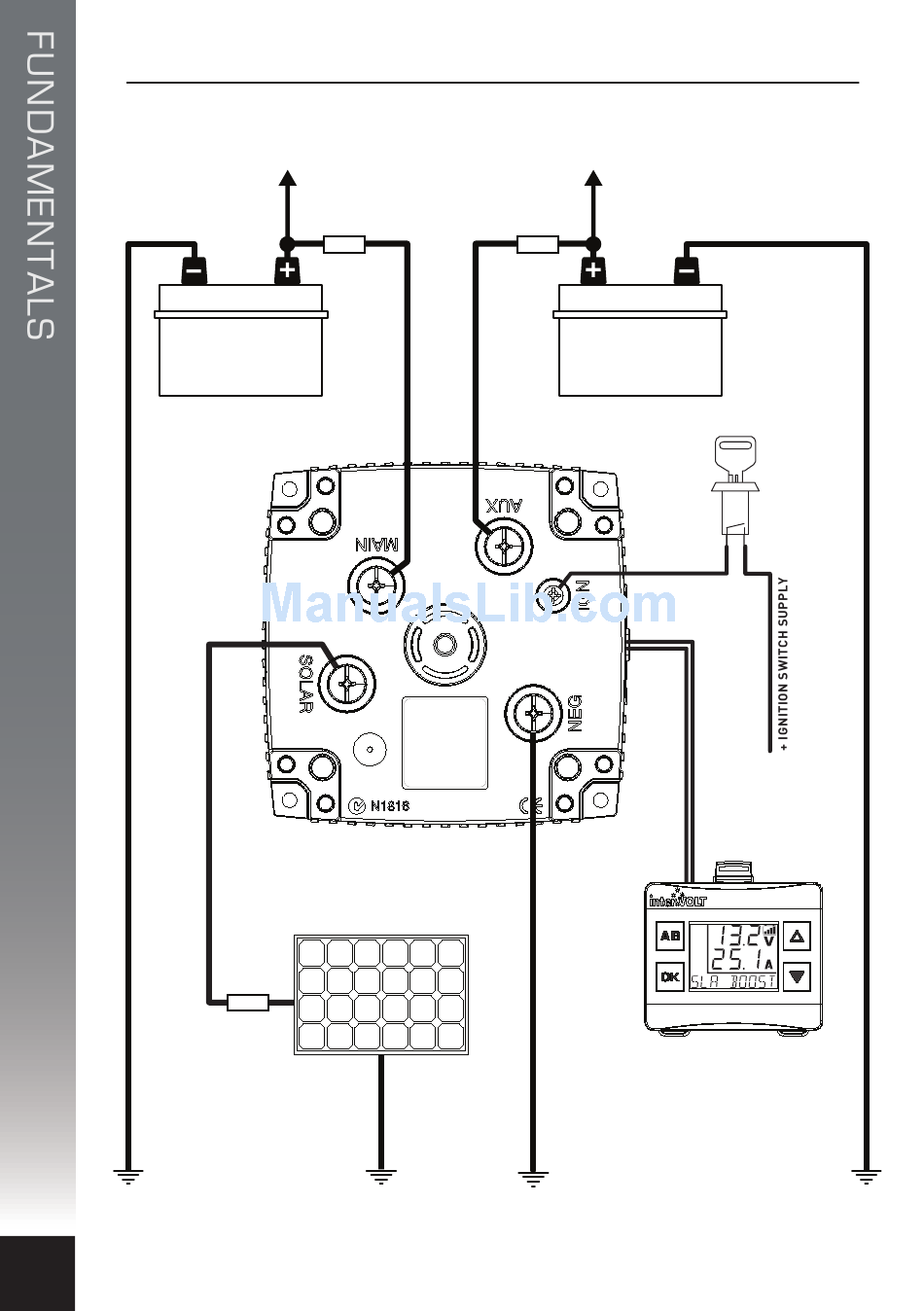

Standard Wiring Diagram
10
TO
ENGINE
FUSE
12V
MAIN
FUSE
SOLAR
PANEL
TO AUXILIARY
EQUIPMENT
FUSE
interVOLT Model
DCC1225ACD
Battery to Battery
Charging Device
12VDC - 12VDC
25 Amps max.
12V
AUX
OPTIONAL
IGNITION
SWITCH
DCC DISPLAY
