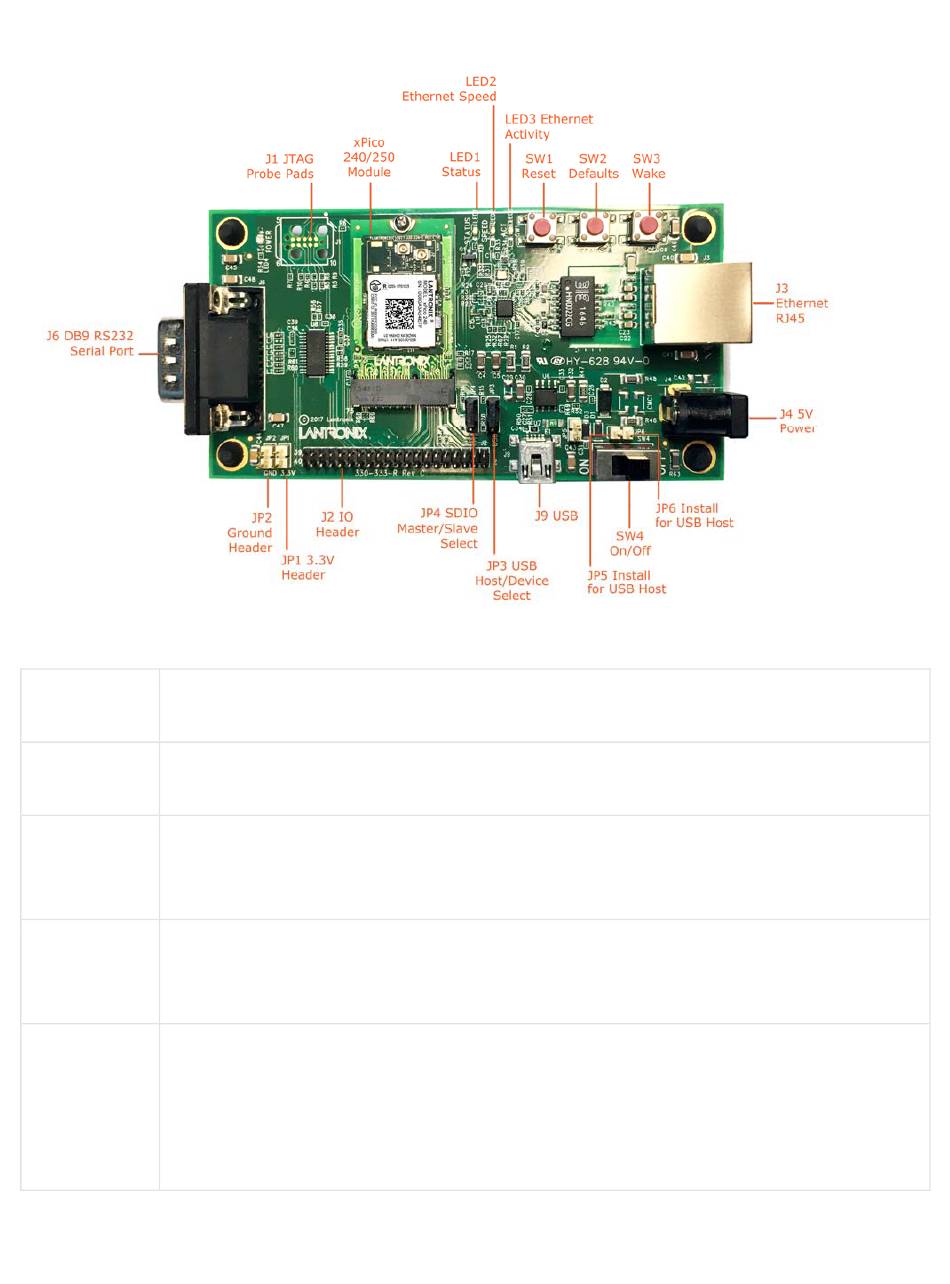

xPico 200 Evaluation Board
Connectors, Headers and Switches
Ref Des.
J7
xPico 200 Module Socket
3.3V Power Header
JP1
Test point to monitor the 3.3V regulator output.
Ground Header
JP2
Test point to connect to evaluation board signal ground.
USB Host/Device Select
Install Jumper to pins 1 to 2 for USB Device Mode
JP3
Install Jumper to pins 2 to 3 for USB Host Mode (Host mode also requires
jumper install on JP5, JP6 to provide power out of J9)
Connector/Header Functions
