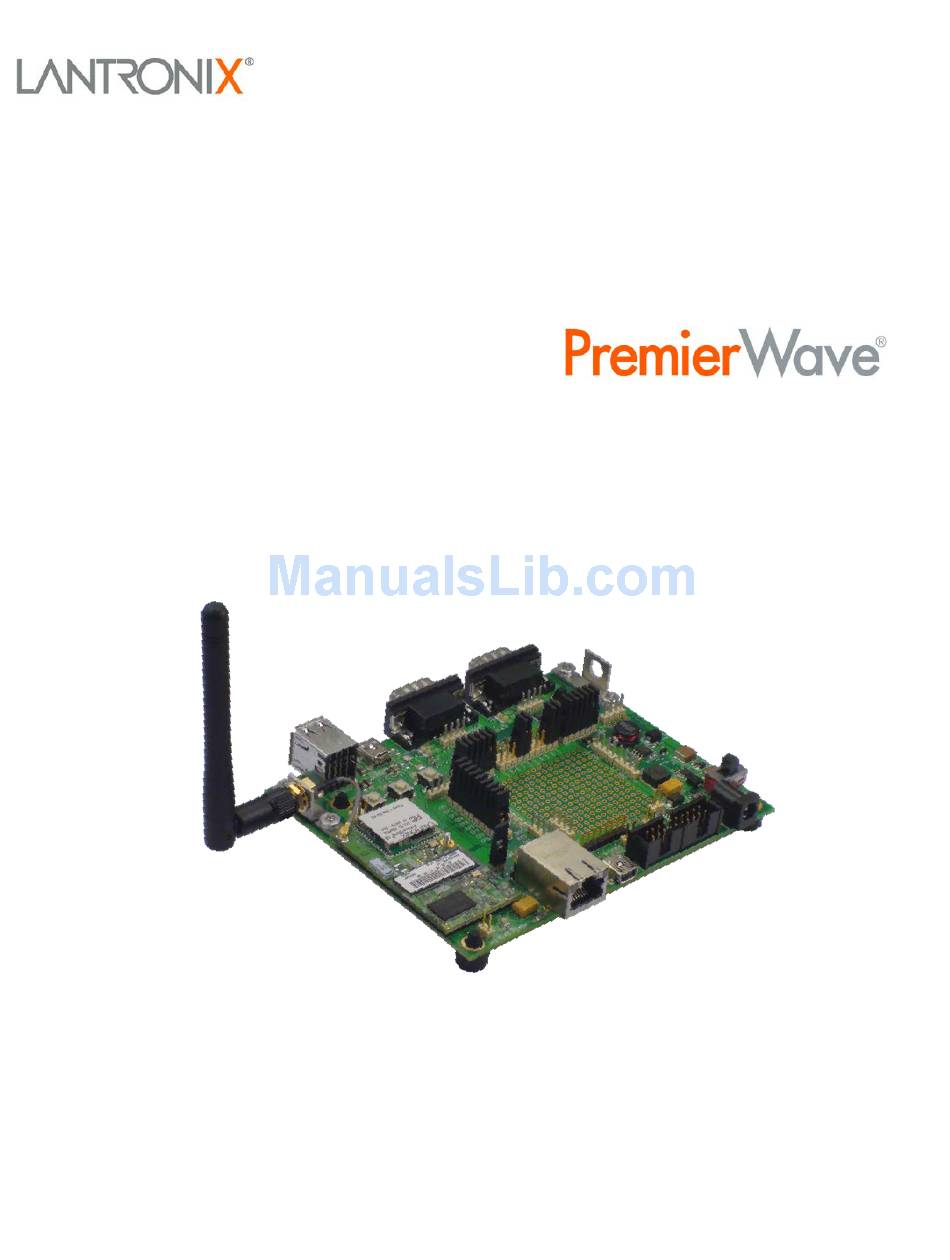

- Page 1 PremierWave Evaluation Board Quick Start Part Number 900-582 Revision C July 2014...
-
Page 2: Intellectual Property
Intellectual Property © 2014 Lantronix. All rights reserved. No part of the contents of this book may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Printed in the United States of America. -
Page 3: Revision History
Initial Document. July 2011 Updated with WebManager information, for v7.2 release. July 2014 Updated to include the PremierWave SE1000 embedded system on module. For the latest revision of this product document, please check our online documentation at www.lantronix.com/support/documentation. PremierWave® Evaluation Board Quick Start... -
Page 4: Table Of Contents
Option 2: Wireless connection via Access Point or Wireless Router (PremierWave EN model only) __________________________________________ 7 Option 3: Wireless connection via Wireless card (factory default for PremierWave EN model only) ___________________________ 8 Connecting a PremierWave Device—Serial Method________________________________ 9 Installing DeviceInstaller _____________________________________________________ 9... -
Page 5: Introduction
Thank you for purchasing the Lantronix® PremierWave® evaluation board or development kit. This quick start guide describes the procedures for initial connection to the PremierWave device through either a network connection or serial port. This user guide can be used for the PremierWave EN and PremierWave SE1000 embedded system on modules. -
Page 6: What You Need To Know
XX-XX-XX-XX-XX-XX, where the XXs are unique numbers assigned to the product. The product label denotes the hardware MAC address for the Wired Ethernet interface for PremierWave. The hardware MAC address for the WLAN interface (if available) is the next MAC address in the sequence. -
Page 7: Connecting A Premierwave Device-Network Method
*Options listed above are only applicable to the PremierWave EN model. Option 1: Wired connection via Ethernet 1. Connect the PC to the PremierWave Evaluation Board with a cross-over cable or a hub/switch and two RJ45 cables. Make sure there is no router between the PC and the Evaluation Board. -
Page 8: Option 3: Wireless Connection Via Wireless Card (Factory Default For Premierwave En Model Only)
Universal Power Supply; then plug the power supply into an outlet. 6. Connect the output plug of the power supply to the PremierWave Evaluation Board. 7. Move the power switch on the Evaluation Board to ON. This is the last step in 'connection.' The PremierWave is ready for configuration. -
Page 9: Connecting A Premierwave Device-Serial Method
Select an adapter and click OK. 2. Click the Search icon and select the unit from the list of Lantronix device servers on the local network. (In case no DHCP server is available, it can take 30 seconds before an AutoIP address is generated and the unit is detectable). - Page 10 6. Click Next. 7. Click Assign and wait several seconds until a confirmation message appears. 8. Click Finish. 9. Select the PremierWave from the main window list and click ToolsPing. The results appear in the Status area. PremierWave® Evaluation Board Quick Start...
-
Page 11: Configure Your Premierwave Device
If you do not receive “Reply” messages, ensure the IP address assigned is valid for the particular network segment you are working with. For a wireless unit, ensure the PremierWave is visible on the network created by the laptop or desktop PC’s wireless card. - Page 12 Some settings (e.g. network) require a reboot to become effective, which will be indicated once changes are submitted for the relevant settings. WLAN pages also have an Apply button that only applies the new settings but does not store them in Flash. PremierWave® Evaluation Board Quick Start...
