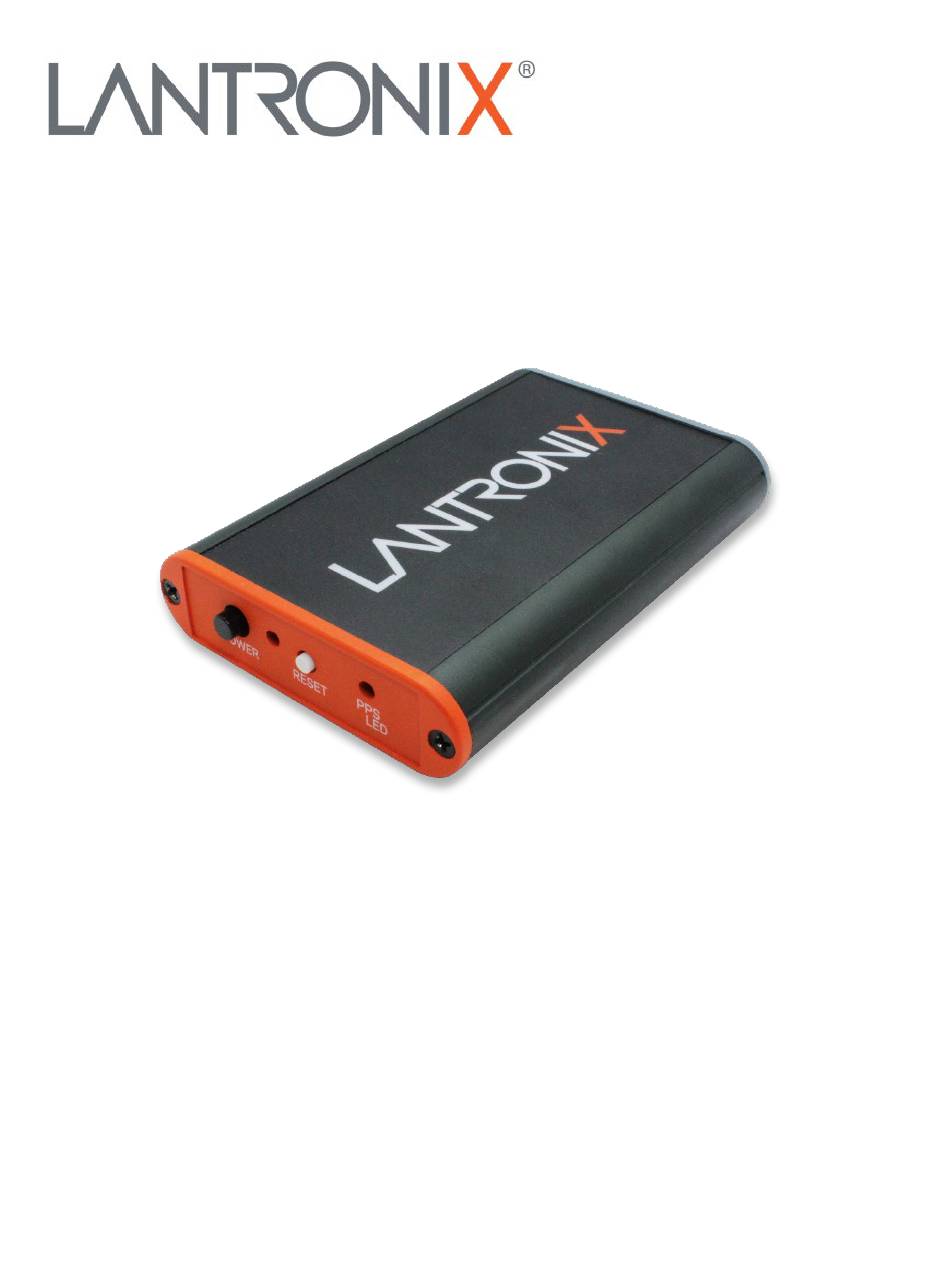

- Page 1 PNT-SG3FS Evaluation Kit User Guide Part Number PMD-00162 Revision A July 2023...
- Page 2 Technical Support Online: https://www.lantronix.com/technical-support/ Sales Offices For a current list of our domestic and international sales offices, go to the Lantronix web site at https://www.lantronix.com/about-us/contact/. Disclaimer All information contained herein is provided “AS IS”. Lantronix undertakes no obligation to update the information in this publication. Lantronix does not make, and specifically disclaims,...
- Page 3 Revision History Date Rev. Comments July 2023 Initial release. For the latest revision of this product document, please check our online documentation at https://www.lantronix.com/support/documentation/. PNT-SG3FS Evaluation Kit User Guide...
-
Page 4: Table Of Contents
Table of Contents 1. Introduction 2. Features 3. PNT-SG3FS-EVAL Evaluation Kit Contents 4. Interfaces Power Input _____________________________________________________________ 10 Power (On/Off) Button _____________________________________________________ 10 Reset __________________________________________________________________ 11 LED Indicators ___________________________________________________________ 11 UART Interface ___________________________________________________________ 12 GNSS Input Antenna ______________________________________________________ 12 I2C and Power Connector Interface ___________________________________________ 13 5. - Page 5 List of Figures Figure 1. Power Input _________________________________________________________ 10 Figure 2. Power (On/Off) Button _________________________________________________ 10 Figure 3. Reset Button ________________________________________________________ 11 Figure 4. Power LED Indicator __________________________________________________ 11 Figure 5. PPS LED Indicator ____________________________________________________ 11 Figure 6. USB/UART Connector _________________________________________________ 12 Figure 8.
- Page 6 List of Tables Table 1. UART Configuration ___________________________________________________ 12 Table 2. Connector Pin Description ______________________________________________ 13 PNT-SG3FS Evaluation Kit User Guide...
-
Page 7: Introduction

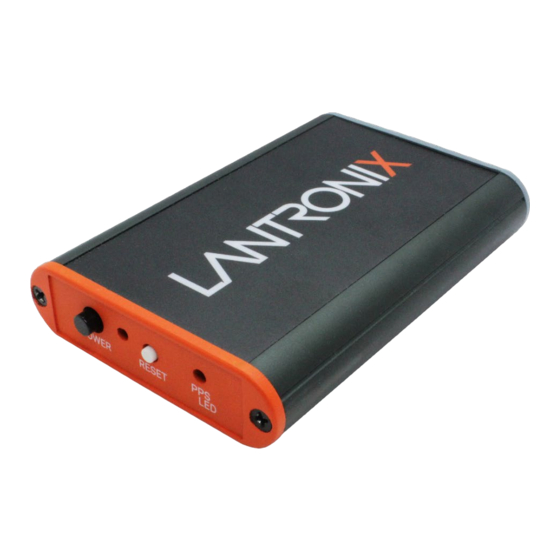

1. Introduction Introduction The PNT-SG3FS-EVAL evaluation kit is a complete standalone evaluation platform for the PNT- SG3FS GNSS module. The PNT-SG3FS module is an easy-to-use Global Navigation Satellite System (GNSS) standalone module, with an integrated Teseo-III receiver working simultaneously on multiple constellations (GPS/Galileo/Glonass/BeiDou/QZSS). -
Page 8: Features
2. Features Features The PNT-SG3FS-EVAL has the following features: USB power supply ♦ Internal backup battery option (battery not provided) ♦ ♦ Power and Reset buttons I2C and current measurement connectors ♦ ♦ UART connector via USB PPS and Power output LEDs ♦... -
Page 9: Pnt-Sg3Fs-Eval Evaluation Kit Contents
3. PNT-SG3FS-EVAL Evaluation Kit Contents PNT-SG3FS-EVAL Evaluation Kit Contents The PNT-SG3FS-EVAL evaluation kit consists of the following: PNT-SG3FS-EVAL evaluation board ♦ GNSS active antenna ♦ ♦ USB cable Quick start guide ♦ PNT-SG3FS Evaluation Kit User Guide... -
Page 10: Interfaces
♦ GNSS antenna input LED indicators ♦ Power Input Power is supplied to the PNT-SG3FS-EVAL via the micro-USB connector highlighted in Figure 1 below. Figure 1. Power Input Power (On/Off) Button The power button is highlighted in Figure 2 below. -
Page 11: Reset
Figure 3. Reset Button LED Indicators The PNT-SG3FS-EVAL offers two LED indicators as shown below. The red power LED indicator (highlighted in Figure 4 below) shows whether the unit is ♦ On (LED is lit) or Off (LED is unlit). -
Page 12: Uart Interface
GNSS input is available through an SMA female connector, highlighted in Figure 8 below. Figure 7. GNSS SMA Connector A passive or active antenna can be used on the PNT-SG3FS-EVAL. The DC power supply for active antenna is 3V3 with current limitation in case of a short circuit. -
Page 13: I2C And Power Connector Interface
4. Interfaces Note: Please use a DC blocker for passive antenna or connection of a GNSS simulator to the PNT-SG3FS-EVAL unit. I2C and Power Connector Interface The 10-pin CN302 connector highlighted in Figure 9 below provides I2C bus signal and pins to measure power consumption. -
Page 14: Current Measurement Process
5. Current Measurement Process Current Measurement Process The current measurement pins identified in Table 2 of the previous section are highlighted in Figure 10 below. Pin #9: VCC Pin #7: VBAT Pin #8: PM_VBAT Pin #10: PM_VCC Figure 9. Current Measurement Connector Pins To measure the current consumption of the PNT-SG3FS in different operating modes: 1. -
Page 15: Teseo-Suite Connection
Figure 11. Edit Session Configuration Button Add/Delete Device In the Configuration Session panel, you can add/delete PNT-SG3FS-EVAL devices in the work session and monitor existing devices. Click the "Add Device" button to bring up the Configuration Device form shown in Figure 14. -
Page 16: Figure 13. Configuration Device Panel
6. Teseo-Suite Connection Figure 12. Configuration Device panel Note: When selecting the Port Name, Teseo-Suite lists all COM ports available, even if these COM ports are already in use by another application. The GNSS Device Name and Protocol cannot be changed once the device has been added. -
Page 17: Connect Or Disconnect Control Port
6. Teseo-Suite Connection Figure 13. Configuration Session Panel with One Device Added To delete a device from the session, click the corresponding button in the Delete Device column. The Delete All button removes all devices from the current session. Connect or Disconnect Control Port After the Control Port has been defined, its corresponding checkbox is enabled. -
Page 18: Figure 16. View Nmea Output Button
Open the NMEA output window to confirm proper NMEA output using the button shown in Figure Figure 15. View NMEA Output Button The NMEA output panel displays the NMEA stream coming from the PNT-SG3FS-EVAL as shown in Figure 17 below. -
Page 19: Board General View
7. Board General View Board General View Internal Top View and Jumper Configuration Figure 17. Internal Board View Block Diagram Overview Figure 18. Block Diagram PNT-SG3FS Evaluation Kit User Guide... -
Page 20: Reference Documents
8. Reference Documents Reference Documents Additional documentation for the PNT-SG3FS GNSS module can be found at ♦ https://www.lantronix.com/support/documentation/. Teseo-Suite data brief: http://www.st.com/resource/en/data_brief/teseo-suite.pdf ♦ (DB3224, DocID030398) PNT-SG3FS Evaluation Kit User Guide...
