Summary of Contents for Lantronix PremierWave

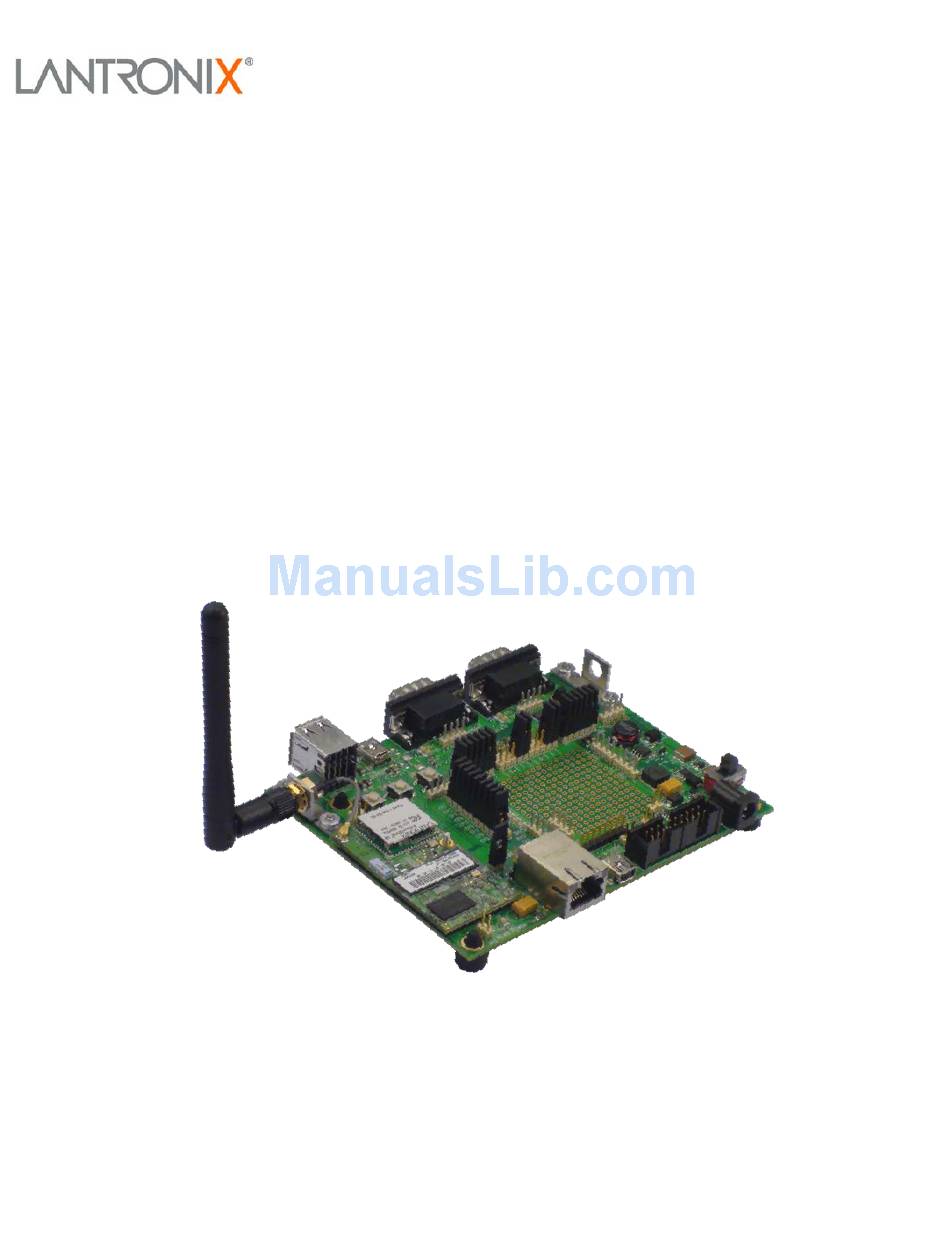

- Page 1 PremierWave ™ Evaluation Board Quick Start Part Number 900-582 Revision A January 2011...
-
Page 2: Copyright And Trademark
Copyright and Trademark © 2011 Lantronix. All rights reserved. No part of the contents of this book may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Printed in the United States of America. -
Page 3: Table Of Contents
What You Need to Know _____________________________________________________ 5 Hardware Address ______________________________________________________ 5 IP Address _____________________________________________________________ 5 Connecting a PremierWave Device—Network Method _____________________________ 6 Option 1: Wired connection via Ethernet __________________________________ 6 Option 2: Wireless connection via Access Point or Wireless Router _____________ 6 Option 3: Wireless connection via Wireless card (factory default) _______________ 7 Connecting a PremierWave Device—Serial Method________________________________ 8... -
Page 4: Introduction
Introduction Thank you for purchasing the PremierWave Evaluation Board or Development Kit from Lantronix. This Quick Start guide describes the procedures for initial connection to the PremierWave device through either a network connection or serial port. Once a connection is established you can use the command line interface (CLI) for configuration and control. -
Page 5: What You Need To Know
XX-XX-XX-XX-XX-XX, where the XXs are unique numbers assigned to the product. The product label denotes the hardware MAC address for the Wired Ethernet interface for PremierWave. The hardware MAC address for the WLAN interface is the next MAC address in the sequence. -
Page 6: Connecting A Premierwave Device-Network Method
3. Wireless connection via Wireless card (Adhoc – factory default) Option 1: Wired connection via Ethernet 1. Connect the PC to the PremierWave Evaluation Board with a cross-over cable or a hub/switch and two RJ45 cables. Make sure there is no router between the PC and the Evaluation Board. -
Page 7: Option 3: Wireless Connection Via Wireless Card (Factory Default)
Universal Power Supply; then plug the power supply into an outlet. 6. Connect the output plug of the power supply to the PremierWave Evaluation Board. 7. Move the power switch on the Evaluation Board to ON. This is the last step in 'connection.' The PremierWave is ready for configuration. -
Page 8: Connecting A Premierwave Device-Serial Method
Select an adapter and click OK. 2. Click the Search icon and select the unit from the list of Lantronix device servers on the local network. (In case no DHCP server is available, it can take 30 seconds before an AutoIP address is generated and the unit is detectable). - Page 9 6. Click Next. 7. Click Assign and wait several seconds until a confirmation message appears. 8. Click Finish. 9. Select the PremierWave from the main window list and click ToolsPing. The results appear in the Status area. PremierWave Evaluation Board Quick Start...
-
Page 10: Configure Your Premierwave Device
If you do not receive “Reply” messages, ensure the IP address assigned is valid for the particular network segment you are working with. For a wireless unit, ensure the PremierWave is visible on the network created by the laptop or desktop PC’s wireless card.
