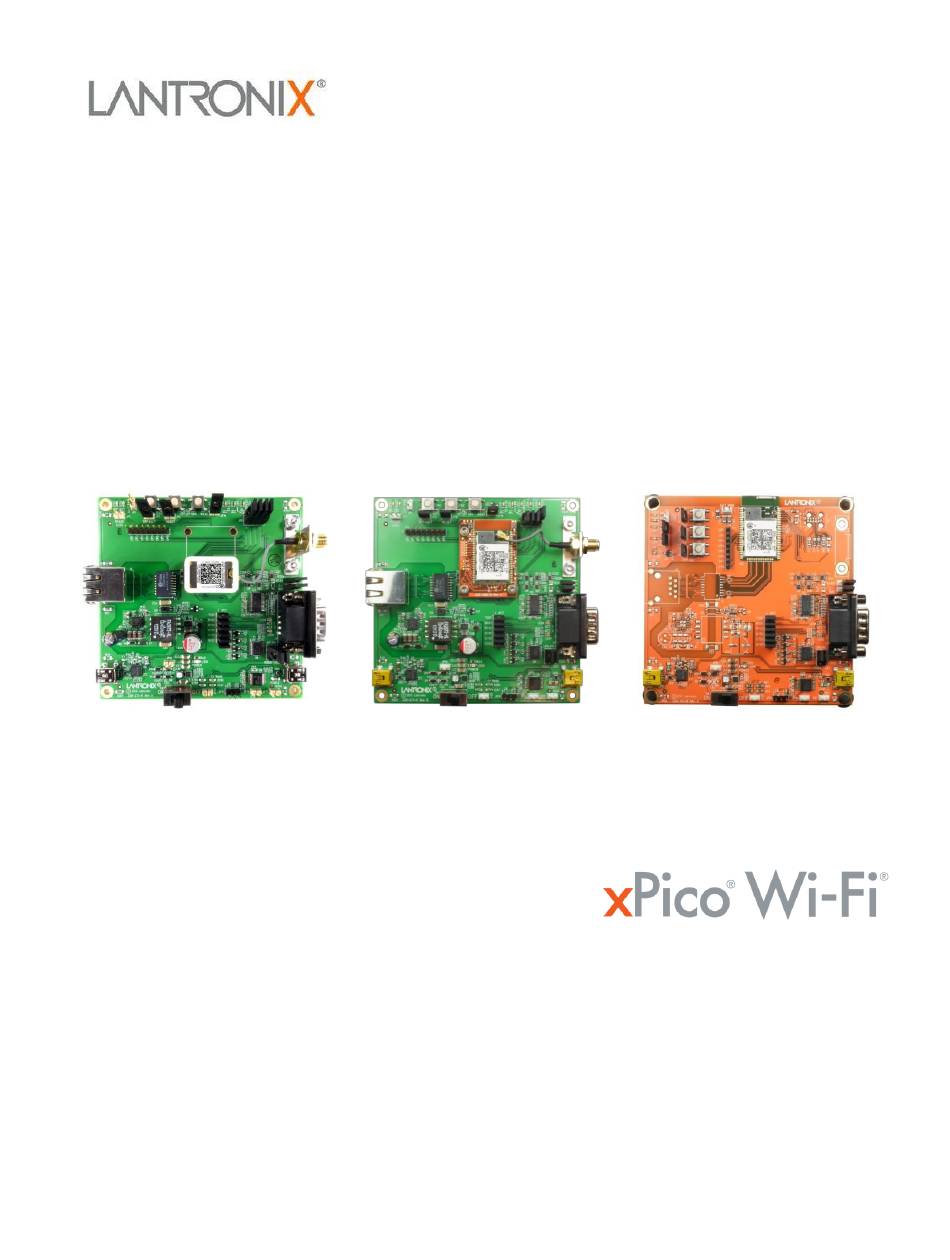

- Page 1 xPico Wi-Fi Embedded Device Server Evaluation Kit User Guide Part Number 900-643-R Revision E May 2019...
-
Page 2: Copyright And Trademark
Technical Support Online: www.lantronix.com/support Sales Offices For a current list of our domestic and international sales offices go to the Lantronix web site at www.lantronix.com/about/contact. Disclaimer and Revisions Note: This product has been designed to comply with the limits for a Class B digital device pursuant to Part 15 of FCC and EN55022 Rules when properly enclosed and grounded. -
Page 3: Revision History
Added xPico Wi-Fi module information. August 2013 Updated pin number information. December 2014 Updated Lantronix evaluation board information; added the new evaluation board schematic for SMT part with on-module antenna. May 2019 Clarified that RS485 is not available on the xPico Wi-Fi. -
Page 4: Table Of Contents
Table of Contents Copyright and Trademark ____________________________________________________ 2 Warranty _________________________________________________________________ 2 Contacts __________________________________________________________________ 2 Disclaimer and Revisions ____________________________________________________ 2 Revision History ____________________________________________________________ 3 List of Figures _____________________________________________________________ 5 List of Tables ______________________________________________________________ 5 1: Introduction About this Guide ___________________________________________________________ 6 Additional Documentation ____________________________________________________ 6 2: Evaluation Kit Evaluation Board Description _________________________________________________ 7... -
Page 5: List Of Figures
List of Figures Figure 2-1 xPico Wi-Fi Evaluation Board XPW100100K-01 Connectors and Jumpers ______ 8 Figure 2-2 xPico Wi-Fi SMT Evaluation Board XPW100300K – Connectors and Jumpers _ 9 Figure 2-3 JP8, JP9, and JP17 Headers _______________________________________ 14 Figure 2-4 Evaluation Board Schematic for XPW100100K-01 and XPCW1002100K, Part 1 of 5 _____________________________________________ 18 Figure 2-5 Evaluation Board Schematic for XPW100100K-01 and XPCW1002100K, Part 2 of 5 _____________________________________________ 19... -
Page 6: 1: Introduction
Introduction About this Guide This guide provides the information needed to use the Lantronix® xPico® embedded device server with the evaluation kit. The intended audience is the engineers responsible for integrating the xPico and xPico Wi-Fi into their product. In this document, “xPico” refers to all xPico Ethernet only modules, “xPico Wi-Fi”... -
Page 7: 2: Evaluation Kit
U.FL cable Evaluation Board Description The xPico Wi-Fi evaluation board provides a test platform for the Lantronix xPico device server products. The evaluation board uses either 5V power from a USB device port connector or power supplied to the Ethernet connector via PoE (XPW100100K-01 only). The evaluation board also provides a header for connection to a 2.2V to 5.5V external source, such as a... -
Page 8: Figure 2-1 Xpico Wi-Fi Evaluation Board Xpw100100K-01 Connectors And Jumpers
2: Evaluation Kit USB device port. (Currently available on xPico Wi-Fi only) LEDs for the xPico Ethernet, WLAN, and System status outputs along with two additional LEDs that can be driven via jumper wire are provided. Access to all logic level IO signals on the xPico via header pins for measurements and connections to other places. -
Page 9: Figure 2-2 Xpico Wi-Fi Smt Evaluation Board Xpw100300K - Connectors And Jumpers
2: Evaluation Kit Figure 2-2 xPico Wi-Fi SMT Evaluation Board XPW100300K – Connectors and Jumpers Table 2-2 Evaluation Board Connectors, Header and Switches Ref Des. Connector/Header Function xPico Module Socket 40 pin socket for xPico module or SMT carrier board. XPW100100K-01 and XPCW1002100K only. - Page 10 2: Evaluation Kit Ref Des. Connector/Header Function Module Power Jumper Allows for voltage measurement of the xPico module current sense resistor. The current sense resistor is 0.301 ohms. Default Button Jumper Allows access to module reset to default signal and SW1 push button. Install to use SW1 as reset to default button.
-
Page 11: Serial Port 1 Rs232/Rs485 And Serial Port 2 Rs232 Interface
2: Evaluation Kit Ref Des. Connector/Header Function JP18 Serial Port 2 Signal Header Provides access to the module second serial port. The signals on this header have been buffered by an RS232 transceiver. JP19 External Power Header Provides connection point for an external 2.2V to 5.5V power source, such as a battery. This is connected to a 3.3V step up/down regulator that will power the evaluation board and module circuitry. -
Page 12: Table 2-4 Rs-422 4-Wire Signals On J3 Serial Port
2: Evaluation Kit Table 2-4 RS-422 4-Wire Signals on J3 Serial Port xPico Evaluation Board PIN FUNCTION SERIAL PORTS Pin # TX- (Data Out) RX+ (Data In) TX+ (Data Out) RX- (Data In) GND (Ground) Table 2-5 RS-485 2-Wire Signals on J3 Serial Ports xPico Evaluation Board PIN FUNCTION SERIAL PORTS Pin #... -
Page 13: Table 2-8 Jp17 Serial Port 1 Flow Control Break Out Header
2: Evaluation Kit All of the xPico module serial port signals can be used as configurable pins. Jumper headers JP17, JP8 and JP9 have been included to allow for each of the serial port signals to be connected or disconnected from the serial port transceiver. The tables below list the JP17, JP8, and JP9 serial port signal connections. -
Page 14: Antenna Port
2: Evaluation Kit Figure 2-3 JP8, JP9, and JP17 Headers Antenna Port The xPico evaluation boards (XPW100100K-01 and XPCW1002100K ) includes a bracket for mounting the U.FL to Reverse Polarity SMA RF cable included with the kit. Follow the procedure below when installing the antenna cable. The same procedure applies when using the PCB strip antenna, with the exception that the swivel antenna does not need to be connected to the RF cable. -
Page 15: Power Supply
2: Evaluation Kit Ethernet Port The xPico evaluation board XPW100100K-01 includes one RJ45 with on-board magnetics for connection to the xPico module 10/100Mbps Ethernet interface. Connector J2 is the Ethernet port. Note: The Ethernet port is functional for xPico Ethernet modules only. Power Supply The evaluation board provides several options for input power. -
Page 16: Leds
2: Evaluation Kit LEDs The xPico evaluation board includes several LEDs for signal and unit status. The table below lists all of the LEDs and their functions. Table 2-11 LEDs Signals J1 Pin LED Ref Color LED Function Design LED1 Orange xPico Status LED blinks with patterns indicating module status. -
Page 17: Additional Headers
2: Evaluation Kit Table 2-12 JP6 LED Header Connections (XPW100100K-01 and XPCW1002100K) Jumper Position Description Pins 1 to 2 Install to connect module Ethernet link/WLAN status signal to LED2 Pins 3 to 4 Install to connect module Ethernet Speed signal to LED3 Pins 5 to 6 Install to connect module Ethernet Activity signal to LED4 Pins 7 to 8... -
Page 18: Evaluation Board Schematic (Xpw100100K-01 And Xpcw1002100K)
2: Evaluation Kit Evaluation Board Schematic (XPW100100K-01 and XPCW1002100K) Figure 2-4 Evaluation Board Schematic for XPW100100K-01 and XPCW1002100K, Part 1 of 5 xPico® Wi-Fi® Embedded Device Server Evaluation Kit User Guide... -
Page 19: Figure 2-5 Evaluation Board Schematic For Xpw100100K-01
2: Evaluation Kit Figure 2-5 Evaluation Board Schematic for XPW100100K-01 and XPCW1002100K, Part 2 of 5 xPico® Wi-Fi® Embedded Device Server Evaluation Kit User Guide... -
Page 20: Figure 2-6 Evaluation Board Schematic For Xpw100100K-01
2: Evaluation Kit Figure 2-6 Evaluation Board Schematic for XPW100100K-01 and XPCW1002100K, Part 3 of 5 xPico® Wi-Fi® Embedded Device Server Evaluation Kit User Guide... -
Page 21: Figure 2-7 Evaluation Board Schematic For Xpw100100K-01
2: Evaluation Kit Figure 2-7 Evaluation Board Schematic for XPW100100K-01 and XPCW1002100K, Part 4 of 5 xPico® Wi-Fi® Embedded Device Server Evaluation Kit User Guide... -
Page 22: Figure 2-8 Evaluation Board Schematic For Xpw100100K-01
2: Evaluation Kit Figure 2-8 Evaluation Board Schematic for XPW100100K-01 and XPCW1002100K, Part 5 of 5 xPico® Wi-Fi® Embedded Device Server Evaluation Kit User Guide... -
Page 23: Evaluation Board Schematic (Xpcw1003100K)
2: Evaluation Kit Evaluation Board Schematic (XPCW1003100K) Figure 2-9 Evaluation Board Schematic for XPCW1003100K, Part 1 of 7 xPico® Wi-Fi® Embedded Device Server Evaluation Kit User Guide... -
Page 24: Figure 2-10 Evaluation Board Schematic For Xpcw1003100K, Part 2 Of 7
2: Evaluation Kit Figure 2-10 Evaluation Board Schematic for XPCW1003100K, Part 2 of 7 xPico® Wi-Fi® Embedded Device Server Evaluation Kit User Guide... -
Page 25: Figure 2-11 Evaluation Board Schematic For Xpcw1003100K, Part 3 Of 7
2: Evaluation Kit Figure 2-11 Evaluation Board Schematic for XPCW1003100K, Part 3 of 7 xPico® Wi-Fi® Embedded Device Server Evaluation Kit User Guide... -
Page 26: Figure 2-12 Evaluation Board Schematic For Xpcw1003100K, Part 4 Of 7
2: Evaluation Kit Figure 2-12 Evaluation Board Schematic for XPCW1003100K, Part 4 of 7 xPico® Wi-Fi® Embedded Device Server Evaluation Kit User Guide... -
Page 27: Figure 2-13 Evaluation Board Schematic For Xpcw1003100K, Part 5 Of 7
2: Evaluation Kit Figure 2-13 Evaluation Board Schematic for XPCW1003100K, Part 5 of 7 xPico® Wi-Fi® Embedded Device Server Evaluation Kit User Guide... -
Page 28: Figure 2-14 Evaluation Board Schematic For Xpcw1003100K, Part 6 Of 7
2: Evaluation Kit Figure 2-14 Evaluation Board Schematic for XPCW1003100K, Part 6 of 7 xPico® Wi-Fi® Embedded Device Server Evaluation Kit User Guide... -
Page 29: Figure 2-15 Evaluation Board Schematic For Xpcw1003100K, Part 7 Of 7
2: Evaluation Kit Figure 2-15 Evaluation Board Schematic for XPCW1003100K, Part 7 of 7 xPico® Wi-Fi® Embedded Device Server Evaluation Kit User Guide...
